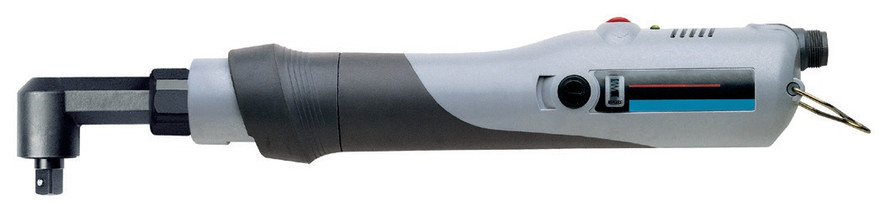

Built for controlled fastening in light-duty precision assembly, the Ingersoll Rand EL1510N1S5 VersaTec High-Torque Angle Electric Screwdriver combines a compact angle-head configuration with an adjustable 5–15 in-lbs torque range. The right-angle output provides access around components and inside close-quarter assemblies where a conventional inline screwdriver may be difficult to position, while the adjustable shut-off clutch automatically stops the fastening cycle when the preset torque is reached to support repeatable results.
A 950 RPM operating speed supports efficient screw rundown without sacrificing the control required for low-torque fastening. Lever-start actuation allows the operator to begin each cycle from the tool grip, and the angle head can rotate through 360 degrees so its position can be adjusted around the workpiece. Operating from 115V AC power, this VersaTec screwdriver is suited to workstations assembling electronics, appliances, automotive components, instruments, and other products with confined fastening locations.
Type: Angle Electric Screwdriver | Series: VersaTec | Model: EL1510N1S5 | Start Type: Lever Start | Clutch Type: Adjustable Shut-Off Clutch | Torque Range: 5–15 in-lbs | Torque Range: 0.6–1.7 Nm | Speed: 950 RPM | Input Voltage: 115V AC | Weight: 2.0 lb (0.91 kg)
|
Features:
|
|
Applications:
- Electronics assembly — installing controlled-torque fasteners in enclosures, control assemblies, instruments, and electrical components.
- Appliance manufacturing — fastening panels, brackets, controls, and internal components at repeatable torque settings.
- Automotive component assembly — completing low-torque fastening around dashboards, interior trim, switches, and compact subassemblies.
- Light manufacturing — repetitive screw installation at production benches and dedicated assembly stations.
- Close-quarter assembly — reaching screws located near walls, inside housings, or behind adjacent components where an inline tool cannot be positioned comfortably.
FAQs:
- Q: What does the adjustable shut-off clutch do?
A: The clutch automatically shuts the screwdriver off when the selected torque is reached. This helps reduce over-tightening and improves fastening consistency across repeated assembly cycles. - Q: What is the torque range of the EL1510N1S5?
A: The screwdriver has an adjustable torque range of 5–15 in-lbs, equivalent to approximately 0.6–1.7 Nm. The required setting should be verified against the fastener, joint, and assembly specification. - Q: Why choose an angle screwdriver instead of an inline model?
A: An angle screwdriver positions the output at 90 degrees to the tool body, allowing it to reach fasteners beside components and inside confined assemblies. The rotating angle head also lets the operator adjust the head position around surrounding obstructions. - Q: Can this screwdriver remove fasteners?
A: Yes. The EL1510N1S5 provides forward and reverse operation for fastener installation and removal. - Q: Is this a pneumatic screwdriver?
A: No. This is a 115V AC electric assembly screwdriver, so it does not require a compressed-air supply or an FRL system.
| SKU | V | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|
| LEVER START LARGE ANGLE HEAD | ||||||||
| EL1510N2S5 | 115 V AC | 8 – 23 (0.9 – 2.6) | 650 | 2.20 (1.00) | 17.64" (448) | 0.52" (13.21) | 1.73" (43.94) | 1/4" |
| EL2612N2S5 | 115 V AC | 17 – 40 (1.9 – 4.5) | 800 | 2.20 (1.00) | 17.64" (448) | 0.52" (13.21) | 1.73" (43.94) | 1/4" |
| ET4007N2S5 | 115 V AC | 27 – 60 (3.0 – 6.8) | 450 | 2.20 (1.00) | 17.64" (448) | 0.52" (13.21) | 1.73" (43.94) | 1/4" |
| EL1510N2S3 | 115 V AC | 8 – 23 (0.9 – 2.6) | 650 | 2.20 (1.00) | 17.64" (448) | 0.52" (13.21) | 1.73" (43.94) | 1/4" |
| EL2612N2S3 | 115 V AC | 17 – 40 (1.9 – 4.5) | 800 | 2.20 (1.00) | 17.64" (448) | 0.52" (13.21) | 1.73" (43.94) | 1/4" |
| ET4007N2S3 | 115 V AC | 27 – 60 (3.0 – 6.8) | 450 | 2.20 (1.00) | 17.64" (448) | 0.52" (13.21) | 1.73" (43.94) | 1/4" |
| LEVER START SMALL ANGLE HEAD | ||||||||
| EL1520N1S5* | 115 V AC | 5 – 15 (0.6 – 1.7) | 1,850 | 2.00 (0.91) | 17.45" (443) | 0.33" (8.38) | 1.47" (37.34) | 1/4" |
| EL1510N1S5* | 115 V AC | 5 – 15 (0.6 – 1.7) | 950 | 2.00 (0.91) | 17.45" (443) | 0.33" (8.38) | 1.47" (37.34) | 1/4" |
| EL2612N1S5* | 115 V AC | 11 – 26 (1.2 – 2.9) | 1,100 | 2.00 (0.91) | 17.45" (443) | 0.33" (8.38) | 1.47" (37.34) | 1/4" |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210
