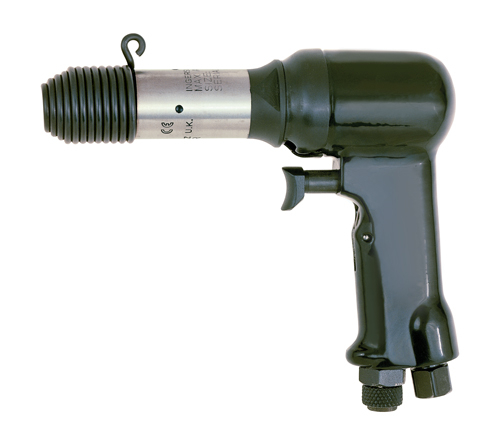

Engineered for demanding aerospace and industrial riveting applications, the Ingersoll Rand AVC26A1 industrial air riveter combines an AVC Series design with a 0.8" bore, 1,120 blows per minute (BPM), and a 6" piston stroke to deliver powerful, controlled impact performance for installing solid rivets. Featuring an offset handle, this pneumatic riveter improves operator access and control when working on large structural assemblies or in confined work areas.
Designed for continuous-duty production environments, the AVC26A1 utilizes a long piston stroke to generate substantial impact energy for heavy-duty riveting applications. Its offset handle configuration enhances maneuverability while maintaining proper alignment during rivet installation, making it well suited for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial fabrication where consistent riveting performance is essential.
Type: Industrial Aerospace Air Riveter | Series: AVC Series | Bore: 0.8 in. | Blows Per Minute: 1,120 BPM | Piston Stroke: 6 in. | Handle Style: Offset Handle
Features:
- Designed for industrial and aerospace riveting applications requiring dependable pneumatic performance.
- 0.8-inch bore and extended 6-inch piston stroke generate substantial impact energy for demanding riveting operations.
- 1,120 blows per minute provide controlled striking performance for heavy-duty rivet installation.
- Offset handle configuration improves accessibility and operator control around structural assemblies.
- Pneumatic operation supports continuous-duty manufacturing and assembly environments.
- Engineered to provide repeatable riveting performance in quality-sensitive production applications.
- Durable construction is designed for demanding industrial and aerospace manufacturing environments.
Applications:
- Aerospace manufacturing and aircraft structural assembly.
- Aircraft maintenance, repair, and overhaul (MRO) operations.
- Heavy industrial fabrication and structural assembly.
- Transportation equipment manufacturing and repair.
- Production riveting applications requiring high-impact pneumatic performance.
FAQs:
- Q: What is the benefit of the 6-inch piston stroke?
A: The extended piston stroke helps generate greater impact energy, making the tool well suited for demanding solid rivet installation in structural assembly applications. - Q: Why does the AVC26A1 operate at 1,120 BPM?
A: The lower blow rate, combined with the long piston stroke, provides controlled, high-impact striking performance for heavy-duty riveting applications. - Q: What advantage does the offset handle provide?
A: The offset handle improves accessibility and operator control when riveting in confined areas or around structural components. - Q: What industries commonly use the AVC26A1?
A: It is designed for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial fabrication where reliable pneumatic riveting performance is required.
| SKU | Aluminum | Dural & soft iron | Length | Weight | Stroke | Bore | Blows per min. | Rivet set shank | Air consumption |
|---|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | lb (kg) | in (mm) | in (mm) | in | cfm (L/min) | ||
| AVC SERIES - TRIGGER START | |||||||||
| AVC10A1 | 1/8" (3) | 1/8" (3) | 6.0" (152) | 2.2 (1.0) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC10C1 | 1/8" (3) | 1/8" (3) | 6.8" (172) | 2.1 (0.9) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC12A1 | 3/16" (5) | 3/16" (5) | 7.8" (197) | 3.4 (1.5) | 3.0" (76) | 0.6" (14) | 2100 | 0.401" | 13 (360) |
| AVC13A1 | 1/4" (6) | 1/4" (6) | 8.8" (222) | 3.7 (1.7) | 4.0" (101) | 0.6" (14) | 1725 | 0.401" | 13 (360) |
| AVC26A1* | 3/8" (10) | 5/16" (8) | 11.3" (287) | 5.1 (2.3) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| AVC26B1* | 3/8" (10) | 5/16" (8) | 14" (354) | 7.0 (3.2) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| 772 SERIES | |||||||||
| 772 | - | - | 7.38" (187) | 3.6 (1.6) | 2.3" (57) | 0.75" (19) | 3,000 | 0.401" | 15 (425) |
Looking for more information about the Ingersoll Rand Air Riveter? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Air Riveters for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Air Riveter
- Series
- AVC Series
- Bore (in.)
- 0.8
- Stroke (in.)
- 6
- Max Air Consumption (CFM)
- 14
- Max Air Consumption (l/mn.)
- 396
- Mandrel Size (in.)
- 0.498
- Sound Level (dBA)
- 95
- Air Inlet
- 1/4" NPT
- Min Hose Size (in.)
- 1/2
- Blows Per Minute (BPM)
- 1120
- Handle Type
- Offset Handle
- Actuation
- Trigger
- Retainer Type
- Spring Beehive
- Shank Type
- Round
