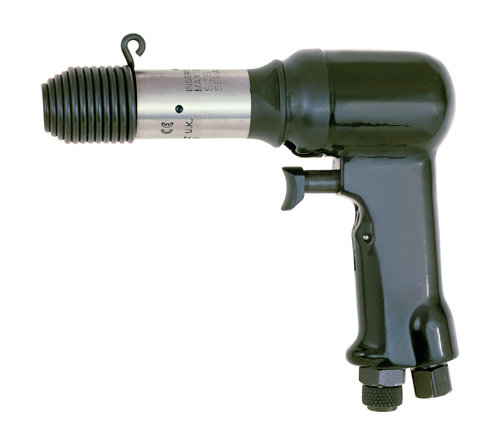

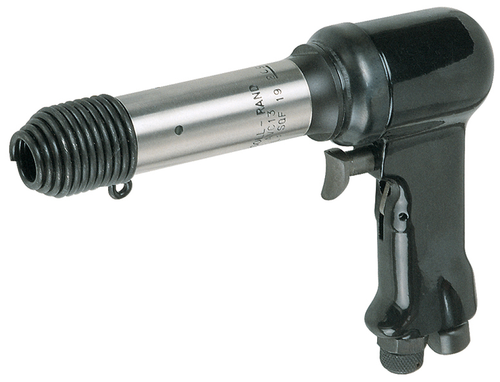

Designed for demanding aerospace and industrial riveting applications, the Ingersoll Rand AVC10A1 industrial air riveter combines an AVC Series design with a 0.6" bore, 3,200 blows per minute (BPM), and a 1.9" piston stroke to deliver consistent impact performance for solid rivet installation. Featuring an offset handle, this pneumatic riveter provides improved access and operator control when working in confined spaces or around structural assemblies.
Built for continuous-duty production environments, the AVC10A1 is engineered to support precision riveting operations where repeatable performance and operator comfort are essential. Its offset handle configuration enhances maneuverability while maintaining alignment during rivet installation, making it well suited for aerospace manufacturing, aircraft maintenance, transportation equipment production, and other industrial assembly applications.
Type: Industrial Aerospace Air Riveter | Series: AVC Series | Bore: 0.6 in. | Blows Per Minute: 3,200 BPM | Piston Stroke: 1.9 in. | Handle Style: Offset Handle
Features:
- Designed for industrial and aerospace riveting applications requiring dependable pneumatic performance.
- 0.6-inch bore and 1.9-inch piston stroke provide consistent impact energy for rivet installation.
- 3,200 blows per minute support efficient production and repetitive riveting operations.
- Offset handle configuration improves accessibility and operator control in confined work areas.
- Pneumatic operation is suitable for continuous-duty manufacturing and assembly environments.
- Engineered for repeatable riveting performance in quality-sensitive production applications.
- Durable construction supports demanding industrial and aerospace assembly operations.
Applications:
- Aerospace manufacturing and aircraft structural assembly.
- Aircraft maintenance, repair, and overhaul (MRO) operations.
- Transportation equipment and vehicle manufacturing.
- Industrial sheet metal fabrication and assembly.
- Production riveting applications requiring controlled pneumatic impact performance.
FAQs:
- Q: What is the advantage of the offset handle design?
A: The offset handle improves accessibility and operator control when installing rivets in confined spaces or around structural components. - Q: What types of applications is the AVC10A1 designed for?
A: It is intended for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial assembly applications requiring pneumatic riveting. - Q: Why does this riveter operate at 3,200 BPM?
A: The high blow rate helps provide efficient, consistent impact performance for repetitive riveting operations in production environments. - Q: What is the benefit of the 1.9-inch piston stroke?
A: The piston stroke works with the tool's bore and impact mechanism to deliver consistent striking performance for solid rivet installation.
| SKU | Aluminum | Dural & soft iron | Length | Weight | Stroke | Bore | Blows per min. | Rivet set shank | Air consumption |
|---|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | lb (kg) | in (mm) | in (mm) | in | cfm (L/min) | ||
| AVC SERIES - TRIGGER START | |||||||||
| AVC10A1 | 1/8" (3) | 1/8" (3) | 6.0" (152) | 2.2 (1.0) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC10C1 | 1/8" (3) | 1/8" (3) | 6.8" (172) | 2.1 (0.9) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC12A1 | 3/16" (5) | 3/16" (5) | 7.8" (197) | 3.4 (1.5) | 3.0" (76) | 0.6" (14) | 2100 | 0.401" | 13 (360) |
| AVC13A1 | 1/4" (6) | 1/4" (6) | 8.8" (222) | 3.7 (1.7) | 4.0" (101) | 0.6" (14) | 1725 | 0.401" | 13 (360) |
| AVC26A1* | 3/8" (10) | 5/16" (8) | 11.3" (287) | 5.1 (2.3) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| AVC26B1* | 3/8" (10) | 5/16" (8) | 14" (354) | 7.0 (3.2) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| 772 SERIES | |||||||||
| 772 | - | - | 7.38" (187) | 3.6 (1.6) | 2.3" (57) | 0.75" (19) | 3,000 | 0.401" | 15 (425) |
Looking for more information about the Ingersoll Rand Air Riveter? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Air Riveters for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Air Riveter
- Series
- AVC Series
- Bore (in.)
- 0.6
- Stroke (in.)
- 1.9
- Max Air Consumption (CFM)
- 12
- Max Air Consumption (l/mn.)
- 340
- Mandrel Size (in.)
- 0.401
- Sound Level (dBA)
- 95
- Air Inlet
- 1/4" NPT
- Min Hose Size (in.)
- 5/16
- Blows Per Minute (BPM)
- 3200
- Handle Type
- Offset Handle
- Retainer Type
- Spring Beehive
- Shank Type
- Round
