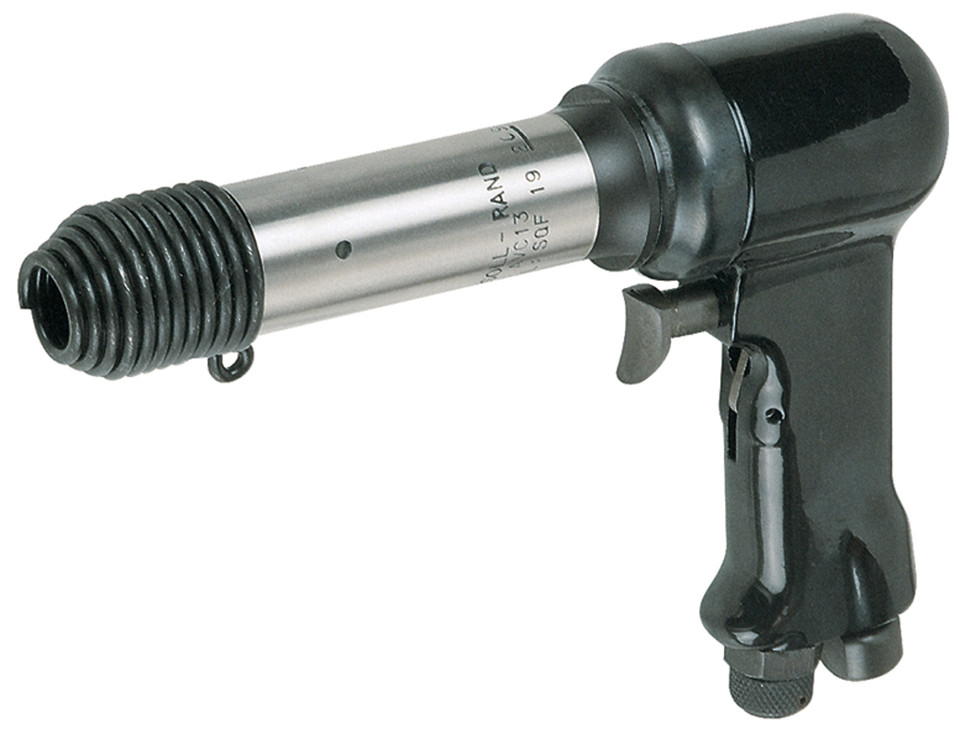

Designed for demanding aerospace and industrial riveting applications, the Ingersoll Rand AVC13A1 industrial air riveter combines an AVC Series design with a 0.6" bore, 1,725 blows per minute (BPM), and a 4" piston stroke to deliver controlled, high-impact performance for installing solid rivets. Featuring an offset handle, this pneumatic riveter provides improved accessibility and operator control when working around structural assemblies and in confined workspaces.
Built for continuous-duty manufacturing environments, the AVC13A1 offers an excellent balance of impact energy and control for medium- to heavy-duty riveting applications. Its longer piston stroke generates greater striking force than shorter-stroke models while maintaining dependable pneumatic performance, making it well suited for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial fabrication where consistent rivet installation is essential.
Type: Industrial Aerospace Air Riveter | Series: AVC Series | Bore: 0.6 in. | Blows Per Minute: 1,725 BPM | Piston Stroke: 4 in. | Handle Style: Offset Handle
Features:
- Designed for industrial and aerospace riveting applications requiring dependable pneumatic performance.
- 0.6-inch bore and 4-inch piston stroke provide increased impact energy for demanding solid rivet installation.
- 1,725 blows per minute deliver controlled striking performance for consistent production riveting.
- Offset handle configuration improves accessibility and operator control around structural assemblies and confined work areas.
- Pneumatic operation supports continuous-duty manufacturing and assembly environments.
- Engineered for repeatable riveting performance in quality-sensitive production applications.
- Durable construction is designed for demanding aerospace and industrial assembly operations.
Applications:
- Aerospace manufacturing and aircraft structural assembly.
- Aircraft maintenance, repair, and overhaul (MRO) operations.
- Transportation equipment manufacturing and structural assembly.
- Industrial sheet metal fabrication and production assembly.
- Precision riveting applications requiring controlled pneumatic impact performance.
FAQs:
- Q: What is the benefit of the 4-inch piston stroke?
A: The longer piston stroke delivers greater impact energy than shorter-stroke models, making it suitable for more demanding solid rivet installation while maintaining controlled operation. - Q: Why does the AVC13A1 operate at 1,725 BPM?
A: The lower blow rate, combined with the longer piston stroke, provides controlled, consistent impact performance for industrial and aerospace riveting applications. - Q: What advantage does the offset handle provide?
A: The offset handle improves accessibility and operator control when riveting in confined areas or around structural components. - Q: What industries commonly use the AVC13A1?
A: It is designed for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial fabrication where dependable pneumatic riveting performance is required.
| SKU | Aluminum | Dural & soft iron | Length | Weight | Stroke | Bore | Blows per min. | Rivet set shank | Air consumption |
|---|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | lb (kg) | in (mm) | in (mm) | in | cfm (L/min) | ||
| AVC SERIES - TRIGGER START | |||||||||
| AVC10A1 | 1/8" (3) | 1/8" (3) | 6.0" (152) | 2.2 (1.0) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC10C1 | 1/8" (3) | 1/8" (3) | 6.8" (172) | 2.1 (0.9) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC12A1 | 3/16" (5) | 3/16" (5) | 7.8" (197) | 3.4 (1.5) | 3.0" (76) | 0.6" (14) | 2100 | 0.401" | 13 (360) |
| AVC13A1 | 1/4" (6) | 1/4" (6) | 8.8" (222) | 3.7 (1.7) | 4.0" (101) | 0.6" (14) | 1725 | 0.401" | 13 (360) |
| AVC26A1* | 3/8" (10) | 5/16" (8) | 11.3" (287) | 5.1 (2.3) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| AVC26B1* | 3/8" (10) | 5/16" (8) | 14" (354) | 7.0 (3.2) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| 772 SERIES | |||||||||
| 772 | - | - | 7.38" (187) | 3.6 (1.6) | 2.3" (57) | 0.75" (19) | 3,000 | 0.401" | 15 (425) |
Looking for more information about the Ingersoll Rand Air Riveter? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Air Riveters for your assembly application, call (800) 608-5210 or email info@intlairtool.com
