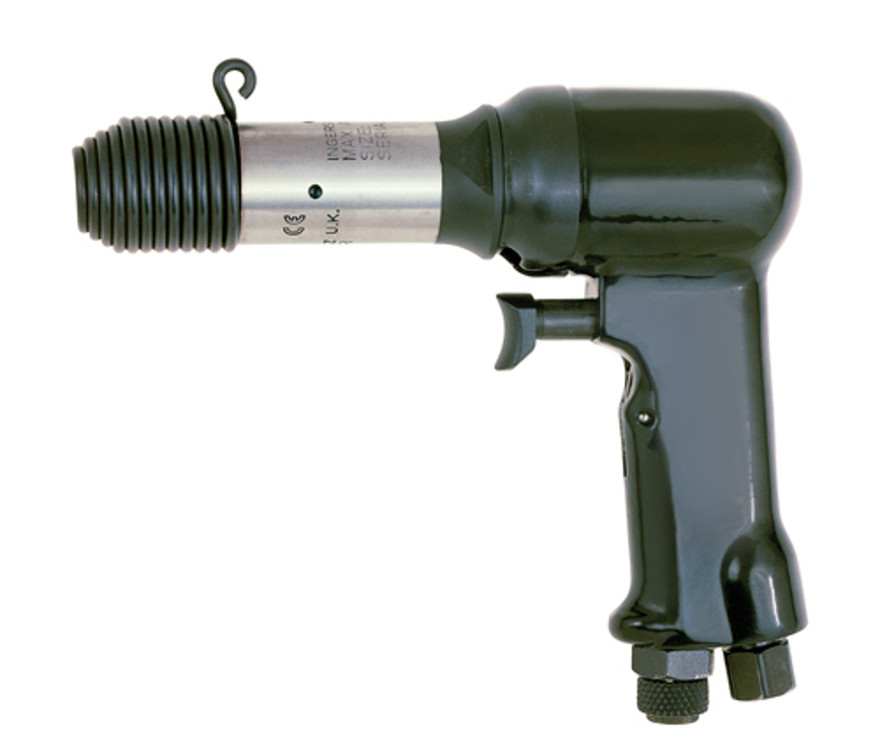

Designed for demanding aerospace and industrial riveting applications, the Ingersoll Rand AVC12A1 industrial air riveter combines an AVC Series design with a 0.6" bore, 2,100 blows per minute (BPM), and a 3" piston stroke to deliver consistent impact performance for installing solid rivets. Featuring an offset handle, this pneumatic riveter provides enhanced accessibility and operator control when working in confined spaces and around structural assemblies.
Built for continuous-duty manufacturing environments, the AVC12A1 offers a balanced combination of impact energy and operating speed for precision riveting applications. Its offset handle configuration improves maneuverability while helping maintain proper alignment during rivet installation, making it well suited for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial fabrication where repeatable riveting performance is essential.
Type: Industrial Aerospace Air Riveter | Series: AVC Series | Bore: 0.6 in. | Blows Per Minute: 2,100 BPM | Piston Stroke: 3 in. | Handle Style: Offset Handle
Features:
- Designed for industrial and aerospace riveting applications requiring dependable pneumatic performance.
- 0.6-inch bore and 3-inch piston stroke provide controlled impact energy for solid rivet installation.
- 2,100 blows per minute support efficient production while maintaining consistent riveting performance.
- Offset handle configuration improves accessibility and operator control around structural assemblies and confined work areas.
- Pneumatic operation is suitable for continuous-duty manufacturing and assembly environments.
- Engineered for repeatable riveting performance in quality-sensitive production applications.
- Durable construction supports demanding aerospace and industrial assembly operations.
Applications:
- Aerospace manufacturing and aircraft structural assembly.
- Aircraft maintenance, repair, and overhaul (MRO) operations.
- Transportation equipment manufacturing and structural assembly.
- Industrial sheet metal fabrication and production assembly.
- Precision riveting applications requiring consistent pneumatic impact performance.
FAQs:
- Q: What is the benefit of the 3-inch piston stroke?
A: The 3-inch piston stroke provides a balanced combination of impact energy and control for consistent solid rivet installation in industrial and aerospace applications. - Q: Why does the AVC12A1 operate at 2,100 BPM?
A: The 2,100 BPM blow rate delivers efficient riveting performance while maintaining controlled impact for repetitive production applications. - Q: What advantage does the offset handle provide?
A: The offset handle improves accessibility and operator control when installing rivets in confined spaces or around structural components. - Q: What industries commonly use the AVC12A1?
A: It is designed for aerospace manufacturing, aircraft maintenance, transportation equipment production, and industrial fabrication where dependable pneumatic riveting performance is required.
| SKU | Aluminum | Dural & soft iron | Length | Weight | Stroke | Bore | Blows per min. | Rivet set shank | Air consumption |
|---|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | lb (kg) | in (mm) | in (mm) | in | cfm (L/min) | ||
| AVC SERIES - TRIGGER START | |||||||||
| AVC10A1 | 1/8" (3) | 1/8" (3) | 6.0" (152) | 2.2 (1.0) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC10C1 | 1/8" (3) | 1/8" (3) | 6.8" (172) | 2.1 (0.9) | 1.9" (48) | 0.6" (14) | 3200 | 0.401" | 12 (340) |
| AVC12A1 | 3/16" (5) | 3/16" (5) | 7.8" (197) | 3.4 (1.5) | 3.0" (76) | 0.6" (14) | 2100 | 0.401" | 13 (360) |
| AVC13A1 | 1/4" (6) | 1/4" (6) | 8.8" (222) | 3.7 (1.7) | 4.0" (101) | 0.6" (14) | 1725 | 0.401" | 13 (360) |
| AVC26A1* | 3/8" (10) | 5/16" (8) | 11.3" (287) | 5.1 (2.3) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| AVC26B1* | 3/8" (10) | 5/16" (8) | 14" (354) | 7.0 (3.2) | 6.0" (152) | 0.8" (19) | 1120 | 0.498" | 14 (396) |
| 772 SERIES | |||||||||
| 772 | - | - | 7.38" (187) | 3.6 (1.6) | 2.3" (57) | 0.75" (19) | 3,000 | 0.401" | 15 (425) |
Looking for more information about the Ingersoll Rand Air Riveter? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Air Riveters for your assembly application, call (800) 608-5210 or email info@intlairtool.com
