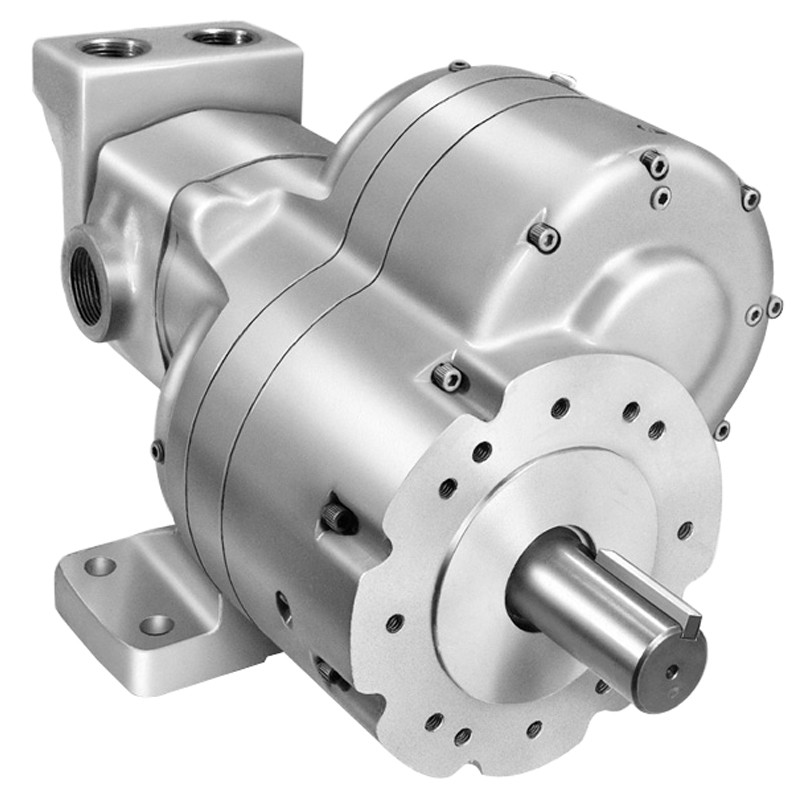

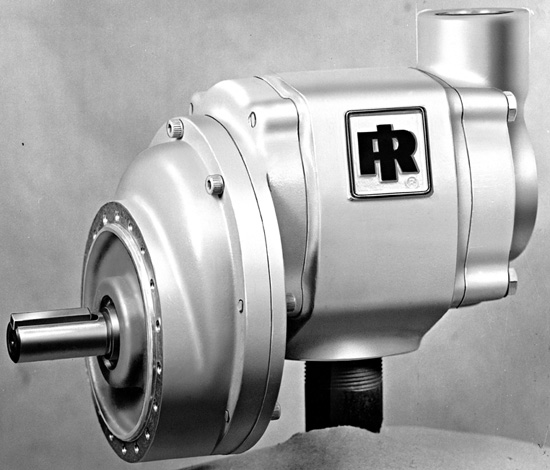

Ingersoll Rand 92RB078 Reversible Multi-Vane Air Motor | 7.9 HP | 120 RPM | 770 (ft-lbs) Starting Torque | 1,090 (ft-lbs) Stall Torque

Designed for demanding industrial equipment requiring extremely high-torque pneumatic rotary power, the Ingersoll Rand 92RB078 Reversible Multi-Vane Air Motor delivers 7.9 HP with a 120 RPM operating speed, 770 ft-lbs starting torque, and 1,090 ft-lbs stall torque. The reversible multi-vane design provides clockwise and counterclockwise rotation, making this air motor suitable for applications requiring very high torque output, controlled low-speed operation, directional flexibility, and dependable compressed-air-powered performance.

The 92RB078 air motor is engineered for industrial machinery, OEM equipment, and heavy-duty rotary applications where pneumatic power is preferred. Its low-speed, high-torque characteristics provide substantial turning force for demanding equipment such as pumps, mixers, conveyors, winches, and other industrial drive systems. Pneumatic operation allows speed adjustment through air regulation while maintaining reliable torque performance in applications requiring reversible operation and consistent power delivery.

Type: Reversible Multi-Vane Air Motor | Series: 92RB Series | Model: 92RB078 | Power: 7.9 HP | Speed: 120 RPM | Starting Torque: 770 ft-lbs | Stall Torque: 1,090 ft-lbs | Rotation: Reversible

Features:

• Reversible multi-vane design provides clockwise and counterclockwise rotation for equipment requiring directional flexibility.
• 7.9 HP output provides pneumatic power for demanding industrial machinery and rotary drive applications.
• Low-speed, high-torque performance supports applications requiring exceptional turning force and controlled rotation.
• Starting torque capability provides high initial force for beginning rotation under heavy load conditions.
• Stall torque capability provides available torque when the motor is temporarily prevented from rotating while operating.
• Variable speed control can be achieved by regulating compressed air supply to match application requirements.
• Pneumatic operation provides a reliable rotary power solution for industrial environments requiring air-driven equipment.

Made in USA:

Applications:

• Pumps and fluid handling equipment — providing pneumatic rotary drive power for systems requiring extremely high torque output.
• Mixers and agitators — operating industrial mixing equipment requiring slow, controlled rotation and substantial torque.
• Material handling equipment — powering winches, conveyors, and positioning systems requiring high-torque pneumatic drive.
• OEM machinery — integrating high-torque pneumatic motors into custom industrial equipment designs.

FAQs:

• Q: What does reversible operation mean on the 92RB078 air motor?
  A: Reversible operation allows the motor shaft to rotate in both directions, making it suitable for equipment requiring forward and reverse rotation.
• Q: What is the advantage of the 92RB078 compared with higher-speed air motors?
  A: The 92RB078 operates at a lower speed while providing significantly higher torque output, making it suitable for applications requiring maximum turning force.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the available torque when the motor begins rotating from rest, while stall torque is the torque available when the motor is stopped while operating under air pressure.
• Q: Can the speed of the 92RB078 be adjusted?
  A: Yes, air motor speed can typically be controlled by regulating compressed air flow to match application requirements.
