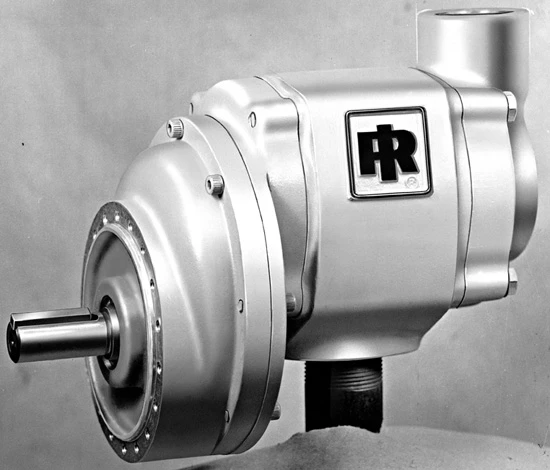

Ingersoll Rand 92RA022 Reversible Multi-Vane Air Motor | 8.15 HP | 435 RPM | 235 (ft-lbs) Starting Torque | 326 (ft-lbs) Stall Torque

Designed for demanding industrial equipment applications requiring powerful pneumatic rotary performance, the Ingersoll Rand 92RA022 Reversible Multi-Vane Air Motor delivers 8.15 HP with a 435 RPM operating speed, 235 ft-lbs starting torque, and 326 ft-lbs stall torque. The reversible multi-vane design provides clockwise and counterclockwise rotation, making this air motor suitable for applications requiring high torque output, controlled low-speed operation, directional flexibility, and dependable compressed-air-powered performance.

The 92RA022 air motor is engineered for industrial machinery, OEM equipment, and applications where pneumatic power is preferred. Its low-speed, high-torque characteristics provide increased turning force for demanding rotary applications such as pumps, mixers, conveyors, winches, and other industrial drive systems. Pneumatic operation allows speed adjustment through air regulation while maintaining reliable torque performance in applications requiring reversible operation and consistent power delivery.

Type: Reversible Multi-Vane Air Motor | Series: 92RA Series | Model: 92RA022 | Power: 8.15 HP | Speed: 435 RPM | Starting Torque: 235 ft-lbs | Stall Torque: 326 ft-lbs | Rotation: Reversible

Features:

• Reversible multi-vane design provides clockwise and counterclockwise rotation for equipment requiring directional flexibility.
• 8.15 HP output provides pneumatic power for demanding industrial machinery and rotary drive applications.
• Low-speed, high-torque performance supports applications requiring increased turning force and controlled rotation.
• Starting torque capability provides high initial force for beginning rotation under load conditions.
• Stall torque capability provides available torque when the motor is temporarily prevented from rotating while operating.
• Variable speed control can be achieved by regulating compressed air supply to match application requirements.
• Pneumatic operation provides a reliable rotary power solution for industrial environments requiring air-driven equipment.

Made in USA:

Applications:

• Pumps and fluid handling equipment — providing pneumatic rotary drive power for systems requiring high torque output.
• Mixers and agitators — operating industrial mixing equipment requiring slow, controlled rotation and high torque.
• Material handling equipment — powering winches, conveyors, and positioning systems requiring pneumatic drive.
• OEM machinery — integrating high-torque pneumatic motors into custom industrial equipment designs.

FAQs:

• Q: What does reversible operation mean on the 92RA022 air motor?
  A: Reversible operation allows the motor shaft to rotate in both directions, making it suitable for equipment requiring forward and reverse rotation.
• Q: What is the advantage of the 92RA022 compared with higher-speed air motors?
  A: The 92RA022 operates at a lower speed while providing higher torque output, making it suitable for applications requiring greater turning force.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the available torque when the motor begins rotating from rest, while stall torque is the torque available when the motor is stopped while operating under air pressure.
• Q: Can the speed of the 92RA022 be adjusted?
  A: Yes, air motor speed can typically be controlled by regulating compressed air flow to match application requirements.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
