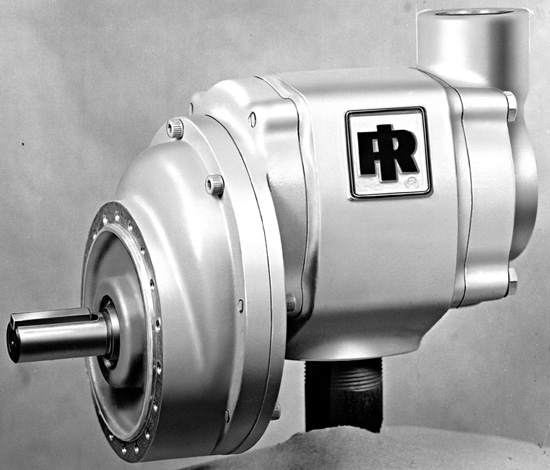

Ingersoll Rand 92RA011 Reversible Multi-Vane Air Motor | 8.15 HP | 852 RPM | 120 (ft-lbs) Starting Torque | 164.5 (ft-lbs) Stall Torque

Designed for industrial equipment requiring powerful pneumatic rotary performance, the Ingersoll Rand 92RA011 Reversible Multi-Vane Air Motor delivers 8.15 HP with an 852 RPM operating speed, 120 ft-lbs starting torque, and 164.5 ft-lbs stall torque. The reversible multi-vane design provides clockwise and counterclockwise rotation, making this air motor suitable for applications requiring dependable power output, directional flexibility, and controlled pneumatic operation.

The 92RA011 air motor is engineered for industrial machinery, OEM equipment, and applications where compressed air is preferred as the power source. With its combination of high horsepower, increased torque capability, and reversible operation, this model provides reliable rotary drive performance for equipment such as pumps, mixers, conveyors, winches, and other industrial systems requiring consistent pneumatic power.

Type: Reversible Multi-Vane Air Motor | Series: 92RA Series | Model: 92RA011 | Power: 8.15 HP | Speed: 852 RPM | Starting Torque: 120 ft-lbs | Stall Torque: 164.5 ft-lbs | Rotation: Reversible

Features:

• Reversible multi-vane design provides clockwise and counterclockwise rotation for equipment requiring directional flexibility.
• 8.15 HP output provides increased pneumatic power for demanding industrial rotary applications.
• Starting torque capability provides initial turning force required to start equipment under load conditions.
• Stall torque capability provides available torque when the motor is temporarily prevented from rotating while operating.
• Variable speed control can be achieved by regulating compressed air supply to match application requirements.
• Pneumatic operation provides a practical solution for industrial environments where air-powered equipment is preferred.
• Compact motor design allows integration into OEM machinery and custom industrial equipment systems.

Made in USA:

Applications:

• Industrial machinery — providing rotary pneumatic power for production equipment and mechanical drive systems.
• Pumps and fluid handling equipment — operating pneumatic-powered pump applications requiring reversible rotation.
• Mixers and agitators — driving industrial mixing equipment requiring controlled rotary motion.
• Material handling equipment — powering conveyors, winches, and positioning systems requiring pneumatic drive power.

FAQs:

• Q: What does reversible operation mean on the 92RA011 air motor?
  A: Reversible operation allows the motor shaft to rotate in both directions, making it suitable for equipment requiring forward and reverse rotation.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the available torque when the motor begins rotating from rest, while stall torque is the torque available when the motor is stopped while operating under air pressure.
• Q: How does the 92RA011 differ from the 92RA008 model?
  A: The 92RA011 operates at a lower speed while providing higher torque output, with 852 RPM, 120 ft-lbs starting torque, and 164.5 ft-lbs stall torque.
• Q: Can the speed of the 92RA011 be adjusted?
  A: Yes, air motor speed can typically be controlled by regulating compressed air flow to match application requirements.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
