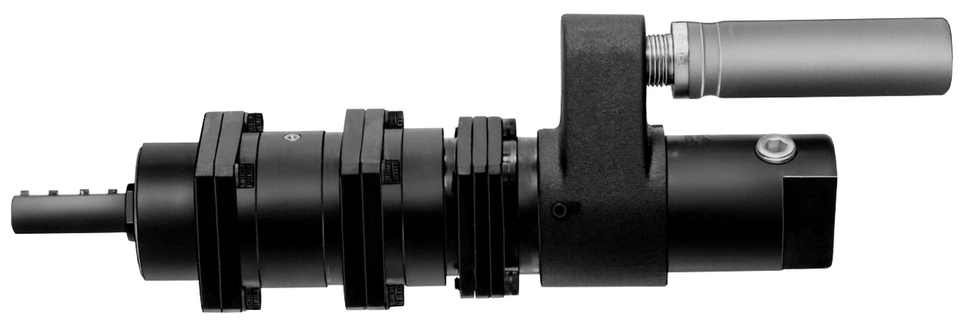

Ingersoll Rand 8226-7A Non-Reversible Air Power Motor is designed to deliver dependable low-speed pneumatic power for industrial applications requiring increased output torque and continuous operation in a single rotational direction. Rated at 0.60 HP, this air-powered motor operates at a free speed of 450 RPM and uses a double gear reduction to maximize torque while maintaining smooth, reliable pneumatic performance. Its non-reversible configuration makes it an excellent choice for OEM machinery, conveyors, material handling equipment, processing systems, and other industrial applications where high torque and controlled speed are essential.
The 8226-7A develops 26.00 ft-lbs of stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The double-gear-reduction design provides significant torque multiplication, making this model ideal for applications that require greater rotational force without increasing motor size.
Type: Air Power Motor | Model: 8226-7A | Rotation: Non-Reversible | Gear Reduction: Double | Power: 0.60 HP | Speed: 450 RPM | Stall Torque: 26.00 ft-lbs
Features:
- Air-powered motor converts compressed air into dependable rotary power for industrial machinery.
- Non-reversible configuration is intended for continuous one-direction operation.
- Double gear reduction provides increased torque multiplication for demanding low-speed applications.
- 0.60 HP output delivers reliable pneumatic performance for compatible industrial equipment.
- 450 RPM free speed is suitable for machinery requiring controlled rotation with substantial torque.
- 26.00 ft-lbs stall torque provides a manufacturer-published reference for evaluating maximum loading conditions.
- Compact geared construction supports installation in a wide variety of OEM and replacement applications.
Made in USA:
Applications:
- OEM machinery requiring high-torque pneumatic rotary power.
- Material handling, conveyor, and transfer systems.
- Industrial processing and packaging equipment.
- Manufacturing machinery operating in a single rotational direction.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 8226-7A reversible?
A: No. This model is manufactured as a non-reversible air power motor intended for continuous operation in one rotational direction. - Q: Why does this motor use double gear reduction?
A: Double gear reduction increases torque multiplication while lowering output speed, making the motor suitable for applications requiring higher rotational force. - Q: What is the rated operating speed?
A: The manufacturer specifies a free speed of 450 RPM. - Q: What does the 26.00 ft-lbs stall torque specification indicate?
A: Stall torque is the maximum torque produced when the output shaft is prevented from rotating. It is a performance reference and should not be considered a continuous operating torque. - Q: What should be confirmed before installing this motor?
A: Verify horsepower, operating speed, rotation direction, gear reduction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output at Max. Hp | ||||||||||
| lb-ft | Nm | lb-ft | Nm | SCFM | L/s | dB(A) | lbs | kg | |||||
| NON-REVERSIBLE - 0.60 HP | |||||||||||||
| 8226-6A | 1/2" Keyed | 700 | 350 | 17.20 | 23.3 | 9.00 | 12.2 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-7A | 1/2" Keyed | 450 | 225 | 26.00 | 35.2 | 13.70 | 18.6 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-8A | 1/2" Keyed | 375 | 185 | 32.00 | 43.4 | 17.00 | 23.0 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-10A | 1/2" Keyed | 170 | 87 | 60.00** | 88.1 | 36.00 | 48.8 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-11A** | 1/2" Keyed | 110 | 57 | 60.00** | 134.1 | 55.00 | 74.5 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-12A** | 1/2" Keyed | 90 | 45 | 60.00** | 165.3 | 60.00** | 94.8 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-13A** | 1/2" Keyed | 60 | 30 | 60.00** | 249.3 | 60.00** | 139.6 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-14A** | 1/2" Keyed | 50 | 25 | 60.00** | 306.2 | 60.00** | 169.4 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| REVERSIBLE - 0.50 HP | |||||||||||||
| 8228-2B | 1/2" Keyed | 3,200 | 1,550 | 2.90 | 3.9 | 1.70 | 2.3 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-3B | 1/2" Keyed | 2,600 | 1,300 | 3.50 | 4.7 | 2.00 | 2.7 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-5B | 1/2" Keyed | 800 | 420 | 11.20 | 15.2 | 6.30 | 8.5 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-6B | 1/2" Keyed | 650 | 330 | 13.80 | 18.7 | 8.00 | 10.8 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-7B | 1/2" Keyed | 425 | 220 | 20.00 | 27.1 | 12.00 | 16.3 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-8B | 1/2" Keyed | 350 | 185 | 25.00 | 33.9 | 14.00 | 19.0 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-9B | 1/2" Keyed | 200 | 105 | 45.00 | 61.0 | 25.00 | 33.9 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-10B | 1/2" Keyed | 160 | 80 | 55.00 | 74.5 | 33.00 | 44.7 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-11B** | 1/2" Keyed | 100 | 54 | 60.00** | 81.3 | 48.00 | 65.0 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-12B** | 1/2" Keyed | 85 | 43 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-13B** | 1/2" Keyed | 50 | 28 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-14B** | 1/2" Keyed | 40 | 22 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
Looking for more information about Ingersoll Rand Air Power Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Power Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
