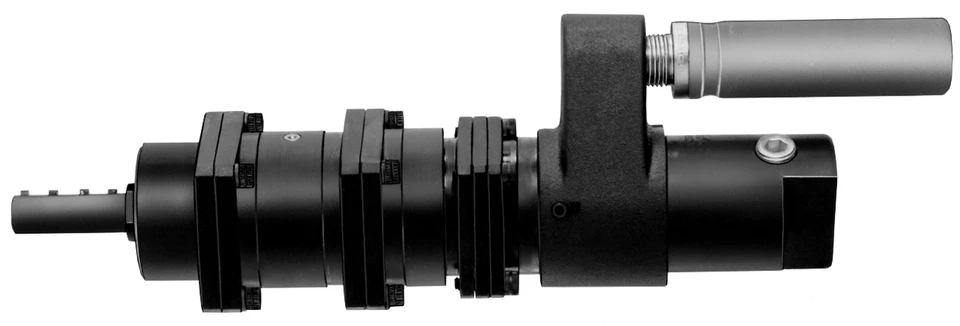

Ingersoll Rand 8226-12A Non-Reversible Air Power Motor is designed to deliver maximum pneumatic torque for industrial applications operating at extremely low speeds. Rated at 0.60 HP, this air power motor operates at a free speed of 90 RPM and features triple gear reduction, allowing it to produce substantial output torque while maintaining smooth, controlled operation. Its non-reversible configuration makes it well suited for heavy-duty OEM equipment, material handling systems, industrial conveyors, positioning mechanisms, and processing machinery that require continuous rotation in a single direction.
The 8226-12A develops 60.00 ft-lbs of stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The triple gear reduction system provides maximum torque multiplication, making this model an excellent choice for applications where extremely low operating speed and high rotational force are critical.
Type: Air Power Motor | Model: 8226-12A | Rotation: Non-Reversible | Gear Reduction: Triple | Power: 0.60 HP | Speed: 90 RPM | Stall Torque: 60.00 ft-lbs
Features:
- Air-powered motor converts compressed air into dependable rotary power for industrial machinery.
- Non-reversible configuration is designed for continuous operation in one rotational direction.
- Triple gear reduction maximizes output torque for demanding low-speed industrial applications.
- 0.60 HP output provides reliable pneumatic performance for compatible equipment.
- 90 RPM free speed is ideal for applications requiring precise, slow rotational movement with exceptionally high torque.
- 60.00 ft-lbs stall torque provides a manufacturer-published reference for evaluating maximum loading conditions.
- Compact geared construction supports installation in OEM machinery and industrial replacement applications.
Made in USA:
Applications:
- OEM machinery requiring maximum-torque pneumatic rotary power.
- Heavy-duty material handling and conveyor systems.
- Industrial processing and manufacturing equipment.
- Positioning and indexing systems requiring controlled low-speed operation.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 8226-12A reversible?
A: No. This model is manufactured as a non-reversible air power motor intended for continuous operation in one rotational direction. - Q: Why does this motor use triple gear reduction?
A: Triple gear reduction provides maximum torque multiplication while reducing output speed, making the motor suitable for applications requiring very high torque at extremely low RPM. - Q: What is the rated operating speed?
A: The manufacturer specifies a free speed of 90 RPM. - Q: What does the 60.00 ft-lbs stall torque specification indicate?
A: Stall torque is the maximum torque produced when the output shaft is prevented from rotating. It serves as a performance reference and should not be interpreted as a continuous operating torque. - Q: What should be verified before installing this motor?
A: Confirm horsepower, operating speed, rotation direction, gear reduction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output at Max. Hp | ||||||||||
| lb-ft | Nm | lb-ft | Nm | SCFM | L/s | dB(A) | lbs | kg | |||||
| NON-REVERSIBLE - 0.60 HP | |||||||||||||
| 8226-6A | 1/2" Keyed | 700 | 350 | 17.20 | 23.3 | 9.00 | 12.2 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-7A | 1/2" Keyed | 450 | 225 | 26.00 | 35.2 | 13.70 | 18.6 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-8A | 1/2" Keyed | 375 | 185 | 32.00 | 43.4 | 17.00 | 23.0 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-10A | 1/2" Keyed | 170 | 87 | 60.00** | 88.1 | 36.00 | 48.8 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-11A** | 1/2" Keyed | 110 | 57 | 60.00** | 134.1 | 55.00 | 74.5 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-12A** | 1/2" Keyed | 90 | 45 | 60.00** | 165.3 | 60.00** | 94.8 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-13A** | 1/2" Keyed | 60 | 30 | 60.00** | 249.3 | 60.00** | 139.6 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-14A** | 1/2" Keyed | 50 | 25 | 60.00** | 306.2 | 60.00** | 169.4 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| REVERSIBLE - 0.50 HP | |||||||||||||
| 8228-2B | 1/2" Keyed | 3,200 | 1,550 | 2.90 | 3.9 | 1.70 | 2.3 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-3B | 1/2" Keyed | 2,600 | 1,300 | 3.50 | 4.7 | 2.00 | 2.7 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-5B | 1/2" Keyed | 800 | 420 | 11.20 | 15.2 | 6.30 | 8.5 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-6B | 1/2" Keyed | 650 | 330 | 13.80 | 18.7 | 8.00 | 10.8 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-7B | 1/2" Keyed | 425 | 220 | 20.00 | 27.1 | 12.00 | 16.3 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-8B | 1/2" Keyed | 350 | 185 | 25.00 | 33.9 | 14.00 | 19.0 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-9B | 1/2" Keyed | 200 | 105 | 45.00 | 61.0 | 25.00 | 33.9 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-10B | 1/2" Keyed | 160 | 80 | 55.00 | 74.5 | 33.00 | 44.7 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-11B** | 1/2" Keyed | 100 | 54 | 60.00** | 81.3 | 48.00 | 65.0 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-12B** | 1/2" Keyed | 85 | 43 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-13B** | 1/2" Keyed | 50 | 28 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-14B** | 1/2" Keyed | 40 | 22 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
Looking for more information about Ingersoll Rand Air Power Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Power Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
