Ingersoll Rand 8226-13A Non-Reversible Air Power Motor is engineered to provide dependable pneumatic performance for industrial applications requiring extremely low operating speeds and maximum torque output. Rated at 0.60 HP, this air power motor operates at a free speed of 60 RPM and incorporates triple gear reduction to maximize torque multiplication while maintaining smooth, controlled operation. Its non-reversible configuration makes it well suited for heavy-duty OEM machinery, material handling systems, industrial conveyors, processing equipment, and positioning applications where continuous rotation in one direction is required.
The 8226-13A develops 60.00 ft-lbs of stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The triple gear reduction design is intended for applications that demand exceptional rotational force at very low operating speeds, making this model ideal for high-load industrial equipment.
Type: Air Power Motor | Model: 8226-13A | Rotation: Non-Reversible | Gear Reduction: Triple | Power: 0.60 HP | Speed: 60 RPM | Stall Torque: 60.00 ft-lbs
Features:
- Air-powered motor converts compressed air into dependable rotary power for industrial equipment.
- Non-reversible configuration is designed for continuous one-direction operation.
- Triple gear reduction maximizes torque multiplication for demanding low-speed industrial applications.
- 0.60 HP output provides reliable pneumatic performance for compatible machinery.
- 60 RPM free speed is ideal for equipment requiring extremely slow, controlled rotational movement.
- 60.00 ft-lbs stall torque provides a manufacturer-published reference for evaluating maximum loading conditions.
- Compact geared construction is suitable for OEM installations and industrial replacement applications.
Made in USA:
Applications:
- Heavy-duty OEM machinery requiring high-torque pneumatic rotary power.
- Material handling, conveyor, and transfer systems.
- Industrial processing and manufacturing equipment.
- Positioning and indexing mechanisms operating at very low speeds.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 8226-13A reversible?
A: No. This model is manufactured as a non-reversible air power motor intended for continuous operation in one rotational direction. - Q: What is the advantage of triple gear reduction?
A: Triple gear reduction provides maximum torque multiplication while significantly reducing output speed, making it ideal for applications requiring very high torque. - Q: What is the rated operating speed?
A: The manufacturer specifies a free speed of 60 RPM. - Q: What does the 60.00 ft-lbs stall torque specification indicate?
A: Stall torque is the maximum torque produced when the output shaft is prevented from rotating. It serves as a performance reference and should not be considered a continuous operating torque. - Q: What should be verified before installing this motor?
A: Confirm horsepower, operating speed, rotation direction, gear reduction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

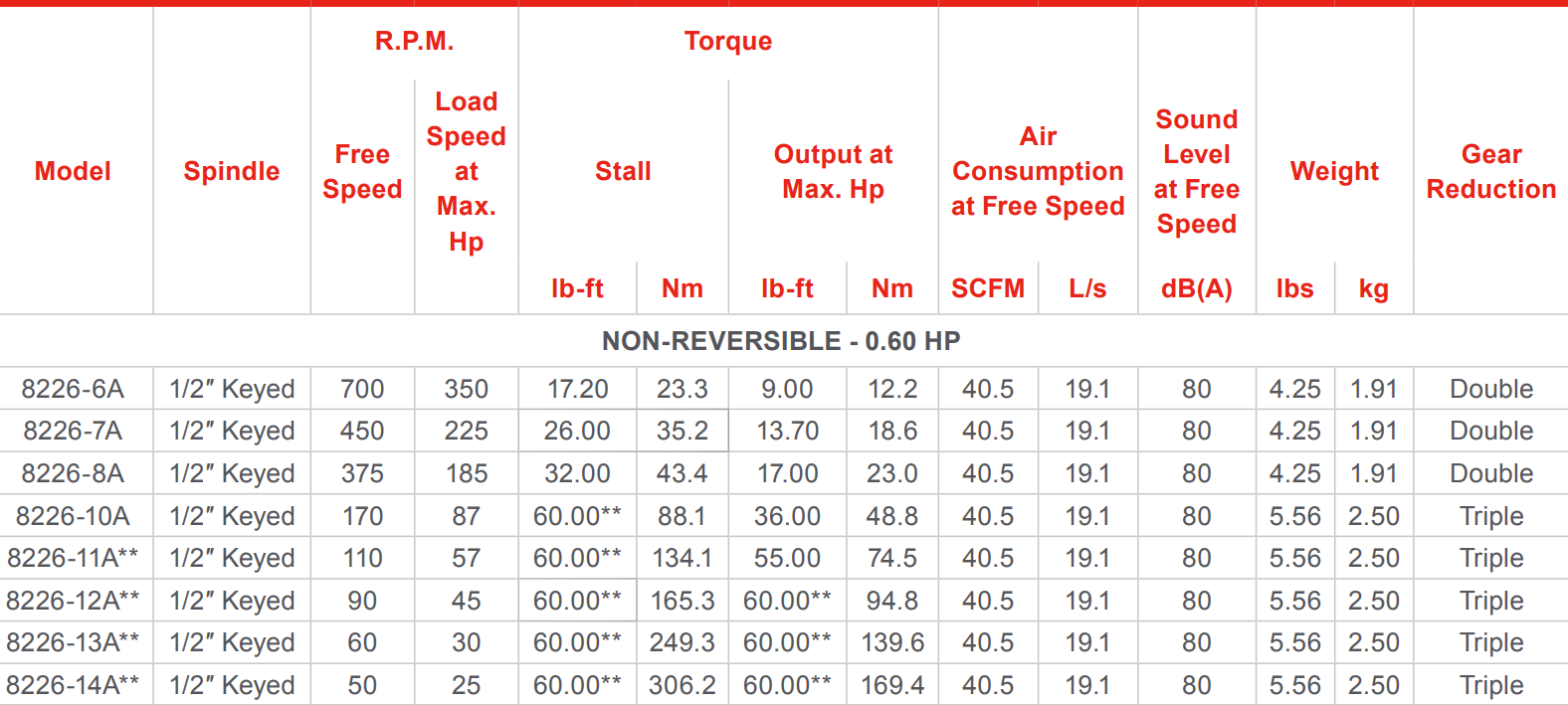

| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output at Max. Hp | ||||||||||
| lb-ft | Nm | lb-ft | Nm | SCFM | L/s | dB(A) | lbs | kg | |||||
| NON-REVERSIBLE - 0.60 HP | |||||||||||||
| 8226-6A | 1/2" Keyed | 700 | 350 | 17.20 | 23.3 | 9.00 | 12.2 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-7A | 1/2" Keyed | 450 | 225 | 26.00 | 35.2 | 13.70 | 18.6 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-8A | 1/2" Keyed | 375 | 185 | 32.00 | 43.4 | 17.00 | 23.0 | 40.5 | 19.1 | 80 | 4.25 | 1.91 | Double |
| 8226-10A | 1/2" Keyed | 170 | 87 | 60.00** | 88.1 | 36.00 | 48.8 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-11A** | 1/2" Keyed | 110 | 57 | 60.00** | 134.1 | 55.00 | 74.5 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-12A** | 1/2" Keyed | 90 | 45 | 60.00** | 165.3 | 60.00** | 94.8 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-13A** | 1/2" Keyed | 60 | 30 | 60.00** | 249.3 | 60.00** | 139.6 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| 8226-14A** | 1/2" Keyed | 50 | 25 | 60.00** | 306.2 | 60.00** | 169.4 | 40.5 | 19.1 | 80 | 5.56 | 2.50 | Triple |
| REVERSIBLE - 0.50 HP | |||||||||||||
| 8228-2B | 1/2" Keyed | 3,200 | 1,550 | 2.90 | 3.9 | 1.70 | 2.3 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-3B | 1/2" Keyed | 2,600 | 1,300 | 3.50 | 4.7 | 2.00 | 2.7 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-5B | 1/2" Keyed | 800 | 420 | 11.20 | 15.2 | 6.30 | 8.5 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-6B | 1/2" Keyed | 650 | 330 | 13.80 | 18.7 | 8.00 | 10.8 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-7B | 1/2" Keyed | 425 | 220 | 20.00 | 27.1 | 12.00 | 16.3 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-8B | 1/2" Keyed | 350 | 185 | 25.00 | 33.9 | 14.00 | 19.0 | 30 | 14 | 80* | 4.25 | 1.91 | Double |
| 8228-9B | 1/2" Keyed | 200 | 105 | 45.00 | 61.0 | 25.00 | 33.9 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-10B | 1/2" Keyed | 160 | 80 | 55.00 | 74.5 | 33.00 | 44.7 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-11B** | 1/2" Keyed | 100 | 54 | 60.00** | 81.3 | 48.00 | 65.0 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-12B** | 1/2" Keyed | 85 | 43 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-13B** | 1/2" Keyed | 50 | 28 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
| 8228-14B** | 1/2" Keyed | 40 | 22 | 60.00** | 81.3 | 60.00** | 81.3 | 30 | 14 | 80* | 5.56 | 2.50 | Triple |
Looking for more information about Ingersoll Rand Air Power Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Power Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
