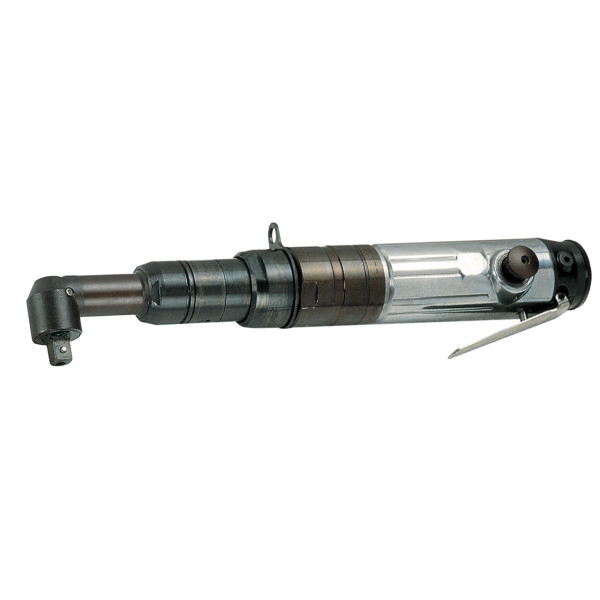

Ingersoll Rand 7RLL2C6 Angle Air Nutrunner is engineered for fast, repeatable fastening in production and assembly environments where speed and torque consistency are critical. Featuring a 25–100 in-lbs torque range, a 3/8-inch square drive, and a 1,400 RPM free speed, this pneumatic nutrunner provides efficient fastener rundown while maintaining precise torque control. Its ergonomic angle-head configuration offers improved access in confined work areas, while the lever-start throttle delivers smooth, responsive operation for repetitive assembly tasks.
Designed for continuous industrial use, the 7RLL2C6 combines lightweight handling with dependable pneumatic performance to help improve operator productivity. The 3/8-inch square drive accepts compatible sockets, making this tool well suited for manufacturing, automotive, appliance, and general assembly applications that require controlled fastening and high operating speed.
Tool Type: Angle Air Nutrunner | Torque Range: 25–100 in-lbs | Drive Size: 3/8" Square | Free Speed: 1,400 RPM | Throttle: Lever Start
|
Features:
|
|
Made in USA:
Applications:
- Automotive and transportation component assembly.
- Industrial manufacturing and production lines.
- Appliance and consumer product assembly.
- General mechanical assembly requiring repeatable pneumatic fastening.
- Assembly workstations where an angle-head tool improves accessibility and productivity.
FAQs:
- Q: What size sockets are compatible with this tool?
A: The 7RLL2C6 features a 3/8-inch square drive designed for use with compatible 3/8-inch square drive sockets. - Q: What is the benefit of the 1,400 RPM free speed?
A: The higher free speed enables quicker fastener rundown, helping improve productivity in repetitive assembly applications. - Q: Why choose an angle-head nutrunner?
A: The angle-head design provides improved access to fasteners in tight or obstructed workspaces where straight tools may be difficult to position. - Q: What applications is this tool best suited for?
A: It is designed for industrial manufacturing, automotive assembly, appliance production, and other repetitive fastening applications requiring controlled torque and high operating speed.

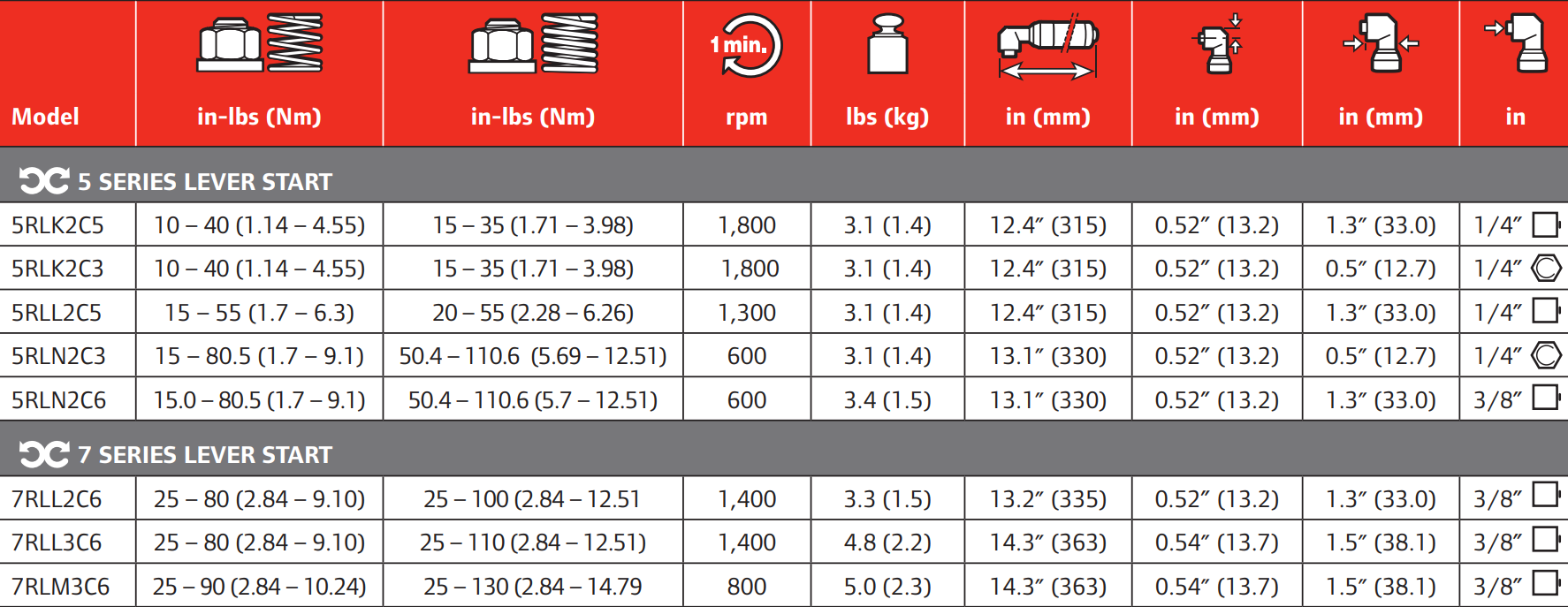

| SKU | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Head Height | Drive |
|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN | |
| 5 Series Lever Start | ||||||||
| 5RLK2C5 | 10 – 40 (1.14 – 4.55) |
15 – 35 (1.71 – 3.98) |
1,800 | 3.1 (1.4) |
12.4" (315) |
0.52" (13.2) |
1.3" (33.0) |
1/4" |
| 5RLK2C3 | 10 – 40 (1.14 – 4.55) |
15 – 35 (1.71 – 3.98) |
1,800 | 3.1 (1.4) |
12.4" (315) |
0.52" (13.2) |
0.5" (12.7) |
1/4" |
| 5RLL2C5 | 15 – 55 (1.7 – 6.3) |
20 – 55 (2.28 – 6.26) |
1,300 | 3.1 (1.4) |
12.4" (315) |
0.52" (13.2) |
1.3" (33.0) |
1/4" |
| 5RLN2C3 | 15 – 80.5 (1.7 – 9.1) |
50.4 – 110.6 (5.69 – 12.51) |
600 | 3.1 (1.4) |
13.1" (330) |
0.52" (13.2) |
0.5" (12.7) |
1/4" |
| 5RLN2C6 | 15.0 – 80.5 (1.7 – 9.1) |
50.4 – 110.6 (5.7 – 12.51) |
600 | 3.4 (1.5) |
13.1" (330) |
0.52" (13.2) |
1.3" (33.0) |
3/8" |
| 7 Series Lever Start | ||||||||
| 7RLL2C6 | 25 – 80 (2.84 – 9.10) |
25 – 100 (2.84 – 12.51) |
1,400 | 3.3 (1.5) |
13.2" (335) |
0.52" (13.2) |
1.3" (33.0) |
3/8" |
| 7RLL3C6 | 25 – 80 (2.84 – 9.10) |
25 – 110 (2.84 – 12.51) |
1,400 | 4.8 (2.2) |
14.3" (363) |
0.54" (13.7) |
1.5" (38.1) |
3/8" |
| 7RLM3C6 | 25 – 90 (2.84 – 10.24) |
25 – 130 (2.84 – 14.79) |
800 | 5.0 (2.3) |
14.3" (363) |
0.54" (13.7) |
1.5" (38.1) |
3/8" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Nutrunner
- Torque Range (Nm)
- 2.84 - 12.51
- Torque Range (in-lbs)
- 25 - 100
- RPM
- 1,400
- Length (in.)
- 13.2
- Side to Center (in.)
- 0.52
- Head Height (in.)
- 1.3
- Drive Size (in.)
- 3/8
- Drive Type
- Square Drive
- Air Inlet
- 1/4" NPT
- Min Hose Size (in.)
- 5/16
- Air Consumption (CFM)
- 27
