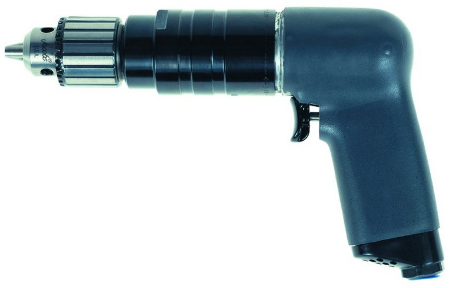

Built for high-torque drilling in manufacturing, heavy fabrication, and industrial maintenance, the Ingersoll Rand 7ANST8 Pistol Grip Air Drill combines a reliable 0.75 HP pneumatic motor with an impressive 185 in-lbs maximum torque to tackle demanding drilling applications. Its 500 RPM free speed provides the controlled rotation required for larger drill bits and thicker materials, helping improve hole accuracy while reducing bit chatter during low-speed drilling. The trigger-start pistol grip configuration offers smooth throttle control and balanced handling, making it well suited for repetitive industrial drilling tasks.
As part of Ingersoll Rand's proven 7 Series industrial drills, the 7ANST8 is designed for dependable performance in continuous-duty environments. The non-reversible configuration is optimized for dedicated forward drilling applications, while the cantilever-mounted planetary gear system efficiently transfers motor power and simplifies maintenance. Its lightweight yet durable construction makes it a practical choice for production workstations, fabrication facilities, and maintenance departments where reliable low-speed, high-torque drilling is essential.
Type: Pistol Grip Air Drill | Series: 7 Series | Model: 7ANST8 | Power: 0.75 HP | Maximum Torque: 185 in-lbs | Free Speed: 500 RPM | Chuck Capacity: 1/2 in. (13 mm) | Start Type: Trigger Start | Reverse: No | Length: 7.4 in. (189 mm) | Weight: 2.2 lb (1.0 kg) | Side-to-Center: 0.9 in. (22 mm) | Air Consumption: 25 CFM | Air Inlet: 1/4 in. NPT | Minimum Hose Size: 5/16 in. | Sound Level: 82 dBA
Features:
- 0.75 HP pneumatic motor delivers dependable performance for continuous industrial drilling operations.
- 185 in-lbs maximum torque provides excellent drilling power for larger holes and demanding materials.
- 500 RPM free speed offers exceptional control for low-speed, high-torque drilling applications.
- Trigger-start throttle enables smooth, responsive speed control throughout drilling operations.
- Compact pistol grip design promotes balanced handling and precise operator control.
- Cantilever-mounted planetary gears provide efficient power transmission while simplifying maintenance.
- Skinsulate™ housing enhances grip and improves comfort during extended production use.
- Lightweight construction helps reduce fatigue during repetitive industrial drilling tasks.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Heavy-duty manufacturing operations requiring controlled, high-torque drilling.
- Metal fabrication shops drilling large-diameter holes in structural steel and fabricated assemblies.
- Industrial maintenance departments servicing heavy equipment, machinery, and production systems.
- Assembly operations where low-speed drilling improves hole quality and drilling precision.
- General industrial workshops performing repetitive drilling in thick metals and other demanding materials.
FAQs:
- Q: What makes the 7ANST8 suitable for heavy-duty drilling?
A: Its combination of 185 in-lbs maximum torque and 500 RPM free speed provides the controlled power needed for larger drill bits and more demanding drilling applications. - Q: Is the 7ANST8 reversible?
A: No. This model is a non-reversible drill designed specifically for forward drilling applications. - Q: What chuck capacity does this drill use?
A: The 7ANST8 is equipped with a 1/2-inch (13 mm) chuck, allowing it to accommodate larger drill bits commonly used in industrial drilling operations. - Q: What compressed air supply is recommended?
A: The drill consumes approximately 25 CFM and features a 1/4-inch NPT air inlet. A minimum 5/16-inch air hose is recommended to maintain adequate airflow and consistent drilling performance.

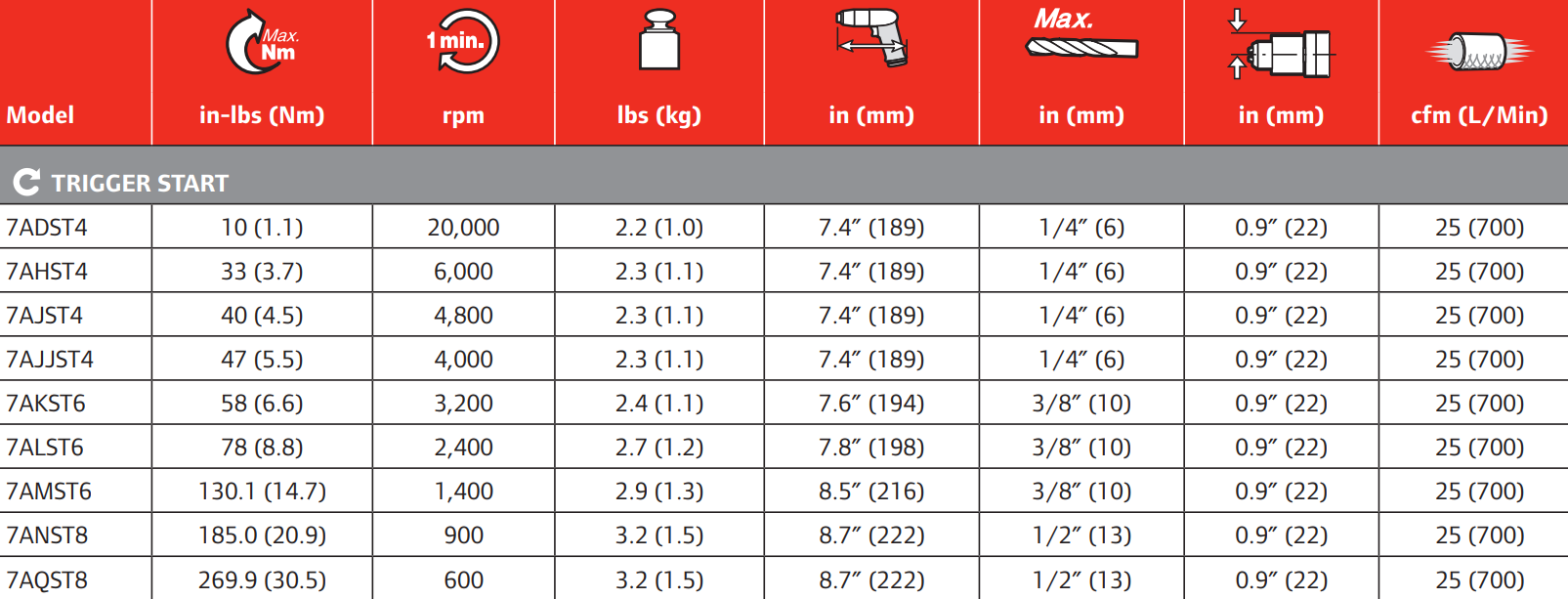

| SKU | MAX. TORQUE | FREE SPEED | WEIGHT | LENGTH | MAX. DRILL DIA. | SIDE TO CENTER | AIR CONSUMPTION |
|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | cfm (L/min) | |
| TRIGGER START | |||||||
| 7ADST4 | 10 (1.1) | 20,000 | 2.2 (1.0) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AHST4 | 33 (3.7) | 6,000 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AJST4 | 40 (4.5) | 4,800 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AJJST4 | 47 (5.5) | 4,000 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AKST6 | 58 (6.6) | 3,200 | 2.4 (1.1) | 7.6" (194) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7ALST6 | 78 (8.8) | 2,400 | 2.7 (1.2) | 7.8" (198) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7AMST6 | 130.1 (14.7) | 1,400 | 2.9 (1.3) | 8.5" (216) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7ANST8 | 185.0 (20.9) | 900 | 3.2 (1.5) | 8.7" (222) | 1/2" (13) | 0.9" (22) | 25 (700) |
| 7AQST8 | 269.9 (30.5) | 600 | 3.2 (1.5) | 8.7" (222) | 1/2" (13) | 0.9" (22) | 25 (700) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Drills for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Drill
- Power (hp)
- 0.75
- Actuation
- Trigger Start
- Torque (in-lbs)
- 185.0
- RPM
- 900
- Length (in.)
- 8.7
- Bit Holder Capacity (in.)
- 1/2
- Side to Center (in.)
- 0.9
- Sound Level (dbA)
- 82
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 25
- Min Hose Size (in.)
- 5/16
