Built for high-speed precision drilling in manufacturing, maintenance, and metal fabrication environments, the Ingersoll Rand 7ADST4 Pistol Grip Air Drill delivers 0.75 HP of pneumatic power and 10 in-lbs maximum torque for controlled drilling in light-duty materials and repetitive production work. Its 20,000 RPM free speed allows fast hole creation with clean results, making it well suited for assembly operations where speed and accuracy are equally important. The pistol grip configuration provides familiar handling and responsive trigger control, helping operators maintain precision throughout extended drilling tasks.
Designed as part of Ingersoll Rand's industrial 7 Series, the 7ADST4 combines lightweight construction with a durable planetary gear drive to deliver dependable performance in continuous-use environments. The non-reversible trigger-start design simplifies operation for dedicated drilling applications, while the compact profile allows improved maneuverability around fixtures, machinery, and production workstations.
Type: Pistol Grip Air Drill | Series: 7 Series | Model: 7ADST4 | Power: 0.75 HP | Maximum Torque: 10 in-lbs | Free Speed: 20,000 RPM | Bit Holder Capacity: 1/4 in. (6 mm) | Start Type: Trigger Start | Reverse: No | Length: 7.4 in. (189 mm) | Weight: 2.2 lb (1.0 kg) | Side-to-Center: 0.9 in. (22 mm) | Air Consumption: 25 CFM | Air Inlet: 1/4 in. NPT | Minimum Hose Size: 5/16 in. | Sound Level: 82 dBA
Features:
- 0.75 HP air motor delivers consistent drilling performance for repetitive industrial applications.
- 20,000 RPM free speed supports rapid drilling in light-gauge materials and production environments.
- 10 in-lbs maximum torque provides controlled drilling for precision work.
- Compact pistol grip configuration improves handling and tool balance.
- Trigger-start throttle enables smooth, responsive speed control during drilling.
- Cantilever-mounted planetary gears simplify maintenance while providing reliable power transmission.
- Skinsulate™ housing enhances grip and helps improve user comfort during extended operation.
- Lightweight construction helps reduce fatigue throughout repetitive production shifts.

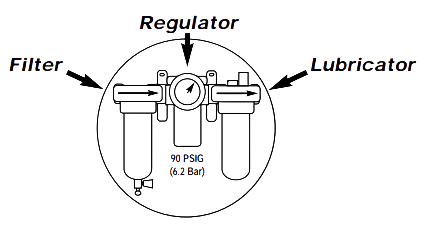

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRL)
Made in USA:
Applications:
- Production assembly lines performing repetitive drilling operations.
- Industrial maintenance departments carrying out equipment fabrication and repair.
- Metal fabrication shops drilling small-diameter holes in sheet metal and fabricated components.
- Manufacturing facilities requiring lightweight, high-speed pneumatic drilling tools.
- General workshop and maintenance applications where accurate drilling and operator control are important.
FAQs:
- Q: What materials is the Ingersoll Rand 7ADST4 best suited for?
A: The 7ADST4 is intended for high-speed drilling in light- to medium-duty materials where precision and drilling speed are more important than high torque. - Q: Is this drill reversible?
A: No. The 7ADST4 is a non-reversible model designed specifically for forward drilling applications. - Q: What size accessories can be used with this drill?
A: The drill features a 1/4-inch (6 mm) bit holder for compatible drilling accessories. - Q: What air supply is recommended?
A: The drill uses approximately 25 CFM and is equipped with a 1/4-inch NPT air inlet. A minimum 5/16-inch air hose is recommended to maintain proper airflow.
| SKU | MAX. TORQUE | FREE SPEED | WEIGHT | LENGTH | MAX. DRILL DIA. | SIDE TO CENTER | AIR CONSUMPTION |
|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | cfm (L/min) | |
| TRIGGER START | |||||||
| 7ADST4 | 10 (1.1) | 20,000 | 2.2 (1.0) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AHST4 | 33 (3.7) | 6,000 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AJST4 | 40 (4.5) | 4,800 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AJJST4 | 47 (5.5) | 4,000 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AKST6 | 58 (6.6) | 3,200 | 2.4 (1.1) | 7.6" (194) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7ALST6 | 78 (8.8) | 2,400 | 2.7 (1.2) | 7.8" (198) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7AMST6 | 130.1 (14.7) | 1,400 | 2.9 (1.3) | 8.5" (216) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7ANST8 | 185.0 (20.9) | 900 | 3.2 (1.5) | 8.7" (222) | 1/2" (13) | 0.9" (22) | 25 (700) |
| 7AQST8 | 269.9 (30.5) | 600 | 3.2 (1.5) | 8.7" (222) | 1/2" (13) | 0.9" (22) | 25 (700) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
