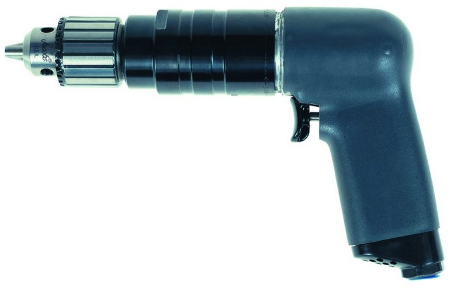

Built for demanding drilling applications in manufacturing, fabrication, and industrial maintenance, the Ingersoll Rand 7ALST6 Pistol Grip Air Drill combines a dependable 0.75 HP pneumatic motor with 78 in-lbs maximum torque to deliver the power required for larger drill bits and heavier-duty drilling tasks. Its 1,200 RPM free speed provides excellent control when working with thicker materials, helping reduce bit walking while improving drilling accuracy and finish quality. The pistol grip configuration with trigger-start throttle offers responsive control and comfortable handling throughout repetitive production operations.
As part of Ingersoll Rand's proven 7 Series industrial drills, the 7ALST6 is designed to provide reliable performance in continuous-duty environments. The non-reversible configuration is optimized for dedicated forward drilling, while the cantilever-mounted planetary gear system efficiently transfers motor power and simplifies routine maintenance. Its lightweight construction and compact profile make it well suited for production lines, maintenance shops, and fabrication facilities requiring dependable pneumatic drilling performance.
Type: Pistol Grip Air Drill | Series: 7 Series | Model: 7ALST6 | Power: 0.75 HP | Maximum Torque: 78 in-lbs | Free Speed: 1,200 RPM | Chuck Capacity: 3/8 in. (10 mm) | Start Type: Trigger Start | Reverse: No | Length: 7.4 in. (189 mm) | Weight: 2.2 lb (1.0 kg) | Side-to-Center: 0.9 in. (22 mm) | Air Consumption: 25 CFM | Air Inlet: 1/4 in. NPT | Minimum Hose Size: 5/16 in. | Sound Level: 82 dBA
Features:
- 0.75 HP pneumatic motor provides reliable performance for continuous industrial drilling operations.
- 78 in-lbs maximum torque delivers the power required for larger drill bits and more demanding drilling applications.
- 1,200 RPM free speed provides enhanced drilling control for improved hole accuracy in thicker materials.
- Trigger-start throttle enables precise speed modulation throughout the drilling process.
- Compact pistol grip configuration promotes balanced handling and excellent maneuverability.
- Cantilever-mounted planetary gears provide efficient power transmission while simplifying routine maintenance.
- Skinsulate™ housing improves grip and enhances operator comfort during prolonged use.
- Lightweight construction helps reduce fatigue during repetitive production and maintenance tasks.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Production manufacturing requiring controlled, high-torque drilling operations.
- Industrial maintenance departments servicing machinery, structural equipment, and plant assets.
- Metal fabrication shops drilling larger holes in steel, aluminum, and fabricated components.
- Equipment assembly stations where slower drilling speeds improve precision and hole quality.
- General industrial workshops performing repetitive drilling on medium- and heavy-duty materials.
FAQs:
- Q: What applications benefit from the 78 in-lbs torque rating?
A: The higher torque output makes the 7ALST6 well suited for drilling larger diameter holes and working with thicker materials where additional drilling power and improved control are required. - Q: Is the 7ALST6 reversible?
A: No. This model is a non-reversible drill designed exclusively for forward drilling applications. - Q: What chuck capacity does this drill feature?
A: The 7ALST6 is equipped with a 3/8-inch (10 mm) chuck for compatibility with a wide range of industrial drill bits. - Q: What air supply is recommended for this drill?
A: The drill consumes approximately 25 CFM and features a 1/4-inch NPT air inlet. A minimum 5/16-inch air hose is recommended to provide adequate airflow for consistent performance.
| SKU | MAX. TORQUE | FREE SPEED | WEIGHT | LENGTH | MAX. DRILL DIA. | SIDE TO CENTER | AIR CONSUMPTION |
|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | cfm (L/min) | |
| TRIGGER START | |||||||
| 7ADST4 | 10 (1.1) | 20,000 | 2.2 (1.0) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AHST4 | 33 (3.7) | 6,000 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AJST4 | 40 (4.5) | 4,800 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AJJST4 | 47 (5.5) | 4,000 | 2.3 (1.1) | 7.4" (189) | 1/4" (6) | 0.9" (22) | 25 (700) |
| 7AKST6 | 58 (6.6) | 3,200 | 2.4 (1.1) | 7.6" (194) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7ALST6 | 78 (8.8) | 2,400 | 2.7 (1.2) | 7.8" (198) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7AMST6 | 130.1 (14.7) | 1,400 | 2.9 (1.3) | 8.5" (216) | 3/8" (10) | 0.9" (22) | 25 (700) |
| 7ANST8 | 185.0 (20.9) | 900 | 3.2 (1.5) | 8.7" (222) | 1/2" (13) | 0.9" (22) | 25 (700) |

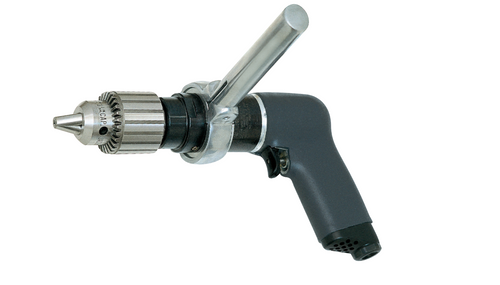

| 7AQST8 | 269.9 (30.5) | 600 | 3.2 (1.5) | 8.7" (222) | 1/2" (13) | 0.9" (22) | 25 (700) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Drills for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Drill
- Power (hp)
- 0.75
- Actuation
- Trigger Start
- Torque (in-lbs)
- 78
- RPM
- 2400
- Length (in.)
- 7.8
- Bit Holder Capacity (in.)
- 3/8
- Side to Center (in.)
- 0.9
- Sound Level (dbA)
- 82
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 25
- Min Hose Size (in.)
- 5/16
