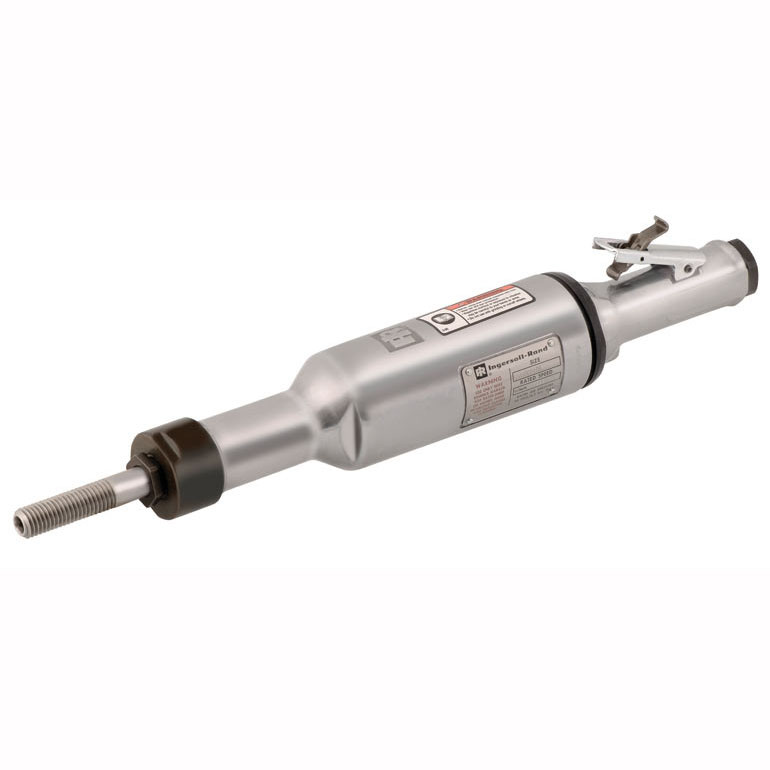

Ingersoll Rand 77H50B106 Extended Straight Grinder | 1.5 HP | 5,000 RPM | 5/8"-11 x 2 Thread | Side Exhaust

Ingersoll Rand 77H50B106 Extended Straight Grinder is a pneumatic grinding tool configured for material removal tasks where additional reach can improve access to the work surface. Powered by a 1.5 HP motor and operating at 5,000 RPM, this model features a 5/8"-11 x 2 thread configuration for use with compatible grinding accessory and mounting setups.

Ingersoll Rand 77H50B106 combines an extended straight configuration with a 5,000 RPM operating speed, providing a useful tool layout for applications where a standard-length grinder may not provide suitable reach. Its side exhaust configuration routes discharged air through the side of the tool, while accessory selection should account for the specified thread configuration and operating speed.

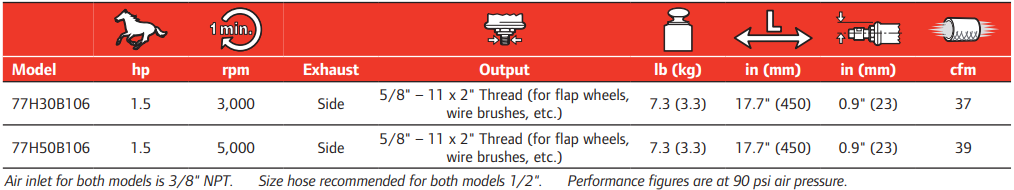

Type: Extended Straight Grinder | Power: 1.5 HP | Speed: 5,000 RPM | Thread: 5/8"-11 x 2 | Exhaust: Side Exhaust

Features:

• 1.5 HP pneumatic motor provides the specified power output for compatible grinding and material removal applications.
• 5,000 RPM operating speed supports accessory setups designed and rated for this rotational speed.
• 5/8"-11 x 2 thread configuration provides the specified mounting arrangement for compatible accessories.
• Extended straight configuration provides additional reach for accessing work areas where a standard-length tool may be difficult to position.
• Straight tool layout supports direct positioning during grinding and surface preparation tasks.
• Side exhaust routes discharged air through the side of the tool.

Applications:

• Grinding and material removal tasks where an extended straight tool configuration provides improved access to the work area.
• Surface preparation and cleanup in recessed or less accessible locations.
• Work on fabricated components and assemblies using compatible accessories matched to the tool's thread configuration and operating speed.
• Production and repair operations requiring a 1.5 HP pneumatic grinder with extended reach and a 5,000 RPM speed rating.

FAQs:

• Q: What is the operating speed of the Ingersoll Rand 77H50B106?
  A: The 77H50B106 is specified to operate at 5,000 RPM.
• Q: Why would I choose an extended straight grinder?
  A: The extended configuration provides additional reach, which can help position the grinding accessory in recessed or less accessible work areas.
• Q: What thread configuration is specified for the 77H50B106?
  A: The provided product information specifies a 5/8"-11 x 2 thread configuration. Compatible accessories and mounting components should match this specification.
• Q: Where does this grinder exhaust air?
  A: The 77H50B106 uses a side exhaust configuration.
• Q: What should be verified before selecting a grinding accessory?
  A: Confirm that the accessory and mounting arrangement are compatible with the specified 5/8"-11 x 2 thread configuration and are rated for operation at 5,000 RPM.

Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
