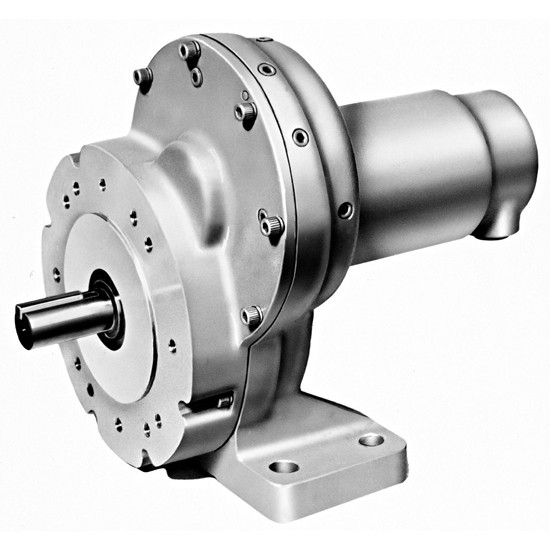

Ingersoll Rand 48RB029 Reversible Multi-Vane Air Motor | 3 HP | 292 RPM | 135 (ft-lbs) Starting Torque | 189 (ft-lbs) Stall Torque

Designed for industrial equipment requiring high-torque pneumatic rotary power, the Ingersoll Rand 48RB029 Reversible Multi-Vane Air Motor delivers 3 HP with a 292 RPM operating speed, 135 ft-lbs starting torque, and 189 ft-lbs stall torque. The reversible multi-vane design provides clockwise and counterclockwise rotation, making this air motor suitable for applications requiring controlled speed, high torque output, and dependable compressed-air-powered operation.

The 48RB029 air motor is engineered for industrial machinery and OEM equipment applications where reliable pneumatic drive power is required. Its low-speed, high-torque performance provides increased turning force for demanding rotary applications such as pumps, mixers, conveyors, winches, and other industrial drive systems. Pneumatic operation allows speed adjustment through air regulation while maintaining consistent torque performance in challenging work environments.

Type: Reversible Multi-Vane Air Motor | Series: 48RB Series | Model: 48RB029 | Power: 3 HP | Speed: 292 RPM | Starting Torque: 135 ft-lbs | Stall Torque: 189 ft-lbs | Rotation: Reversible

Features:

• Reversible multi-vane design provides clockwise and counterclockwise rotation for equipment requiring directional flexibility.
• 3 HP output provides pneumatic power for industrial machinery and rotary drive applications.
• Low-speed, high-torque performance supports applications requiring increased turning force and controlled rotation.
• Starting torque capability provides high initial force for beginning rotation under load conditions.
• Stall torque capability provides available torque when the motor is temporarily prevented from rotating while operating.
• Variable speed control can be achieved by regulating compressed air supply to match application requirements.
• Pneumatic operation provides a reliable rotary power solution for industrial environments requiring air-driven equipment.

Made in USA:

Applications:

• Pumps and fluid handling equipment — providing pneumatic rotary drive power for systems requiring high torque output.
• Mixers and agitators — operating industrial mixing equipment requiring controlled speed and reversible rotation.
• Material handling equipment — powering winches, conveyors, and positioning systems requiring pneumatic drive.
• OEM machinery — integrating high-torque pneumatic motors into custom industrial equipment designs.

FAQs:

• Q: What does reversible operation mean on the 48RB029 air motor?
  A: Reversible operation allows the motor shaft to rotate in both directions, making it suitable for equipment requiring forward and reverse rotation.
• Q: What is the advantage of the 48RB029 compared with higher-speed air motors?
  A: The 48RB029 operates at a lower speed while providing higher torque output, making it suitable for applications requiring greater turning force.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the torque available when the motor is stopped while operating under air pressure.
• Q: Can the speed of the 48RB029 be adjusted?
  A: Yes, air motor speed can typically be controlled by regulating compressed air flow to match application requirements.
