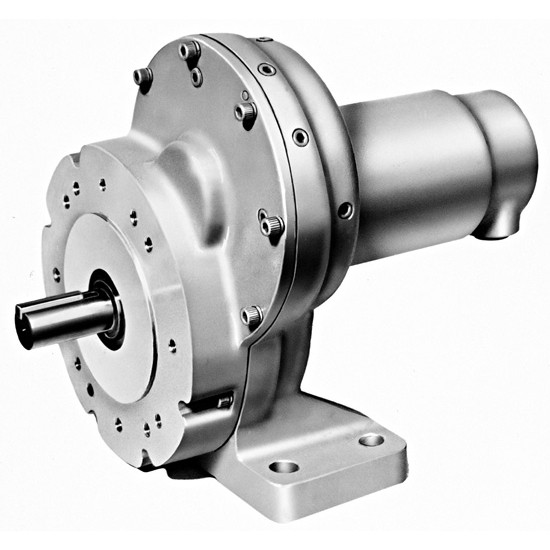

Ingersoll Rand 48RA014 Reversible Multi-Vane Air Motor | 3.1 HP | 612 RPM | 72 (ft-lbs) Starting Torque | 98 (ft-lbs) Stall Torque

Designed for industrial machinery and equipment requiring dependable pneumatic rotary power, the Ingersoll Rand 48RA014 Reversible Multi-Vane Air Motor delivers 3.1 HP with a 612 RPM operating speed, 72 ft-lbs starting torque, and 98 ft-lbs stall torque. The reversible multi-vane design provides clockwise and counterclockwise rotation, making this air motor suitable for applications requiring controlled speed, high torque output, and flexible directional operation.

The 48RA014 air motor is designed for industrial equipment and OEM applications where compressed air is used as the power source. With its lower operating speed and increased torque characteristics, this model is suited for driving equipment that requires greater turning force during startup and operation, including pumps, mixers, conveyors, winches, and other rotary machinery. Pneumatic operation allows speed adjustment through air regulation while maintaining reliable torque performance.

Type: Reversible Multi-Vane Air Motor | Series: 48RA Series | Model: 48RA014 | Power: 3.1 HP | Speed: 612 RPM | Starting Torque: 72 ft-lbs | Stall Torque: 98 ft-lbs | Rotation: Reversible

Features:

• Reversible multi-vane design provides clockwise and counterclockwise rotation for equipment requiring directional flexibility.
• 3.1 HP output provides pneumatic power for industrial machinery and rotary drive applications.
• Low-speed, high-torque performance supports applications requiring increased turning force.
• Starting torque capability provides high initial force for beginning rotation under load conditions.
• Stall torque capability provides available torque when the motor is temporarily prevented from rotating while operating.
• Variable speed control can be achieved by regulating compressed air supply to match application requirements.
• Pneumatic operation provides a reliable alternative for industrial environments requiring air-powered rotary motion.

Made in USA:

Applications:

• Pumps and fluid handling equipment — providing pneumatic rotary drive power where higher torque output is required.
• Mixers and agitators — operating industrial mixing equipment requiring controlled speed and reversible rotation.
• Material handling equipment — powering winches, conveyors, and positioning systems requiring pneumatic drive.
• OEM machinery — integrating compact, high-torque pneumatic motors into custom industrial equipment designs.

FAQs:

• Q: What does reversible operation mean on the 48RA014 air motor?
  A: Reversible operation allows the motor shaft to rotate in both directions, making it suitable for equipment requiring forward and reverse rotation.
• Q: What is the advantage of the 48RA014 compared with higher-speed air motors?
  A: The 48RA014 operates at a lower speed while providing higher torque output, making it suitable for applications requiring greater turning force.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the available torque when the motor begins rotating from rest, while stall torque is the torque available when the motor is stopped while operating under air pressure.
• Q: Can the speed of the 48RA014 be adjusted?
  A: Yes, air motor speed can typically be controlled by regulating compressed air flow to match application requirements.
