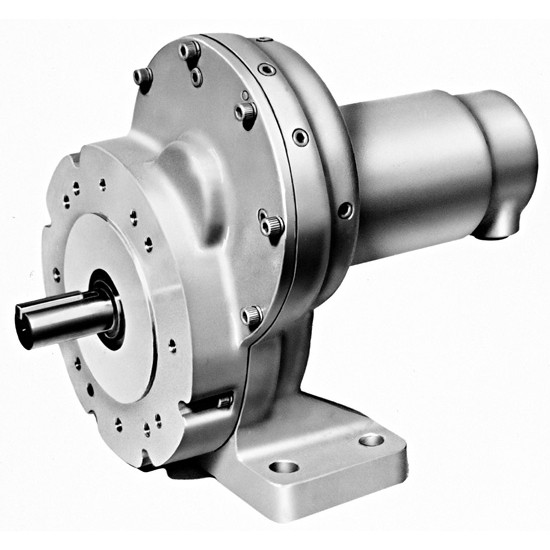

Ingersoll Rand 48RA005 Reversible Multi-Vane Air Motor | 3.1 HP | 1,690 RPM | 26 (ft-lbs) Starting Torque | 35 (ft-lbs) Stall Torque

Designed for industrial equipment and machinery requiring reliable pneumatic rotary power, the Ingersoll Rand 48RA005 Reversible Multi-Vane Air Motor delivers 3.1 HP with a 1,690 RPM rated speed, 26 ft-lbs starting torque, and 35 ft-lbs stall torque. The reversible multi-vane design allows clockwise and counterclockwise rotation, making this air motor suitable for applications where directional control, variable speed capability, and dependable pneumatic power are required.

The 48RA005 air motor provides consistent performance for driving industrial equipment such as pumps, mixers, conveyors, and other rotary machinery. Unlike electric motors, pneumatic air motors can be selected for applications requiring adjustable speed control through air regulation, reversible operation, and compatibility with compressed air systems. This Ingersoll Rand motor combines high torque output with a compact industrial design for OEM equipment builders and maintenance applications.

Type: Reversible Multi-Vane Air Motor | Series: 48RA Series | Model: 48RA005 | Power: 3.1 HP | Speed: 1,690 RPM | Starting Torque: 26 ft-lbs | Stall Torque: 35 ft-lbs | Rotation: Reversible

Features:

• Reversible multi-vane design provides clockwise and counterclockwise rotation for equipment requiring directional flexibility.
• 3.1 HP output provides pneumatic power for industrial machinery and rotary drive applications.
• Variable speed control can be adjusted by regulating the compressed air supply.
• Starting torque capability provides turning force required to begin rotation under load conditions.
• Stall torque capability provides available torque when the motor is prevented from rotating while operating.
• Pneumatic operation provides a practical alternative for applications where compressed air power is preferred.
• Compact air motor design allows integration into OEM machinery and custom equipment systems.

Made in USA:

Applications:

• Pumps and fluid handling equipment — providing rotary drive power for pneumatic-powered pump systems.
• Mixers and agitators — operating industrial mixing equipment requiring reversible rotary motion.
• Material handling equipment — powering conveyors, winches, and positioning systems.
• OEM machinery — integrating pneumatic rotary power into custom industrial equipment designs.

FAQs:

• Q: What does reversible operation mean on the 48RA005 air motor?
  A: Reversible operation allows the motor shaft to rotate in both directions, making it suitable for equipment requiring forward and reverse movement.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the available torque when the motor begins turning from rest, while stall torque is the torque available when the motor is stopped while operating under air pressure.
• Q: Can the speed of the 48RA005 be adjusted?
  A: Yes, air motor speed can typically be controlled by regulating the compressed air supply to match application requirements.
• Q: What type of applications use multi-vane air motors?
  A: Multi-vane air motors are commonly used in industrial equipment including pumps, mixers, conveyors, winches, and custom machinery requiring pneumatic rotary power.
