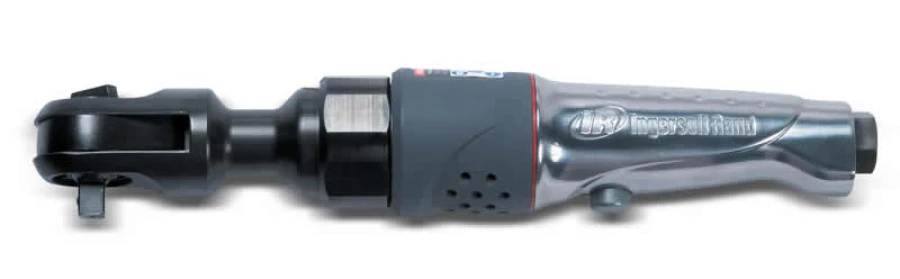

Ingersoll Rand 109XPA High-Torque Air Ratchet Wrench combines a 3/8" square drive with up to 76 ft-lbs (103 Nm) of maximum torque for automotive repair and other close-quarter fastening work. Its optimized gear ratio and airflow support increased torque output, while the 220 RPM free speed helps technicians move quickly through repetitive fastener installation and removal.
Designed to reach fasteners in deep and confined spaces, the 109XPA uses a low-profile forward/reverse control with a wide diameter for easier operation where hand clearance is limited. A 360-degree adjustable exhaust lets the operator direct discharged air away from the work area, while the 10–60 ft-lbs (14–81 Nm) recommended torque range provides a useful reference for matching the ratchet to the fastening task.
Type: High-Torque Air Ratchet Wrench | Model: 109XPA | Drive Size: 3/8" | Drive Type: Square | Actuation: Button, Variable Speed | Maximum Torque: 76 ft-lbs (103 Nm) | Recommended Torque Range: 10–60 ft-lbs (14–81 Nm) | Free Speed: 220 RPM | Weight: 3.3 lb (1.5 kg) | Length: 12" (305 mm) | Average Air Consumption: 4 CFM (113 L/min) | Free Speed Air Consumption: 24 CFM (680 L/min) | Free Speed Sound Level: 92.4 dBA | Vibration Level: 2.5 m/s² (K: 0.7) | Air Inlet: 1/4" NPTF | Minimum Hose Size: 3/8" (10 mm)
Features:
- Optimized gear ratio and airflow provide the performance required to produce up to 76 ft-lbs of maximum torque.
- 3/8" square drive accepts compatible sockets for automotive, repair, and maintenance fastening tasks.
- 220 RPM free speed helps reduce time spent running threaded fasteners in and out compared with manual ratcheting.
- Low-profile forward/reverse control has a wide diameter for easier operation when working in confined spaces.
- Extended ratchet configuration provides increased reach for fasteners located deep within crowded assemblies.
- 360-degree adjustable exhaust allows airflow to be directed away from the operator and surrounding work area.
- Variable-speed button actuation provides control over tool speed during fastening and removal.
- High-torque configuration provides greater maximum torque than the standard-duty 107XPA ratchet for applications requiring additional fastening capability.

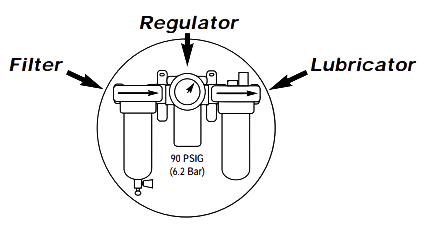

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRL)
Applications:
- Automotive repair involving fasteners located around engines, under hoods, and within confined component assemblies.
- Vehicle maintenance tasks requiring more torque than a standard pneumatic ratchet provides.
- Repair and service work where the 12" tool length helps reach deeply positioned threaded fasteners.
- Shop fastening and removal tasks compatible with a 3/8" square drive and the tool's recommended torque range.
FAQs:
- Q: How much maximum torque does the Ingersoll Rand 109XPA provide?
A: The 109XPA delivers up to 76 ft-lbs (103 Nm) of maximum torque. Ingersoll Rand specifies a recommended torque range of 10–60 ft-lbs (14–81 Nm). - Q: What drive size does the 109XPA use?
A: The 109XPA uses a 3/8" square drive. The related 1099XPA provides the same maximum torque with a 1/2" square drive. - Q: What is the free speed of the 109XPA?
A: The manufacturer specifies a free speed of 220 RPM. - Q: How does the low-profile forward/reverse control help in confined spaces?
A: Ingersoll Rand gives the control a wide-diameter, low-profile design intended to make direction changes easier when working where hand and tool clearance are restricted. - Q: Can the exhaust direction be changed on the 109XPA?
A: Yes. The ratchet has a 360-degree adjustable exhaust so the operator can direct airflow away from themselves and the work area. - Q: What air connection and hose size does the 109XPA require?
A: Ingersoll Rand specifies a 1/4" NPTF air inlet and a minimum 3/8" (10 mm) hose size. Average air consumption is 4 CFM (113 L/min), with 24 CFM (680 L/min) specified at free speed.
| SKU | Square Drive | Max Torque | Free Speed | Weight | Length | Average Air Consumption | Average Air Consumption @ Free Speed | Sound Pressure / Power | Air Inlet NPTF | Min Hose Size |
|---|---|---|---|---|---|---|---|---|---|---|
| ft-lb (Nm) | rpm | lb (kg) | in (mm) | cfm (L/min) | cfm (L/min) | dBA | in | in (mm) | ||
| 3/8" SQUARE DRIVE | ||||||||||
| 107XPA | 3/8" | 54 (73) | 160 | 2.75 (1.25) | 11" (279) | 4 (85) | 19 (510) | 94.4 / 100.4 | 1/4" | 3/8" |
| 109XPA | 3/8" | 76 (95) | 220 | 3.3 (1.4) | 12" (302) | 4 (113) | 24 (680) | 92.4 / 103.4 | 1/4" | 3/8" |
| 1207MAX-D3 | 3/8" | 65 (88) | 200 | 3.2 (1.45) | 10.8 (275) | 4 (113) | 23 (651) | 85.0/96.0 | 1/4" | 3/8" |
| 1/2" SQUARE DRIVE | ||||||||||
| 1077XPA* | 1/2" | 54 (73) | 160 | 2.75 (1.25) | 11" (279) | 4 (85) | 19 (510) | 94.4 / 105.4 | 1/4" | 3/8" |
| 1099XPA* | 1/2" | 76 (95) | 220 | 3.3 (1.4) | 12" (302) | 4 (113) | 24 (680) | 92.4 / 103.4 | 1/4" | 3/8" |
| 1207MAX-D4* | 1/2" | 65 (88) | 200 | 3.2 (1.45) | 10.8 (275) | 4 (113) | 23 (651) | 85.0/96.0 | 1/4" | 3/8" |
Looking for more information about Ingersoll Rand Ratchet Wrench? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Ratchet Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Ratchet Wrench
- Drive Size (in.)
- 3/8
- Drive Type
- Square Drive
- RPM
- 220
- Torque Range (ft-lbs)
- 10 - 60
- Torque Range (Nm)
- 14 - 81
- Max Torque (ft-lbs)
- 76
- Max Torque (Nm)
- 95
- Length (in.)
- 12
- Air Consumption (CFM)
- 24
- Air Inlet
- 1/4" NPTF
- Hose Size (in.)
- 3/8
