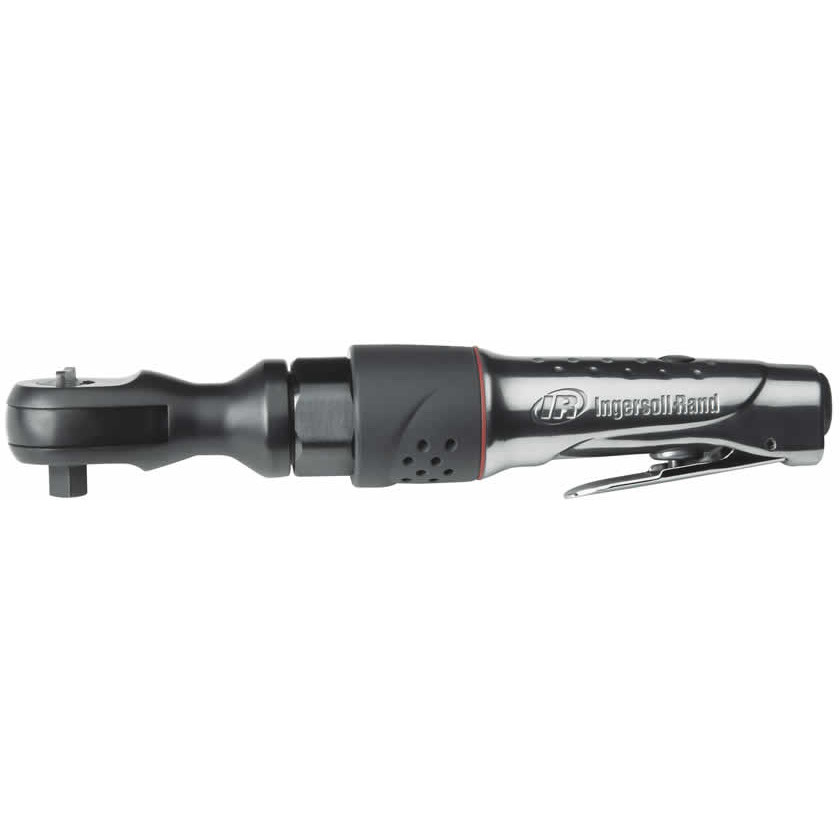

Ingersoll Rand 107XPA Standard Air Ratchet Wrench | 3/8" Square Drive | 160 RPM | 54 (ft-lbs) Max Torque

Ingersoll Rand 107XPA Standard Air Ratchet Wrench combines a compact ratchet format with a 3/8" square drive for automotive repair and other fastening work in confined areas. Delivering up to 54 ft-lbs (73 Nm) of maximum torque with a 160 RPM free speed, it provides the reach and powered rotation needed to install and remove threaded fasteners where a larger impact wrench may be difficult to position.

Built around an advanced, heat-treated head design, the 107XPA is engineered for durability while maintaining a manageable 2.75 lb (1.25 kg) weight. A variable-speed lever-style throttle gives the operator control over tool speed, while the power regulator provides additional control for different fastening tasks. Its 360-degree adjustable exhaust can be directed away from the operator and work area.

Type: Standard Air Ratchet Wrench | Model: 107XPA | Drive Size: 3/8" | Drive Type: Square | Actuation: Variable-Speed Lever | Maximum Torque: 54 ft-lbs (73 Nm) | Recommended Torque Range: 10–45 ft-lbs (14–61 Nm) | Free Speed: 160 RPM | Weight: 2.75 lb (1.25 kg) | Length: 11" (279 mm) | Average Air Consumption: 4 CFM | Free Speed Air Consumption: 19 CFM | Free Speed Sound Level: 94.4 dBA | Vibration Level: 2.4 m/s² (K: 0.7) | Air Inlet: 1/4" NPTF | Minimum Hose Size: 3/8" (10 mm)

Features:

• Advanced head design provides increased durability for frequent ratcheting and fastening work.
• Heat-treated head is designed to withstand the demands of professional service applications.
• 3/8" square drive accepts compatible sockets for common assembly, maintenance, and automotive fasteners.
• Variable-speed lever-style throttle lets the operator control tool speed during installation and removal.
• Power regulator provides additional control to help match tool output to the fastening task.
• 360-degree adjustable exhaust allows discharged air to be directed away from the operator and work area.
• Long, narrow ratchet configuration provides access and reach for fasteners located in deep or confined spaces.
• 160 RPM free speed speeds up repetitive fastener installation and removal compared with manual ratcheting alone.

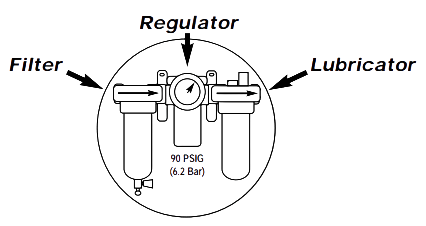

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Automotive repair involving fasteners located under the hood, around engines, and in other confined areas.
• Maintenance shop work requiring powered installation and removal of threaded fasteners.
• Engine repair and rebuilding where access around closely spaced components is limited.
• Assembly, remanufacturing, and retrofit work requiring a compact 3/8" drive air ratchet.

FAQs:

• Q: How much maximum torque does the Ingersoll Rand 107XPA provide?
  A: The 107XPA delivers up to 54 ft-lbs (73 Nm) of maximum torque. Ingersoll Rand lists a recommended torque range of 10–45 ft-lbs (14–61 Nm).
• Q: What drive size does the 107XPA use?
  A: The 107XPA uses a 3/8" square drive. The related 1077XPA uses a 1/2" square drive.
• Q: What is the free speed of the 107XPA?
  A: The manufacturer specifies a free speed of 160 RPM.
• Q: Can the exhaust direction be adjusted?
  A: Yes. The 107XPA has a 360-degree adjustable exhaust that allows discharged air to be directed away from the operator and the work area.
• Q: Is the 107XPA designed for working in confined areas?
  A: Yes. Ingersoll Rand highlights the ratchet's access and reach for working in deep, hard-to-reach spaces, making it useful for automotive and maintenance tasks around closely spaced components.
• Q: What air connection and hose size does the 107XPA require?
  A: The manufacturer specifies a 1/4" NPTF air inlet and a minimum 3/8" (10 mm) hose size.

Looking for more information about Ingersoll Rand Ratchet Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Ratchet Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
