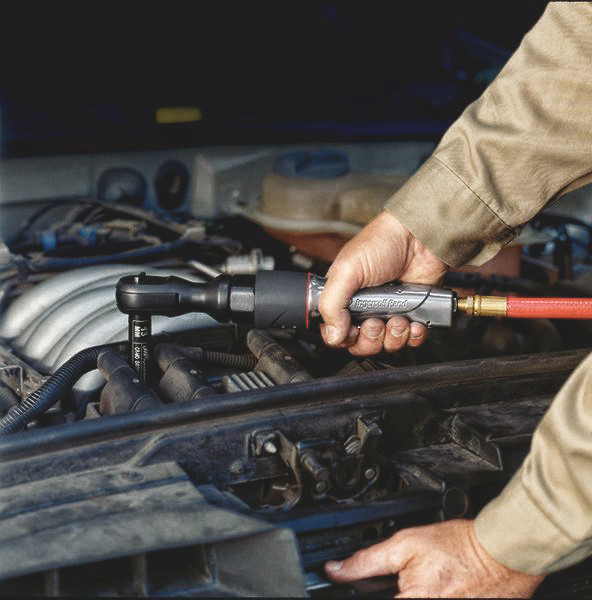

Ingersoll Rand 1077XPA Standard Air Ratchet Wrench features a 1/2" square drive and delivers up to 54 ft-lbs (73 Nm) of maximum torque for automotive repair, equipment servicing, and general maintenance. With a 160 RPM free speed, this pneumatic ratchet helps technicians install and remove threaded fasteners efficiently, particularly in confined areas where manual ratcheting can be time-consuming.
Designed for durability and convenient handling, the 1077XPA incorporates an advanced, heat-treated ratchet head and a variable-speed lever throttle for controlled operation. Its adjustable power regulator helps operators manage tool output, while the 360-degree adjustable exhaust allows discharged air to be directed away from the work area. The 10–45 ft-lbs (14–61 Nm) recommended torque range provides a useful reference for selecting appropriate fastening applications.
Type: Standard Air Ratchet Wrench | Model: 1077XPA | Drive Size: 1/2" | Drive Type: Square | Actuation: Variable-Speed Lever | Maximum Torque: 54 ft-lbs (73 Nm) | Recommended Torque Range: 10–45 ft-lbs (14–61 Nm) | Free Speed: 160 RPM | Weight: 2.75 lb (1.25 kg) | Length: 11" (279 mm) | Average Air Consumption: 4 CFM (113 L/min) | Free Speed Air Consumption: 19 CFM (538 L/min) | Free Speed Sound Level: 94.4 dBA | Vibration Level: 2.4 m/s² (K: 0.7) | Air Inlet: 1/4" NPTF | Minimum Hose Size: 3/8" (10 mm)
Features:
- 1/2" square drive accommodates compatible sockets for vehicle service and maintenance fastening tasks.
- Advanced ratchet head design supports durability during frequent installation and removal operations.
- Heat-treated head construction helps withstand the demands of regular workshop use.
- Variable-speed lever throttle gives the operator control over rotation speed when starting and running threaded fasteners.
- Adjustable power regulator provides additional control for matching tool output to the fastening task.
- 360-degree adjustable exhaust allows discharged air to be directed away from the operator and surrounding components.
- Long, narrow ratchet profile provides access to fasteners located deep within crowded assemblies.
- 160 RPM free speed helps reduce repetitive manual ratchet strokes during routine service work.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Automotive repair involving threaded fasteners in engine compartments and other restricted work areas.
- Vehicle maintenance where a 1/2" square-drive pneumatic ratchet matches the required socket size.
- Mechanical equipment servicing and component replacement within the manufacturer's recommended torque range.
- Workshop assembly and disassembly tasks requiring powered ratcheting in areas with limited wrench clearance.
FAQs:
- Q: What is the maximum torque of the Ingersoll Rand 1077XPA?
A: The 1077XPA delivers up to 54 ft-lbs (73 Nm) of maximum torque. Ingersoll Rand specifies a recommended torque range of 10–45 ft-lbs (14–61 Nm). - Q: What is the difference between the 1077XPA and 107XPA?
A: The primary difference is drive size. The 1077XPA uses a 1/2" square drive, while the 107XPA uses a 3/8" square drive. Both models have a maximum torque rating of 54 ft-lbs and a free speed of 160 RPM. - Q: Can the 1077XPA be used in confined spaces?
A: Yes. Its narrow ratchet configuration provides reach for fasteners located around closely spaced components, making it useful for automotive and maintenance applications. - Q: Does the 1077XPA offer adjustable speed and power?
A: Yes. The tool features a variable-speed lever throttle and an adjustable power regulator, allowing the operator to manage rotation speed and tool output. - Q: Can the exhaust direction be changed?
A: Yes. The 360-degree adjustable exhaust can be positioned to direct discharged air away from the operator and work area. - Q: What compressed-air connection does the 1077XPA require?
A: Ingersoll Rand specifies a 1/4" NPTF air inlet and a minimum 3/8" (10 mm) hose size. Average air consumption is 4 CFM (113 L/min), with 19 CFM (538 L/min) specified at free speed.
| SKU | Square Drive | Max Torque | Free Speed | Weight | Length | Average Air Consumption | Average Air Consumption @ Free Speed | Sound Pressure / Power | Air Inlet NPTF | Min Hose Size |
|---|---|---|---|---|---|---|---|---|---|---|
| ft-lb (Nm) | rpm | lb (kg) | in (mm) | cfm (L/min) | cfm (L/min) | dBA | in | in (mm) | ||
| 3/8" SQUARE DRIVE | ||||||||||
| 107XPA | 3/8" | 54 (73) | 160 | 2.75 (1.25) | 11" (279) | 4 (85) | 19 (510) | 94.4 / 100.4 | 1/4" | 3/8" |
| 109XPA | 3/8" | 76 (95) | 220 | 3.3 (1.4) | 12" (302) | 4 (113) | 24 (680) | 92.4 / 103.4 | 1/4" | 3/8" |
| 1207MAX-D3 | 3/8" | 65 (88) | 200 | 3.2 (1.45) | 10.8 (275) | 4 (113) | 23 (651) | 85.0/96.0 | 1/4" | 3/8" |
| 1/2" SQUARE DRIVE | ||||||||||
| 1077XPA* | 1/2" | 54 (73) | 160 | 2.75 (1.25) | 11" (279) | 4 (85) | 19 (510) | 94.4 / 105.4 | 1/4" | 3/8" |
| 1099XPA* | 1/2" | 76 (95) | 220 | 3.3 (1.4) | 12" (302) | 4 (113) | 24 (680) | 92.4 / 103.4 | 1/4" | 3/8" |
| 1207MAX-D4* | 1/2" | 65 (88) | 200 | 3.2 (1.45) | 10.8 (275) | 4 (113) | 23 (651) | 85.0/96.0 | 1/4" | 3/8" |
Looking for more information about Ingersoll Rand Ratchet Wrench? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Ratchet Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Ratchet Wrench
- Drive Size (in.)
- 1/2
- Switch Type (Actuation)
- Lever actuation,variable speed
- RPM
- 160
- Torque Range (ft-lbs)
- 10-45
- Torque Range (Nm)
- 14-61
- Max Torque (ft-lbs)
- 54
- Max Torque (Nm)
- 73
- Free Speed Sound Level (dbA)
- 94.4
- Length (in.)
- 11
- Length (mm)
- 279
- Average Air Consumption (CFM)
- 4
- Average Air Consumption (l/mn)
- 113
- Free Speed Air Consumption (CFM)
- 19
- Free Speed Air Consumption (l/mn)
- 530
- Air Inlet
- 1/4" NPTF
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
