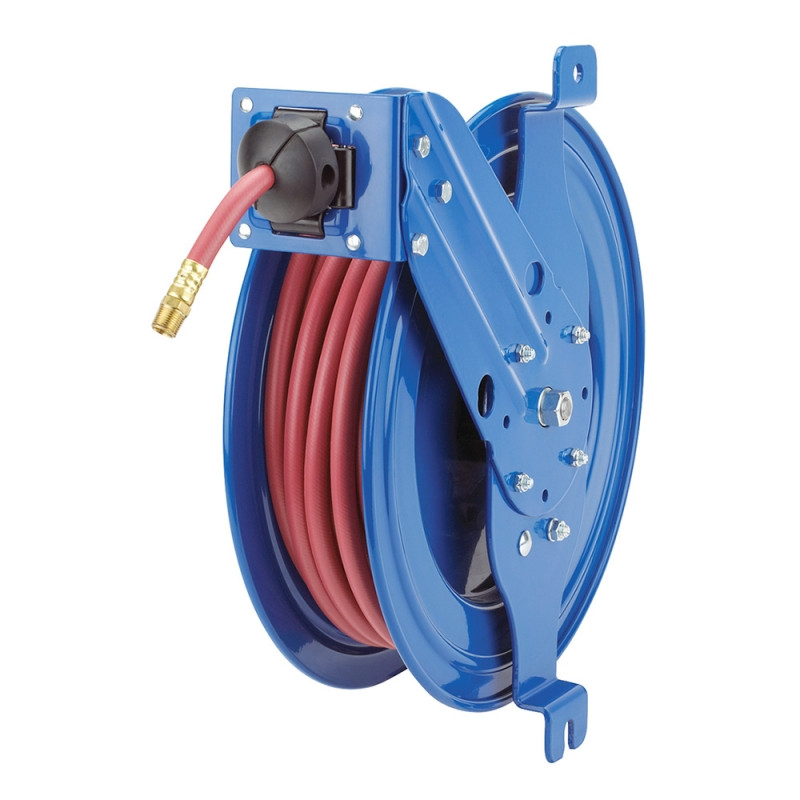

Built for dependable hose management in busy industrial and commercial work environments, the Coxreels SG17-L350 side mount reel with guide arm keeps compressed air hoses organized while providing smooth hose deployment and retrieval. Featuring the SG Series, a 3/8" hose diameter, 50 ft hose length, and a 300 PSI maximum operating pressure, this reel is well suited for automotive service facilities, maintenance departments, manufacturing plants, and workshop applications where longer hose reach and efficient storage are essential. The integrated guide arm (which directs the hose evenly across the spool during operation) helps minimize hose wear while promoting consistent winding.
Supplied with a factory-installed hose, the SG17-L350 provides a ready-to-install solution that reduces setup time while helping maintain a cleaner and safer work area. Its side mount configuration offers versatile installation options, making it easy to position the reel where hose access is most convenient without sacrificing valuable floor space.
Type: Side Mount Hose Reel with Guide Arm | Series: SG Series | Hose I.D.: 3/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Mounting Style: Side Mount
Features:
- Side mount design provides flexible installation on walls, ceilings, workbenches, or equipment.
- Guide arm promotes even hose spooling to reduce hose abrasion and improve rewind performance.
- Supplied with a 50-foot, 3/8-inch hose for immediate installation and operation.
- Rated for applications up to 300 PSI when used with the supplied hose and compatible system components.
- Compact SG Series construction helps keep compressed air hoses organized and readily accessible.
- Designed for dependable daily operation in commercial and industrial service environments.
Made in USA:
Applications:
- Compressed air distribution in automotive repair shops and fleet maintenance facilities.
- Manufacturing workstations requiring extended hose reach and organized storage.
- Industrial maintenance departments servicing production machinery and equipment.
- Assembly and fabrication areas where efficient hose management improves productivity.
- Commercial workshops and service bays using compressed air and other compatible low-pressure fluid systems.
FAQs:
- Q: Does this reel include the hose?
A: Yes. The SG17-L350 is supplied with a factory-installed 50-foot, 3/8-inch hose for quick installation and immediate use. - Q: What is the purpose of the guide arm?
A: The guide arm helps direct the hose evenly across the spool during extension and rewind, reducing uneven winding and helping extend hose service life. - Q: What is the maximum operating pressure?
A: The reel is rated for a maximum working pressure of 300 PSI when used with the supplied hose and compatible air system components. - Q: Where can this reel be mounted?
A: The side mount configuration allows installation on walls, ceilings, machinery, or other suitable mounting surfaces to maximize workspace efficiency.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SG13-L125 | 1/4" | 1/2" | 25 | 300 | 25 | EZ-SG13-L125 | SG13L-L125 | 22 | 8 |
| SG13-L135 | 1/4" | 1/2" | 35 | 300 | 26 | EZ-SG13-L135 | SG13L-L135 | 23 | 8 |
| SG13-L325 | 3/8" | 5/8" | 25 | 300 | 26 | EZ-SG13-L325 | SG13L-L325 | 23 | 9 |
| SG17-L350 | 3/8" | 5/8" | 50 | 300 | 40 | EZ-SG17-L350 | SG17L-L350 | 33 | 10 |
| SG17-L430 | 1/2" | 3/4" | 30 | 300 | 42 | EZ-SG17-L430 | SG17L-L430 | 37 | 10 |
| SG19-L450 | 1/2" | 3/4" | 50 | 300 | 52 | EZ-SG19-L450 | SG19L-L450 | 44 | 12 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| SG17-M325 | 3/8" | 11/16" | 25 | 3,000 | 46 | EZ-SG17-M325 | SG17L-M325 | 39 | 10 |
| SG19-M350 | 3/8" | 11/16" | 50 | 3,000 | 63 | EZ-SG19-M350 | SG19L-M350 | 51 | 12 |
| SG17-M425 | 1/2" | 13/16" | 25 | 2,500 | 46 | EZ-SG17-M425 | SG17L-M425 | 39 | 11 |
| SG19-M450 | 1/2" | 13/16" | 50 | 2,500 | 65 | EZ-SG19-M450 | SG19L-M450 | 51 | 13 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and
hydraulic oil applications. Maximum Temperature 250°F. |
|||||||||
| SG17-H125 | 1/4" | 9/16" | 25 | 5,000 | 45 | EZ-SG17-H125 | SG17L-H125 | 39 | 11 |
| SG19-H150 | 1/4" | 9/16" | 50 | 5,000 | 62 | EZ-SG19-H150 | SG19L-H150 | 51 | 14 |
| SG17-H325 | 3/8" | 11/16" | 25 | 4,000 | 46 | EZ-SG17-H325 | SG17L-H325 | 39 | 11 |
| SG19-H350 | 3/8" | 11/16" | 50 | 4,000 | 63 | EZ-SG19-H350 | SG19L-H350 | 51 | 15 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
