Built for flexible hose management in compact industrial workspaces, the Coxreels SG13L-L325 side mount reel with guide arm provides dependable storage and controlled hose handling for compressed air and other compatible low-pressure applications. Featuring the SG Series, a 3/8" hose capacity, 25 ft hose length capacity, and a 300 PSI maximum operating pressure, this reel is well suited for automotive service centers, manufacturing facilities, maintenance departments, and workshop environments where efficient hose organization improves productivity. The integrated guide arm directs the hose evenly across the spool during operation, helping reduce hose wear and ensuring smooth payout and rewind.
This model is supplied in a less hose configuration, allowing users to install a hose assembly that best suits their application and media requirements. The side mount design offers versatile installation options while helping maintain an organized work area and protecting hose assemblies from unnecessary abrasion, kinking, and tangling.

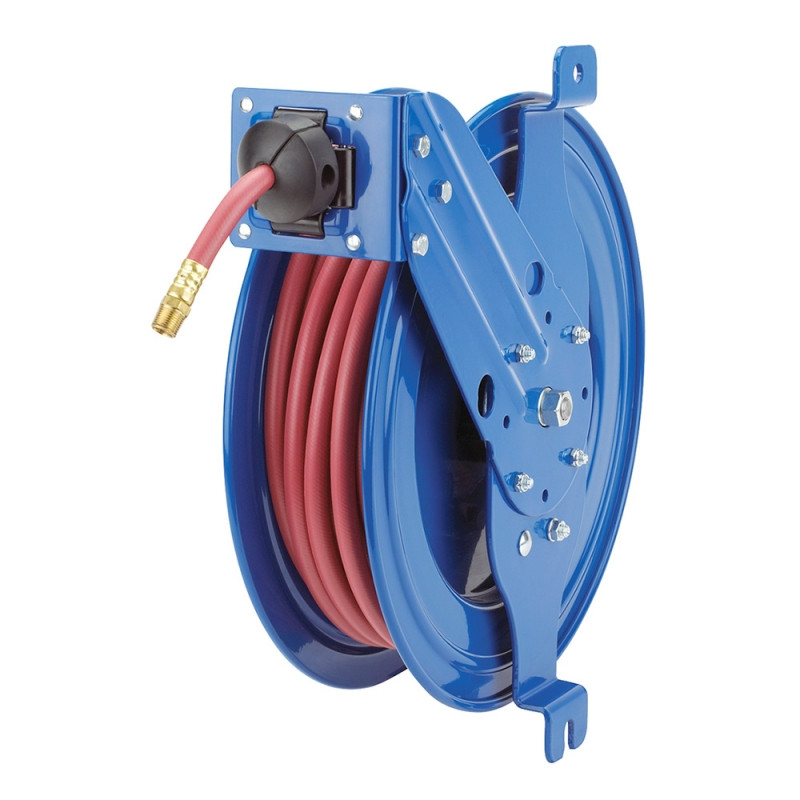

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Side Mount Reel with Guide Arm | Series: SG Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 25 ft | Max Pressure: 300 PSI | Mounting Style: Side Mount
Features:
- Side mount reel design allows flexible installation on walls, ceilings, benches, or equipment.
- Guide arm promotes smooth hose payout and evenly distributes the hose during rewind to help reduce wear.
- Accommodates up to 25 feet of 3/8-inch hose capacity.
- 300 PSI maximum operating pressure supports compressed air and other compatible low-pressure applications.
- Less hose configuration provides flexibility to install the hose assembly best suited for the intended application.
- SG Series construction offers dependable hose management for commercial and industrial work environments.
Made in USA:
Applications:
- Compressed air systems in automotive repair shops and fleet maintenance facilities.
- Industrial manufacturing workstations requiring organized hose storage.
- Maintenance departments servicing production equipment and machinery.
- Assembly areas where compact hose management improves workplace safety and efficiency.
- General workshop and commercial facilities using compressed air or other compatible low-pressure fluid systems.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install a compatible hose assembly that meets your specific application requirements. - Q: What is the purpose of the guide arm?
A: The guide arm helps direct the hose evenly across the spool during extension and rewind, reducing uneven winding and helping extend hose life. - Q: Does this reel include a hose?
A: No. The SG13L-L325 is a less hose model and is supplied as the reel only. - Q: What is the maximum operating pressure?
A: The reel is rated for applications up to 300 PSI when used with properly rated hose assemblies and compatible system components.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SG13-L125 | 1/4" | 1/2" | 25 | 300 | 25 | EZ-SG13-L125 | SG13L-L125 | 22 | 8 |
| SG13-L135 | 1/4" | 1/2" | 35 | 300 | 26 | EZ-SG13-L135 | SG13L-L135 | 23 | 8 |
| SG13-L325 | 3/8" | 5/8" | 25 | 300 | 26 | EZ-SG13-L325 | SG13L-L325 | 23 | 9 |
| SG17-L350 | 3/8" | 5/8" | 50 | 300 | 40 | EZ-SG17-L350 | SG17L-L350 | 33 | 10 |
| SG17-L430 | 1/2" | 3/4" | 30 | 300 | 42 | EZ-SG17-L430 | SG17L-L430 | 37 | 10 |
| SG19-L450 | 1/2" | 3/4" | 50 | 300 | 52 | EZ-SG19-L450 | SG19L-L450 | 44 | 12 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| SG17-M325 | 3/8" | 11/16" | 25 | 3,000 | 46 | EZ-SG17-M325 | SG17L-M325 | 39 | 10 |
| SG19-M350 | 3/8" | 11/16" | 50 | 3,000 | 63 | EZ-SG19-M350 | SG19L-M350 | 51 | 12 |
| SG17-M425 | 1/2" | 13/16" | 25 | 2,500 | 46 | EZ-SG17-M425 | SG17L-M425 | 39 | 11 |
| SG19-M450 | 1/2" | 13/16" | 50 | 2,500 | 65 | EZ-SG19-M450 | SG19L-M450 | 51 | 13 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and
hydraulic oil applications. Maximum Temperature 250°F. |
|||||||||
| SG17-H125 | 1/4" | 9/16" | 25 | 5,000 | 45 | EZ-SG17-H125 | SG17L-H125 | 39 | 11 |
| SG19-H150 | 1/4" | 9/16" | 50 | 5,000 | 62 | EZ-SG19-H150 | SG19L-H150 | 51 | 14 |
| SG17-H325 | 3/8" | 11/16" | 25 | 4,000 | 46 | EZ-SG17-H325 | SG17L-H325 | 39 | 11 |
| SG19-H350 | 3/8" | 11/16" | 50 | 4,000 | 63 | EZ-SG19-H350 | SG19L-H350 | 51 | 15 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
