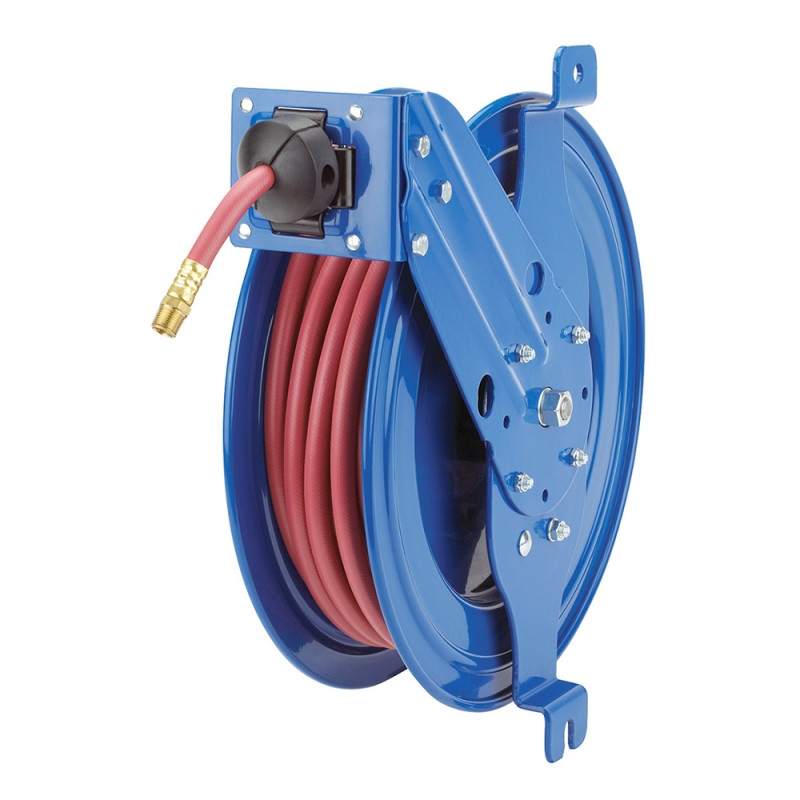

Built for efficient hose management in compact workspaces, the Coxreels SG13-L325 side mount reel with guide arm provides controlled hose storage and smooth payout for air and low-pressure fluid transfer applications. Featuring the SG Series, a 3/8" hose capacity, 25 ft hose length, and a 300 PSI maximum operating pressure, this reel is well suited for automotive service bays, maintenance shops, manufacturing facilities, and general industrial workstations. The integrated guide arm helps direct the hose evenly onto the spool, reducing wear while allowing the reel to be mounted in multiple orientations.
Supplied with hose installed, the SG13-L325 offers a ready-to-use hose management solution that helps minimize clutter, improve workplace safety, and protect the hose from unnecessary kinking and abrasion. Its side mount design provides installation flexibility while maintaining smooth hose operation in demanding daily service environments.
Type: Side Mount Hose Reel with Guide Arm | Series: SG Series | Hose I.D.: 3/8" | Hose Length: 25 ft | Max Pressure: 300 PSI | Mounting Style: Side Mount
Features:
- Side mount reel design provides flexible installation for walls, ceilings, benches, and equipment.
- Guide arm helps direct the hose evenly across the spool to reduce hose wear during extension and retraction.
- Supplied with a 25-foot, 3/8-inch hose for immediate installation and use.
- 300 PSI maximum working pressure supports compressed air and other compatible low-pressure applications.
- Compact SG Series construction helps maintain organized work areas while protecting hose assemblies.
- Designed for dependable daily hose management in commercial and industrial environments.
Made in USA:
Applications:
- Compressed air distribution in automotive repair and fleet maintenance facilities.
- Manufacturing workstations requiring organized hose storage and quick access.
- Maintenance departments servicing machinery and production equipment.
- Service garages and workshops where compact hose management improves efficiency.
- General industrial facilities using compressed air and compatible low-pressure fluid systems.
FAQs:
- Q: What is the purpose of the guide arm?
A: The guide arm helps route the hose evenly onto the reel during retraction, reducing uneven winding and minimizing hose wear. - Q: Does this reel include the hose?
A: Yes. Unlike "less hose" models, the SG13-L325 is supplied with a 25-foot, 3/8-inch hose. - Q: What is the maximum working pressure?
A: The reel is rated for a maximum operating pressure of 300 PSI when used with the supplied hose and compatible system components. - Q: Where can this reel be mounted?
A: The side mount design provides installation flexibility for a variety of shop and industrial mounting locations while the guide arm helps maintain smooth hose operation.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SG13-L125 | 1/4" | 1/2" | 25 | 300 | 25 | EZ-SG13-L125 | SG13L-L125 | 22 | 8 |
| SG13-L135 | 1/4" | 1/2" | 35 | 300 | 26 | EZ-SG13-L135 | SG13L-L135 | 23 | 8 |
| SG13-L325 | 3/8" | 5/8" | 25 | 300 | 26 | EZ-SG13-L325 | SG13L-L325 | 23 | 9 |
| SG17-L350 | 3/8" | 5/8" | 50 | 300 | 40 | EZ-SG17-L350 | SG17L-L350 | 33 | 10 |
| SG17-L430 | 1/2" | 3/4" | 30 | 300 | 42 | EZ-SG17-L430 | SG17L-L430 | 37 | 10 |
| SG19-L450 | 1/2" | 3/4" | 50 | 300 | 52 | EZ-SG19-L450 | SG19L-L450 | 44 | 12 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| SG17-M325 | 3/8" | 11/16" | 25 | 3,000 | 46 | EZ-SG17-M325 | SG17L-M325 | 39 | 10 |
| SG19-M350 | 3/8" | 11/16" | 50 | 3,000 | 63 | EZ-SG19-M350 | SG19L-M350 | 51 | 12 |
| SG17-M425 | 1/2" | 13/16" | 25 | 2,500 | 46 | EZ-SG17-M425 | SG17L-M425 | 39 | 11 |
| SG19-M450 | 1/2" | 13/16" | 50 | 2,500 | 65 | EZ-SG19-M450 | SG19L-M450 | 51 | 13 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and
hydraulic oil applications. Maximum Temperature 250°F. |
|||||||||
| SG17-H125 | 1/4" | 9/16" | 25 | 5,000 | 45 | EZ-SG17-H125 | SG17L-H125 | 39 | 11 |
| SG19-H150 | 1/4" | 9/16" | 50 | 5,000 | 62 | EZ-SG19-H150 | SG19L-H150 | 51 | 14 |
| SG17-H325 | 3/8" | 11/16" | 25 | 4,000 | 46 | EZ-SG17-H325 | SG17L-H325 | 39 | 11 |
| SG19-H350 | 3/8" | 11/16" | 50 | 4,000 | 63 | EZ-SG19-H350 | SG19L-H350 | 51 | 15 |
