Built for applications requiring dependable manual hose management, the Coxreels 1275-4-200-A dual hose bevel gear hand crank reel provides controlled hose storage and retrieval for high-pressure fluid transfer systems. Featuring a 1275 Series design, 1/2" hose capacity, 200 ft hose length, and a 3000 PSI maximum operating pressure, this reel is well suited for hydraulic, lubrication, and industrial service applications where long hose assemblies must be stored safely and deployed efficiently. Its bevel gear hand crank mechanism provides increased mechanical advantage, making it easier to rewind longer hose lengths while maintaining smooth, controlled operation.
Supplied in a less hose configuration, this reel allows users to install hose assemblies that best match their equipment and operating requirements. The dual hose design manages two independent hose lines on a single reel assembly, helping reduce hose wear, minimize workplace clutter, and improve overall organization in demanding industrial environments.

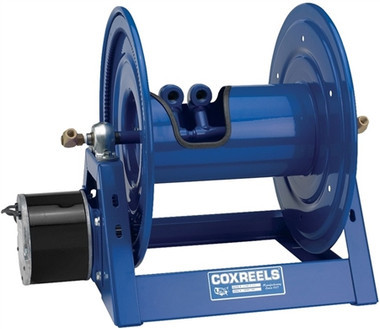

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hose Bevel Gear Hand Crank Reel | Series: 1275 Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 3000 PSI | Rewind: Bevel Gear Hand Crank
Features:
- Bevel gear hand crank mechanism provides additional leverage for smooth manual hose retrieval.
- Dual hose reel configuration manages two separate hose lines from a single reel assembly.
- Designed to accommodate up to 200 feet of 1/2-inch hose capacity.
- 3000 PSI maximum pressure rating for compatible high-pressure hose applications.
- Less hose configuration allows users to install hose assemblies that best suit their system requirements.
- 1275 Series construction delivers reliable hose management for industrial fluid transfer operations.
Made in USA:
Applications:
- Hydraulic service systems utilizing long dual hose assemblies.
- Industrial manufacturing facilities requiring organized hose storage and deployment.
- Lubrication and fluid transfer operations handling high-pressure service lines.
- Maintenance departments seeking controlled manual hose rewind without external power.
- Mobile service vehicles and field maintenance equipment using extended hose lengths.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose installed. Compatible hose must be selected and installed separately to meet your application requirements. - Q: What is the advantage of the bevel gear hand crank?
A: The bevel gear drive provides greater mechanical advantage than a direct hand crank, making it easier to rewind longer and heavier hose assemblies. - Q: Can this reel accommodate two hoses?
A: Yes. The 1275-4-200-A is designed to manage two independent hose lines on one reel assembly. - Q: Is this reel suitable for 3000 PSI applications?
A: Yes, when used with properly rated hose assemblies and fittings that meet or exceed the system's operating pressure.
| LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1275-4-200-A | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-C | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-E | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-EA | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-EB | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-ED | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-EF | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-EJ | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
| 1275-4-200-H | 1/2" | 7/8" | 2/200 | 3/8" | 3/4" | 2/300 | 1/2" F NPT | 3,000 | 56 | 4 |
