Built for increased-volume delivery applications that require powered retrieval of large-diameter hose, the Coxreels 1185-1524-EA Electric Motor Rewind Hose Reel stores up to 75 ft of 1-1/2 in. I.D. hose. Its 115V AC motor rewind configuration uses a chain-and-sprocket drive to transfer power to the reel drum, reducing the manual effort required to retrieve a long, heavy hose assembly. The intermediate 75 ft capacity provides additional reach over shorter 1185 Series models while maintaining a compact mounting footprint.
The 1185-1524-EA is rated for a 1,500 PSI maximum working pressure and features an external fluid path with an in-line full-flow NPT swivel inlet. Coxreels' low-profile outlet riser and open drum slot create a non-crimping, flat, smooth hose wrap during retrieval. A one-piece, CNC robotically welded 12-gauge steel A-frame base supports the additional weight of large-diameter hose, while lubricated horizontal surface-mount bearings assist reel rotation. This model is supplied without hose, so a compatible hose assembly can be selected separately.

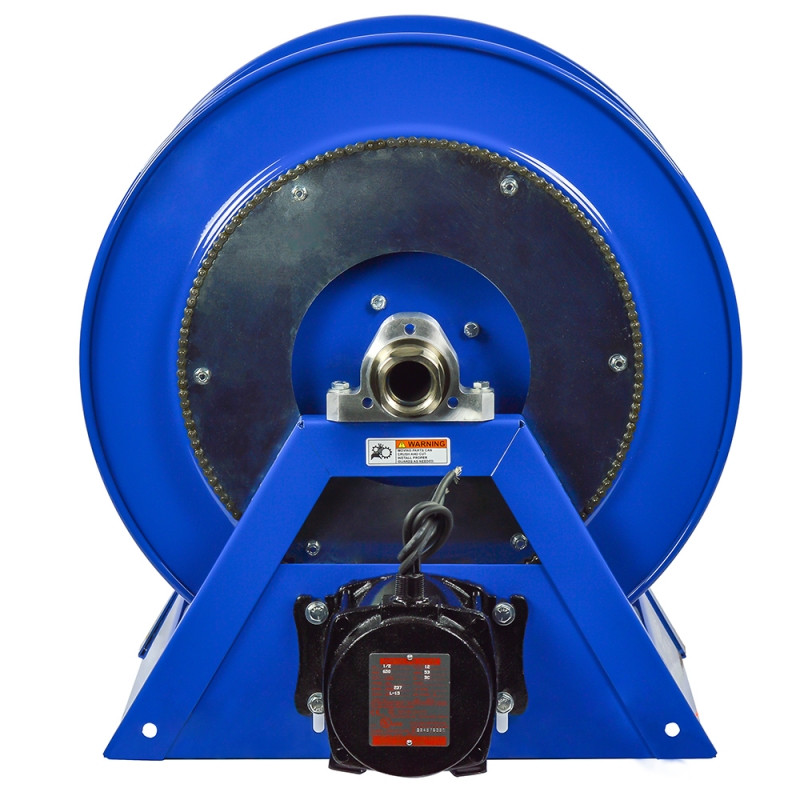

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric AC Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1524-EA | Configuration: Less Hose | Motor Voltage: 115V AC | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 75 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 30.13 in. W x 26 in. H x 24 in. L | Mounting Pattern: 18.75 in. M x 16 in. N | Base Dimensions: 21 in. X x 22.25 in. Y
Features:
- 115V AC electric motor configuration provides powered hose retrieval.
- Reliable chain-and-sprocket drive transfers motor power to the reel drum.
- External fluid path incorporates an in-line full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Exclusive low-profile outlet riser and open drum slot provide a non-crimping, flat, smooth hose wrap.
- One-piece, CNC robotically welded 12-gauge steel A-frame base strengthens the reel structure.
- Lubricated horizontal surface-mount bearings support easy reel rotation.
- Adjustable tension brake helps prevent free-wheeling during operation.
- CNC-spun ribbed discs with rolled edges provide strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery systems using compatible large-diameter hose.
- Mobile applications requiring powered retrieval of a 75 ft hose assembly.
- Stationary hose-handling installations equipped with a compatible 115V AC power supply.
- Applications operating within the reels' published hose-capacity and maximum-pressure limits.
FAQs:
- Q: Does the Coxreels 1185-1524-EA include hose?
A: No. Coxreels lists the hose field as "No," meaning the reel is supplied without hose. A compatible hose must be selected and installed separately. - Q: What hose size and length will this reel hold?
A: The manufacturer lists a capacity of 75 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: What electrical supply does this reel use?
A: The EA configuration uses a 115V AC electric motor rewind system. - Q: What is the maximum working pressure?
A: Coxreels rates the 1185-1524-EA for a maximum working pressure of 1,500 PSI. - Q: What mounting space is required?
A: The reel measures 30.13 in. wide by 26 in. high by 24 in. long, with an 18.75 in. by 16 in. mounting pattern.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1524 | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-A | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-AB | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-C | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-E | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-EA | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-ED | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-EF | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-H | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motor Rewind Hose Reel
- Series
- 1185 Series
- Hose Inside Diameter (in.)
- 1-1/2
- Hose Outside Diameter (in.)
- 2-1/16
- Hose Length (ft.)
- 75
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 1500
- Width (in.)
- 30.13
- Height (in.)
- 26
- Length (in.)
- 24
- Mounting Pattern (in.)
- 18.75M
- Mounting Pattern (in.)
- 16N
- Base (in.)
- 21X
- Base (in.)
- 22.25Y
