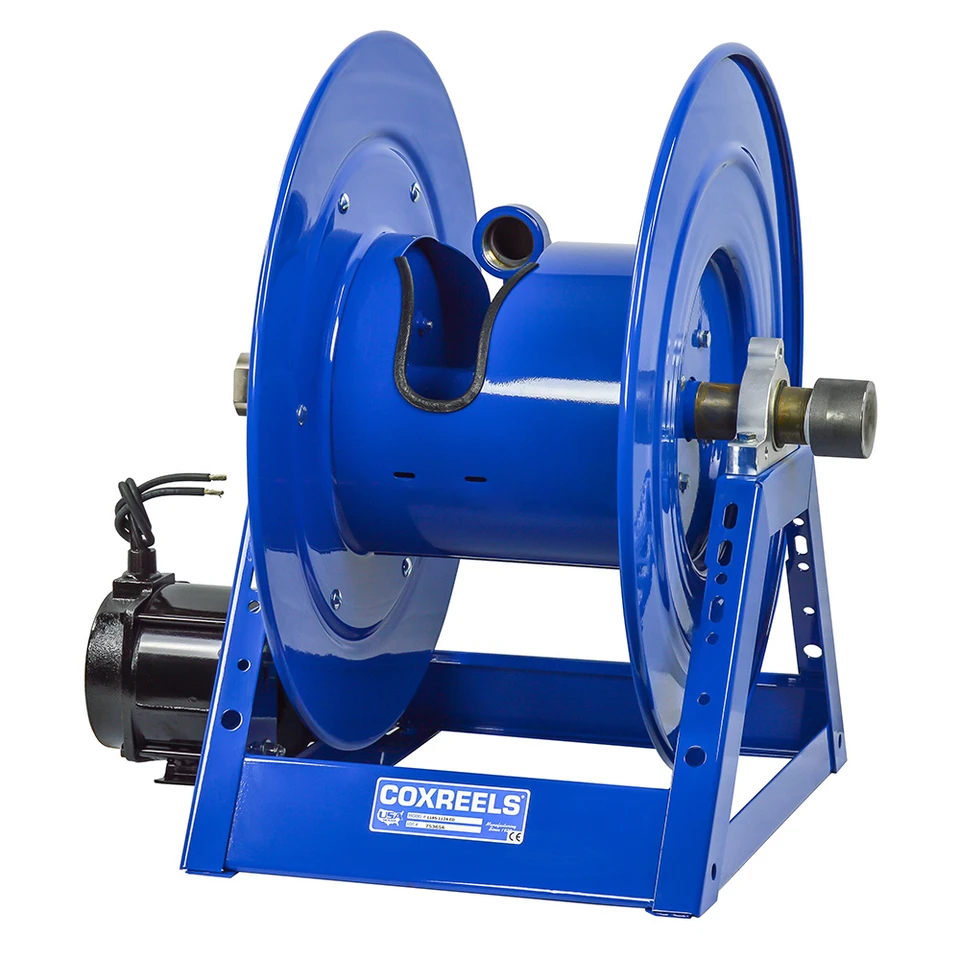

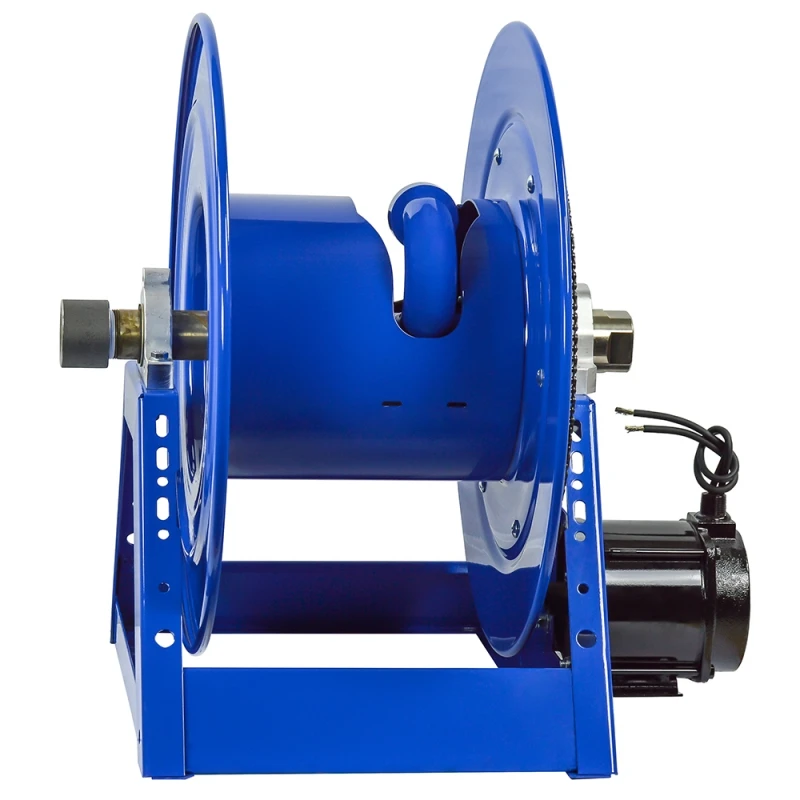

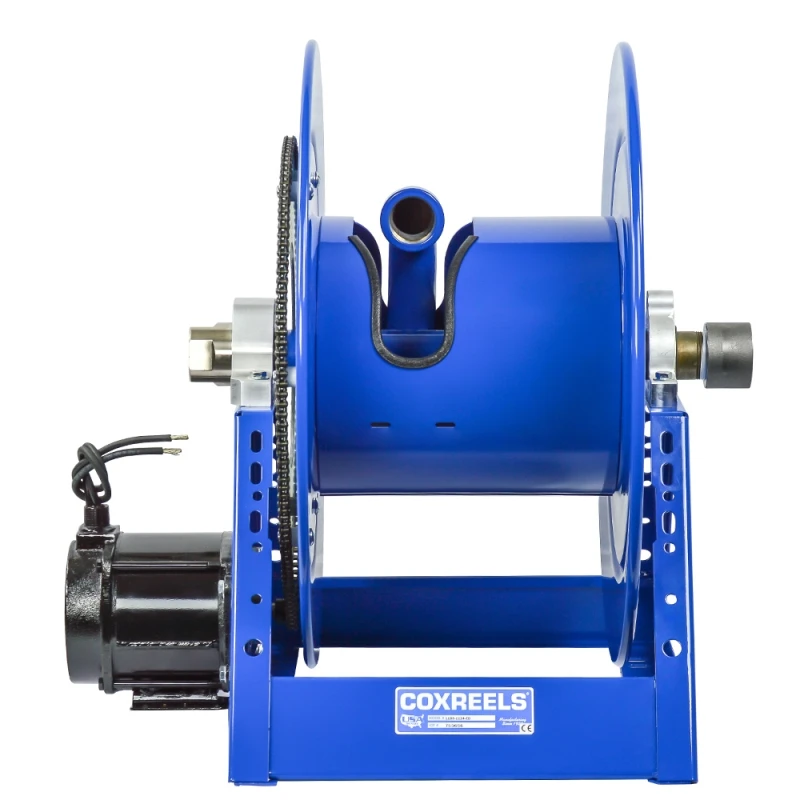

Built to manage long lengths of large-diameter hose for increased-volume delivery, the Coxreels 1185-1524-H Hydraulic Motor Rewind Hose Reel provides powered retrieval for up to 75 ft of 1-1/2 in. I.D. hose. Its hydraulic motor configuration drives the reel through a reliable chain-and-sprocket system, reducing the manual effort required to return a substantial hose assembly to the drum. The reel's welded A-frame construction supports the additional hose weight associated with mobile and stationary delivery systems.
This 1185 Series model is rated for a 1,500 PSI maximum working pressure and incorporates an external fluid path with an in-line full-flow NPT swivel inlet. Coxreels' exclusive low-profile outlet riser and open drum slot promote a non-crimping, flat, smooth hose wrap. Lubricated horizontal surface-mount bearings assist reel rotation, while an adjustable tension brake helps prevent free-wheeling during operation. The reel is supplied without hose so a compatible hose assembly can be selected separately.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hydraulic Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1524-H | Configuration: Less Hose | Rewind Type: Hydraulic Motor | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 75 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 27.38 in. W x 26 in. H x 24 in. L | Mounting Pattern: 18.75 in. M x 16 in. N | Base Dimensions: 21 in. X x 22.25 in. Y
Features:
- Hydraulic motor configuration provides powered retrieval of large-diameter hose.
- Reliable chain-and-sprocket drive transfers motor power to the reel drum.
- External fluid path incorporates an in-line full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Exclusive low-profile outlet riser and open drum slot provide a non-crimping, flat, smooth hose wrap.

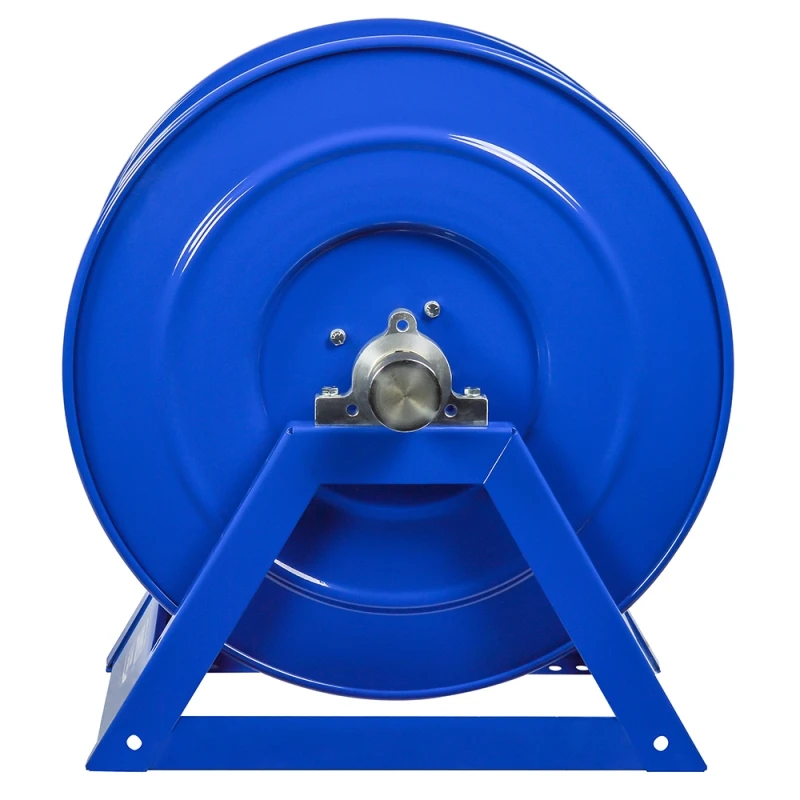

- All-welded steel A-frame construction strengthens the reel structure.
- Lubricated horizontal surface-mount bearings support easy reel rotation.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Rolled edges and ribbed discs provide strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery systems using compatible large-diameter hose.
- Mobile applications requiring powered retrieval of a 75 ft hose assembly.
- Stationary installations equipped with a compatible hydraulic power source.
- Hose-handling systems operating within the reels' published capacity and pressure limits.
FAQs:
- Q: Does the Coxreels 1185-1524-H include hose?
A: No. Coxreels lists the hose field as "No," meaning the reel is supplied without hose. A compatible hose must be selected and installed separately. - Q: What hose size and length will this reel hold?
A: The manufacturer lists a capacity of 75 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: How is the hose rewound?
A: The H configuration uses a hydraulic motor connected to the reel through a chain-and-sprocket drive. - Q: What is the maximum working pressure?
A: Coxreels rates the 1185-1524-H for a maximum working pressure of 1,500 PSI. - Q: What mounting space is required?
A: The reel measures 27.38 in. wide by 26 in. high by 24 in. long, with an 18.75 in. by 16 in. mounting pattern.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1524 | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-A | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-AB | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-C | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-E | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-EA | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-ED | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-EF | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-H | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hydraulic Motor Rewind Hose Reel
- Series
- 1185 Series
- Hose Inside Diameter (in.)
- 1-1/2
- Hose Outside Diameter (in.)
- 2-1/16
- Hose Length (ft.)
- 75
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 1500
- Width (in.)
- 27.38
- Height (in.)
- 26
- Length (in.)
- 24
- Mounting Pattern (in.)
- 18.75M
- Mounting Pattern (in.)
- 16N
- Base (in.)
- 21X
- Base (in.)
- 22.25Y
