Coxreels 1185-1524-E Electric DC Non-Explosion Proof Motor Rewind Hose Reel | 1185 Series | 1-1/2" Hose Diameter | 75' Hose Length | 1500 Max PSI | Less Hose

Built for powered retrieval of large-diameter hose in a 75 ft capacity configuration, the Coxreels 1185-1524-E electric DC non-explosion proof motor rewind hose reel provides 1-1/2" I.D. x 75 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is designed for increased-volume delivery applications where fleet service teams, plant maintenance crews, utility operators, and mobile service setups need a strong reel platform for heavier hose with DC-powered rewind.

This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fitting, and power requirements. The electric DC non-explosion proof motor rewind reduces manual hose retrieval effort where compatible DC power is available, while Coxreels' all-welded steel 'A' frame supports heavier hose loads. The low profile outlet riser and open drum slot help guide hose into a flatter, smoother wrap, and the adjustable tension brake helps control drum movement during payout and rewind.

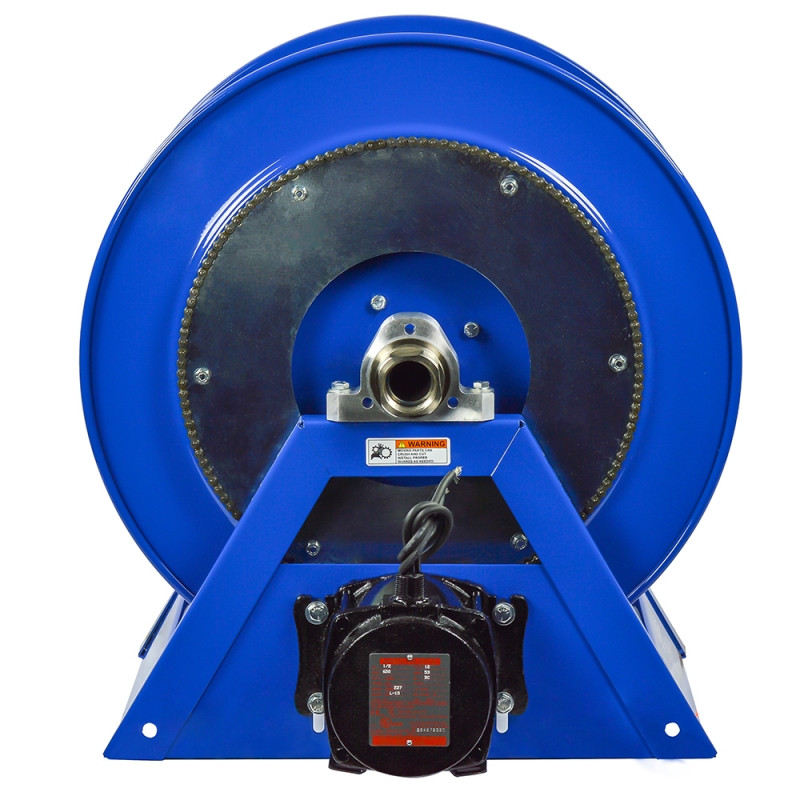

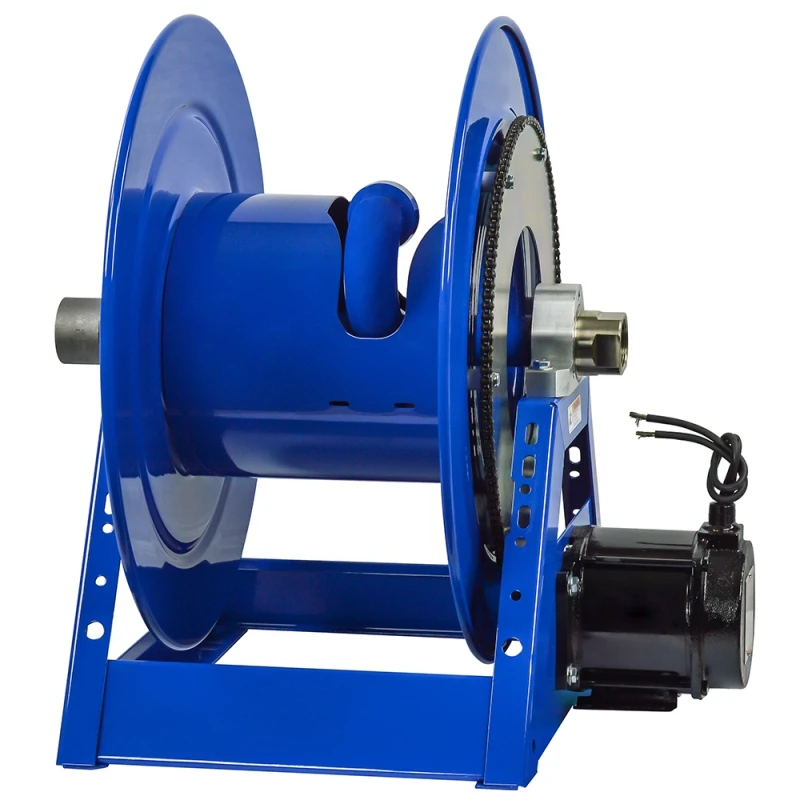

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Non-Explosion Proof Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1524-E | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 75 ft | Hose Included: No | Max Pressure: 1500 PSI

Features:

• Electric DC non-explosion proof motor rewind provides powered hose retrieval where manual crank operation is not preferred.
• 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
• 1-1/2" x 75 ft hose capacity provides a middle-capacity option between shorter 70 ft reels and longer 125 ft configurations.
• All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
• Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
• External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
• Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Reliable chain and sprocket drive supports motor-driven rewind operation.
• Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
• CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial fluid transfer stations requiring 75 ft of large 1-1/2" hose capacity with powered DC rewind.
• Fleet and heavy equipment service areas where large-diameter hose needs to be retrieved and stored neatly after maintenance or transfer work.
• Mobile service trucks and trailers where DC motor rewind is preferred over air motor rewind or hand crank operation.
• Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
• Construction, utility, and field service operations that need a rugged 'A' frame reel platform with moderate hose reach.

FAQs:

• Q: Does the Coxreels 1185-1524-E include hose?
  A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application’s pressure, temperature, fluid, and fitting requirements.
• Q: What does electric DC non-explosion proof motor rewind mean?
  A: It means the reel uses a DC electric motor to rewind the hose and is not configured as an explosion-proof motor reel. Do not select this version for classified hazardous locations unless the complete installation has been reviewed and approved for that environment.
• Q: What hose size will this reel hold?
  A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 75 ft capacity. Hose outside diameter matters because a larger O.D. hose can reduce the amount of hose the reel can safely store.
• Q: Can this reel be used at 1500 PSI?
  A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing.
• Q: Why choose the 1185-1524-E instead of a hand crank model?
  A: The 1185-1524-E adds DC-powered rewind, which is helpful when frequent hose retrieval, hose weight, or mobile equipment layouts make manual cranking less efficient. A hand crank model may be sufficient where powered rewind is not needed.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
