Coxreels 1185-3328 Hand Crank Hose Reel | 1185 Series | 1 1/2" Hose Diameter | 250' Hose Length | 1500 Max PSI | Less Hose

Coxreels 1185-3328 Hand Crank Hose Reel is engineered for applications requiring exceptionally long lengths of large-diameter hose. Designed to accommodate 250 feet of 1 1/2-inch I.D. hose, this reel combines a robust steel frame with a 1,500 PSI maximum pressure rating to support compatible bulk liquid transfer, high-flow water service, oil distribution, and other industrial fluid-handling applications.

As part of the 1185 Series, this reel features Coxreels' heavy-duty all-welded steel "A" frame, an external full-flow swivel, and an exclusive low-profile outlet riser that promotes a smooth, non-crimping hose wrap. The direct hand crank provides dependable manual hose retrieval, while permanently lubricated bearings and a locking pin contribute to smooth operation and secure storage between uses.

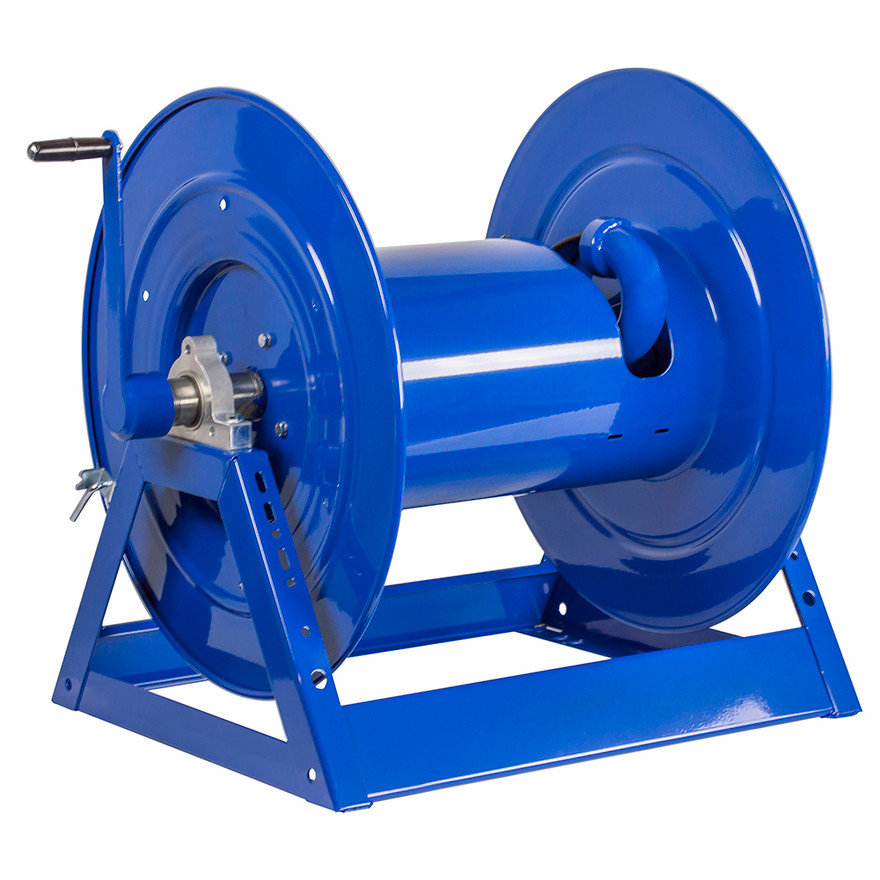

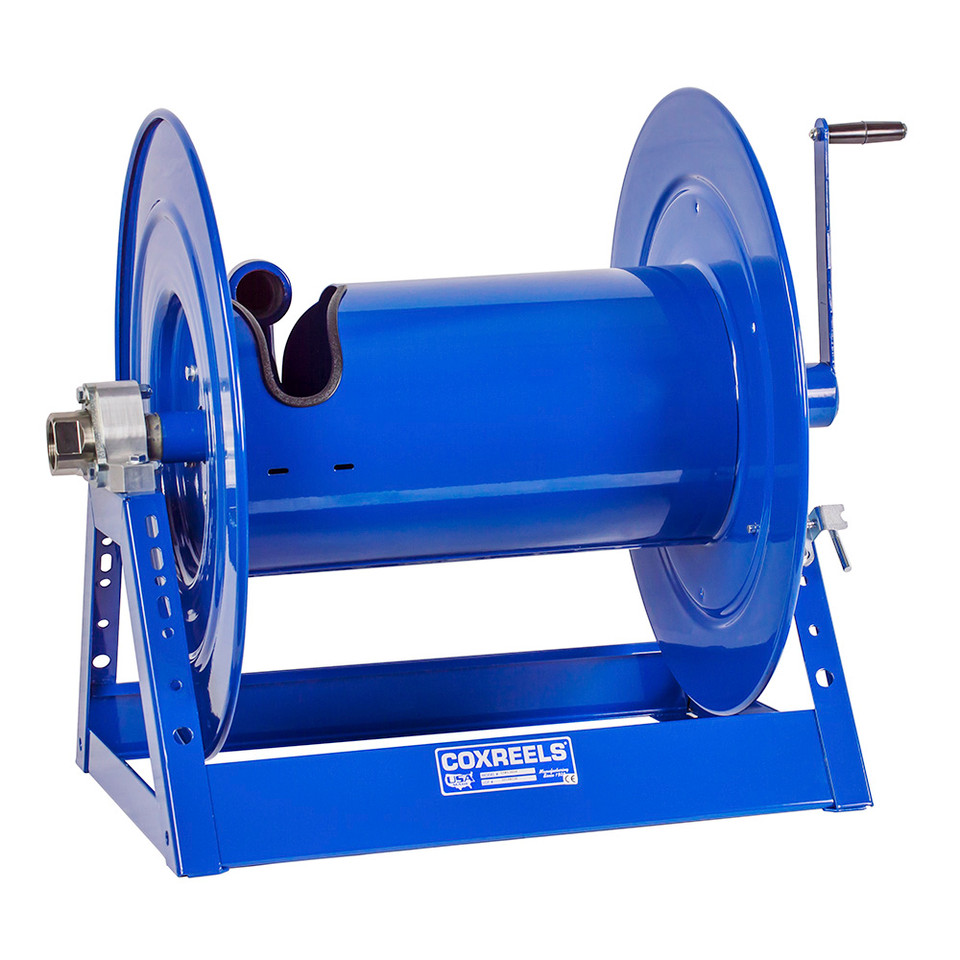

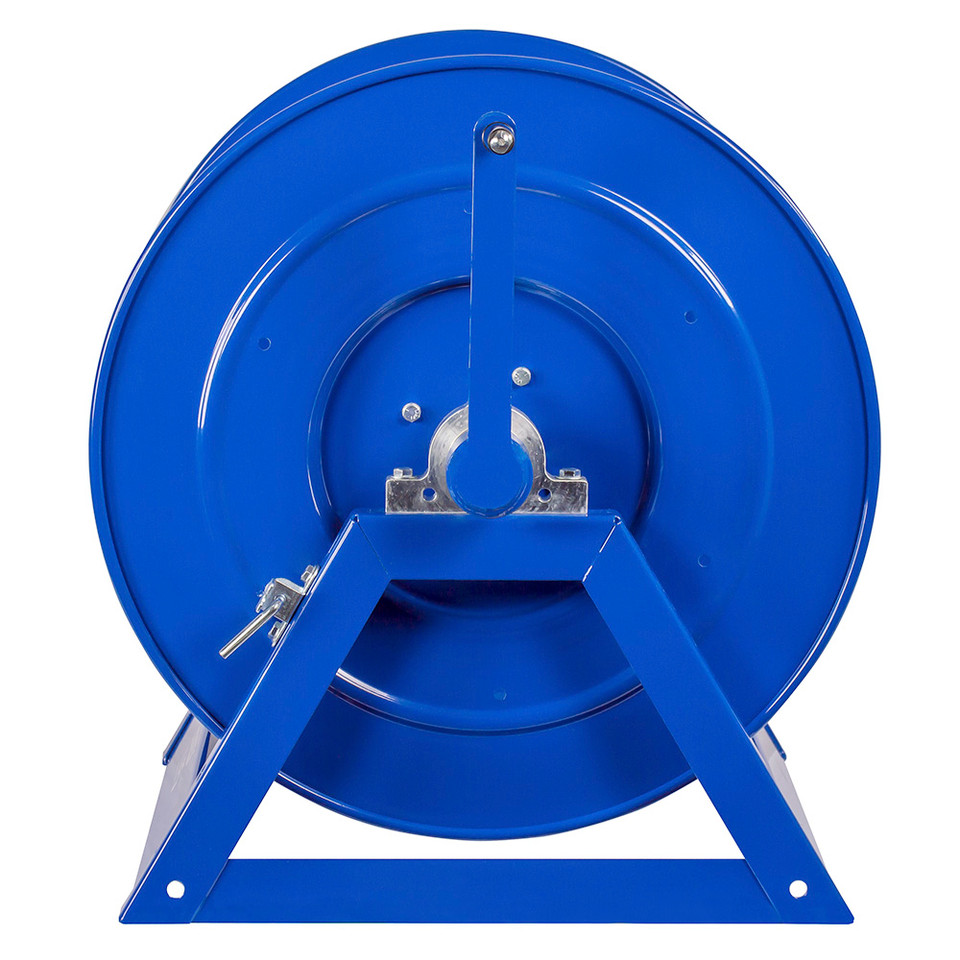

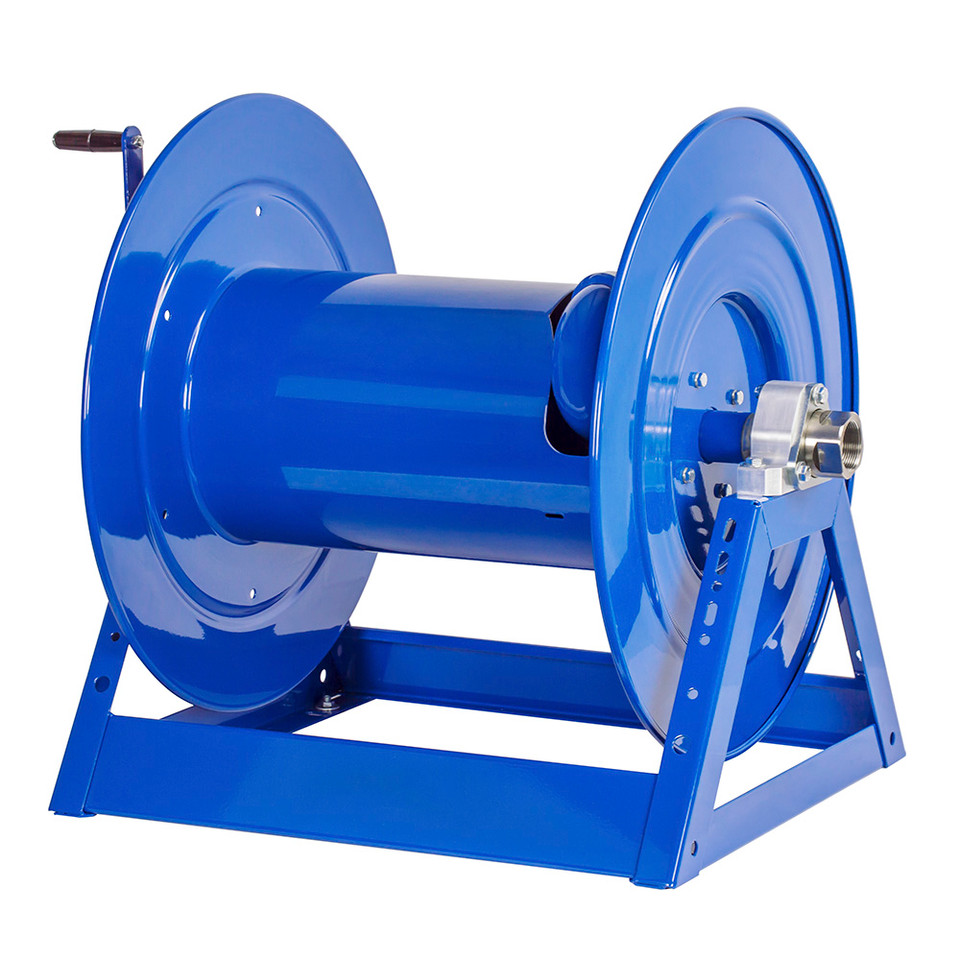

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Hose Reel | Series: 1185 Series | Configuration: Less Hose | Hose I.D.: 1 1/2" | Hose O.D.: 2 1/16" | Hose Capacity: 250 ft | Inlet Swivel and Outlet Riser: 1 1/2" Female NPT | Swivel Seal: Nitrile | Max Pressure: 1,500 PSI | Ship Weight: 169 lbs

Features:

• Stores up to 250 feet of 1 1/2-inch I.D. hose for extended-reach fluid transfer applications.
• Optional capacity accommodates up to 325 feet of 1 1/4-inch I.D. hose when used with the appropriate reducer.
• External in-line electroless nickel-plated steel full-flow NPT swivel simplifies seal maintenance and supports unrestricted fluid flow.
• Exclusive low-profile outlet riser and open drum slot provide a flat, smooth hose wrap that helps reduce hose wear.
• Heavy-duty CNC robotically spun ribbed steel discs with rolled edges improve strength, durability, hose protection, and operator safety.
• One-piece CNC robotically welded 12-gauge steel "A" frame delivers structural rigidity without bolted frame construction.
• Permanently lubricated horizontal surface-mount bearings provide smooth drum rotation during hose deployment and retrieval.
• Additional features include a chip-resistant CPC powder coat finish, long-handled locking pin, and solid steel direct hand crank for reliable manual rewind.

Made in USA:

2 Year Warranty

Applications:

• Bulk liquid transfer systems requiring extended hose storage capacity.
• Industrial water distribution and washdown operations.
• Oil and lubrication transfer systems using compatible hose and fittings.
• Municipal, mining, agricultural, and construction service equipment.
• Stationary plants, service trucks, trailers, and skid-mounted fluid handling systems.

FAQs:

• Q: Does the 1185-3328 include a hose?
  A: No. This reel is supplied less hose. A compatible hose must be selected and installed separately.
• Q: What hose capacity does this reel provide?
  A: The reel is designed to hold up to 250 feet of 1 1/2-inch I.D. hose with an outside diameter of approximately 2 1/16 inches.
• Q: Can this reel store a different hose size?
  A: Yes. With the appropriate reducer, the reel can accommodate up to 325 feet of 1 1/4-inch I.D. hose with a 1 13/16-inch outside diameter.
• Q: Is this a spring rewind model?
  A: No. The 1185-3328 uses a direct hand crank for controlled manual hose retrieval.
• Q: What helps protect the hose during winding?
  A: The exclusive low-profile outlet riser, open drum slot, and ribbed steel drum help maintain a smooth, non-crimping hose wrap while reducing wear during operation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
