Built for powered retrieval of maximum-reach, large-diameter hose runs, the Coxreels 1185-3328-A #4 Gast Air Motor Rewind Hose Reel provides 1-1/2" I.D. x 250 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is designed for increased-volume delivery applications where fleet service teams, plant maintenance crews, utility operators, and mobile service setups need a strong reel platform for heavy hose with compressed-air-powered rewind.
This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fittings, and system requirements. The #4 Gast air motor rewind uses compressed air to power hose retrieval, helping reduce manual winding effort when handling very long hose lengths. Coxreels' all-welded steel 'A' frame supports heavier hose loads, while the low profile outlet riser and open drum slot help guide hose into a flatter, smoother wrap during rewind.

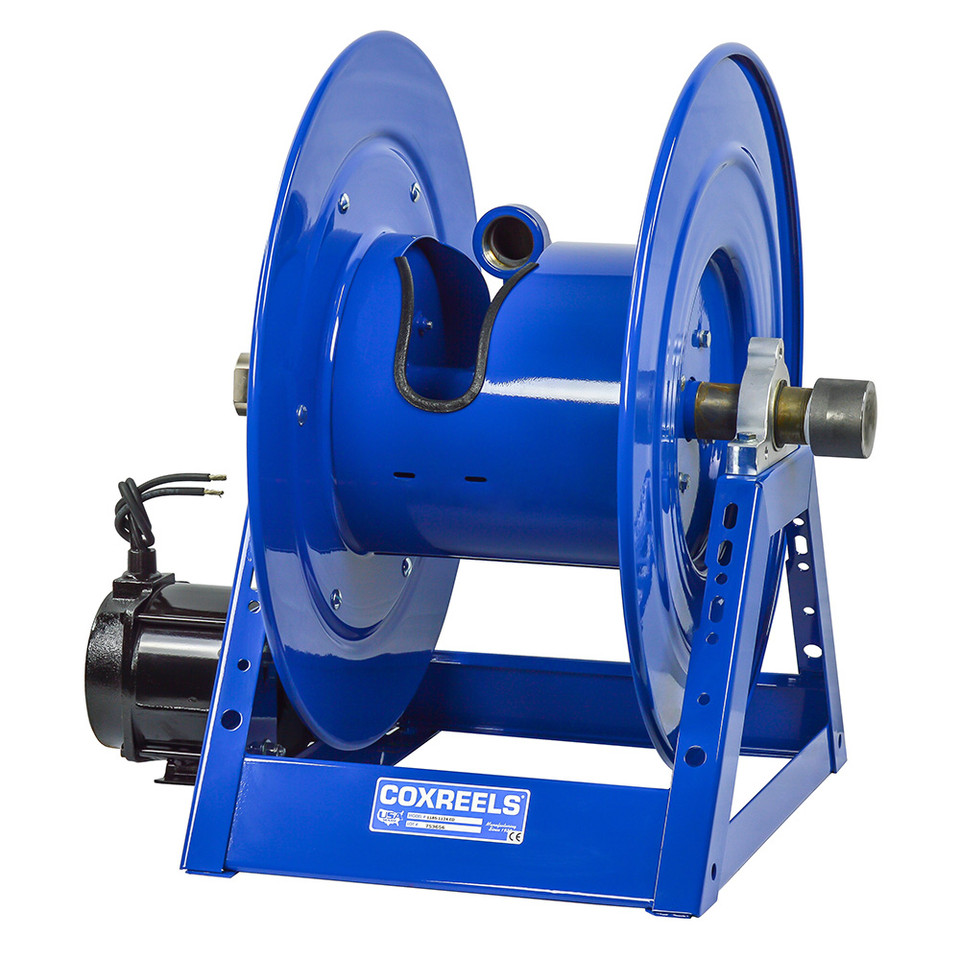

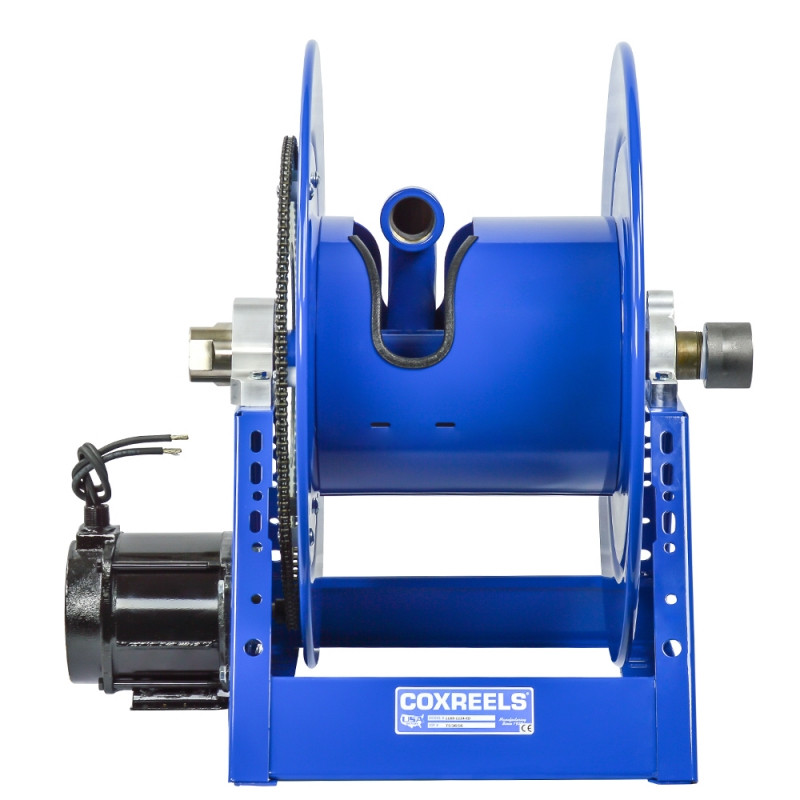

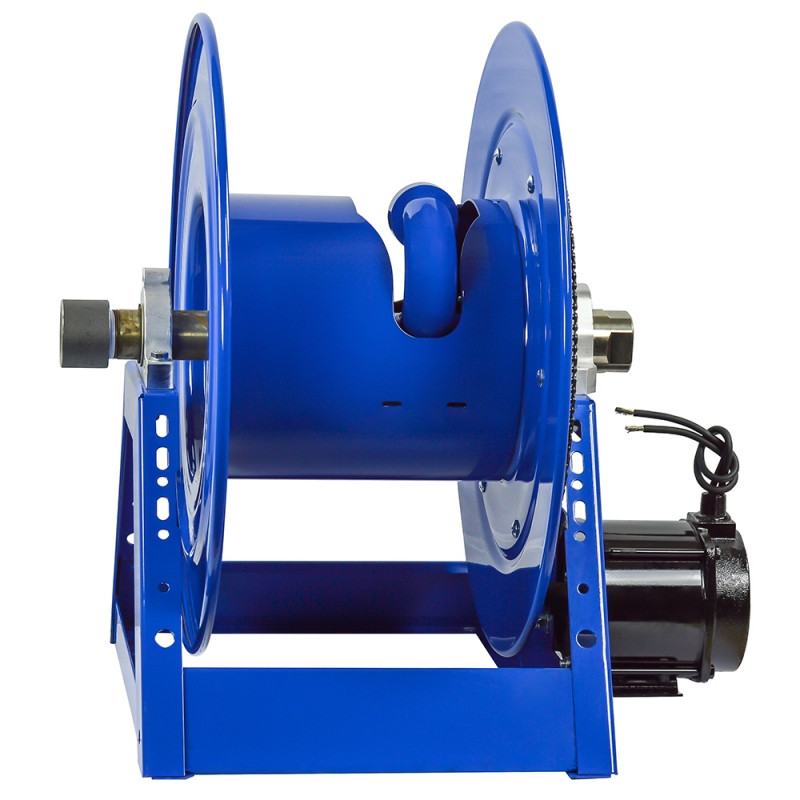

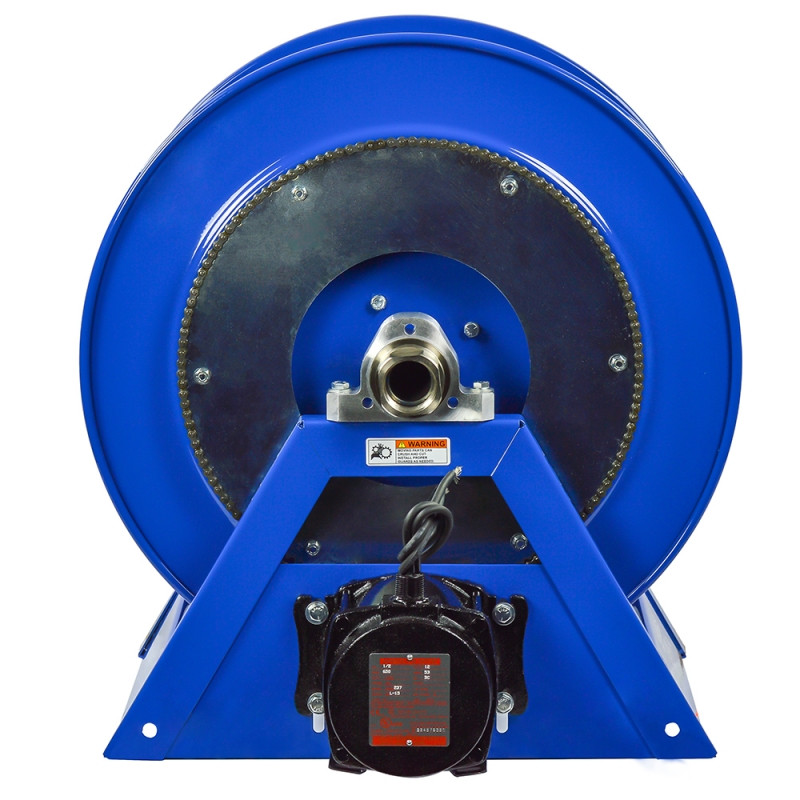

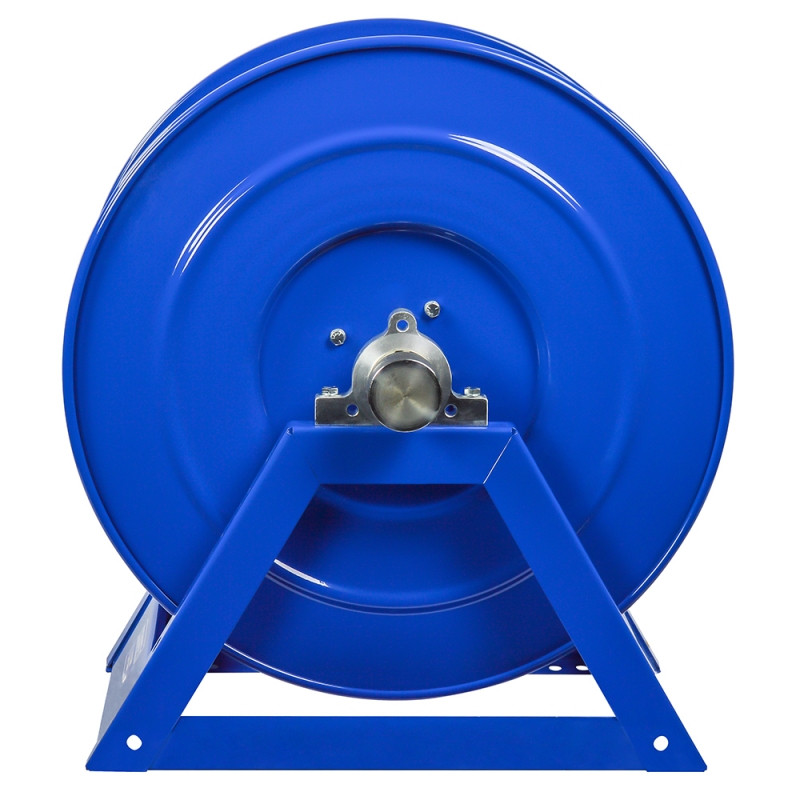

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Air Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-3328-A | Motor: #4 Gast Air Motor | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 250 ft | Hose Included: No | Max Pressure: 1500 PSI
Features:
- #4 Gast air motor rewind uses compressed air to retrieve large-diameter hose with less manual winding effort.
- 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
- 1-1/2" x 250 ft hose capacity supports extended reach for large-volume transfer layouts, remote work points, and wide service areas.
- All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
- Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
- External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
- Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Reliable chain and sprocket drive supports motor-driven rewind operation.
- Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
- CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.
Made in USA:
Applications:
- Industrial fluid transfer stations requiring 250 ft of large 1-1/2" hose capacity with powered air motor rewind.
- Fleet and heavy equipment service areas where maximum hose reach is needed for maintenance, transfer, or utility work.
- Mobile service trucks and trailers where compressed air is available and powered rewind is preferred for long hose retrieval.
- Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
- Construction, utility, and field service operations that need a rugged 'A' frame reel platform with greater reach than 175 ft models.
FAQs:
- Q: Does the Coxreels 1185-3328-A include hose?
A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application's pressure, temperature, fluid, and fitting requirements. - Q: What does #4 Gast air motor rewind mean?
A: It means the reel uses a Gast compressed-air motor to power hose rewind. This helps retrieve long runs of large-diameter hose more efficiently than manual cranking when compressed air is available at the reel location. - Q: What hose size will this reel hold?
A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 250 ft capacity. Hose outside diameter matters because a larger O.D. hose can reduce the amount of hose the reel can safely store. - Q: Can this reel be used at 1500 PSI?
A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing. - Q: Why choose the 250 ft model instead of a 175 ft version?
A: The 250 ft model is useful when the reel must reach farther work areas from a fixed or vehicle-mounted location. It provides the same 1-1/2" hose I.D. and 1500 PSI reel rating with additional hose capacity for longer layouts.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-3328 | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-A | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-AB | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-C | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-E | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-EA | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-ED | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-EF | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
