Built to manage extended lengths of large-diameter hose, the Coxreels 1185-3328-ED Electric Motor Rewind Hose Reel provides powered retrieval for increased-volume delivery applications. This 1185 Series model accommodates up to 250 ft of 1-1/2 in. I.D. hose, providing substantial reach while reducing the manual effort required to return a large hose assembly to the drum. A reliable chain-and-sprocket drive transfers power from the motor to the reel during retraction.
The 1185-3328-ED is rated for a 1,500 PSI maximum working pressure and uses an external fluid path with an in-line full-flow NPT swivel inlet. Coxreels' low-profile outlet riser and open drum design promote a non-crimping, flat, smooth hose wrap. The one-piece, CNC robotically welded 12-gauge steel A-frame supports the additional weight of large-diameter hose, while lubricated horizontal surface-mount bearings promote easy reel rotation in stationary and demanding mobile applications.

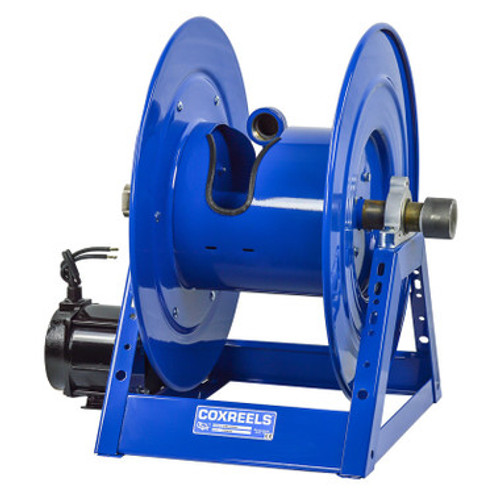

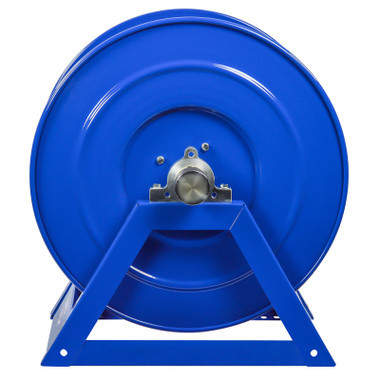

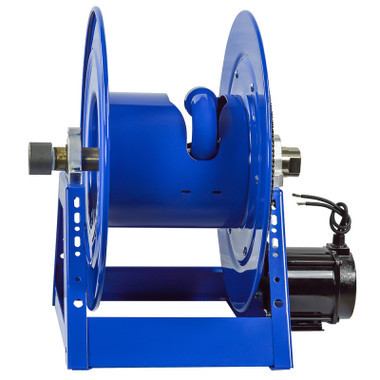

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-3328-ED | Configuration: Less Hose | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 250 ft | Maximum Working Pressure: 1,500 PSI
Features:
- Electric motor configuration provides powered retrieval of large-diameter hose.
- Reliable chain-and-sprocket drive transfers motor power to the reel drum.
- External fluid path incorporates an in-line full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Low-profile outlet riser and open drum design provide a non-crimping, flat, smooth hose wrap.
- One-piece, CNC robotically welded 12-gauge steel A-frame base strengthens the reel structure.
- Lubricated horizontal surface-mount bearings promote easy reel rotation.
- Adjustable tension brake helps prevent free-wheeling during operation.
- CNC-spun ribbed discs with rolled edges provide strength, durability, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery systems requiring long lengths of large-diameter hose.
- Demanding mobile applications where powered rewind assists with handling a 250 ft hose assembly.
- Stationary installations requiring organized deployment and storage of large-diameter hose.
- Hose-handling systems operating within the reels' published capacity and pressure limits.
FAQs:
- Q: Does the Coxreels 1185-3328-ED include hose?
A: No. Coxreels lists the hose field as No, meaning this model is supplied without hose. A compatible hose must be selected and installed separately. - Q: What hose size and length will this reel accommodate?
A: Coxreels lists a capacity of 250 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: What is the maximum working pressure?
A: The manufacturer rates the 1185-3328-ED for a maximum working pressure of 1,500 PSI. - Q: How does the reel help prevent hose crimping?
A: The low-profile outlet riser and open drum design guide the hose into a flat, smooth wrap during powered retrieval. - Q: What mounting space is required?
A: The reel measures 47.63 in. wide by 30 in. high by 28 in. long. Its mounting pattern measures 36.25 in. by 18.5 in.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-3328 | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-A | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-AB | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-C | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-E | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-EA | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-ED | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
| 1185-3328-EF | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
