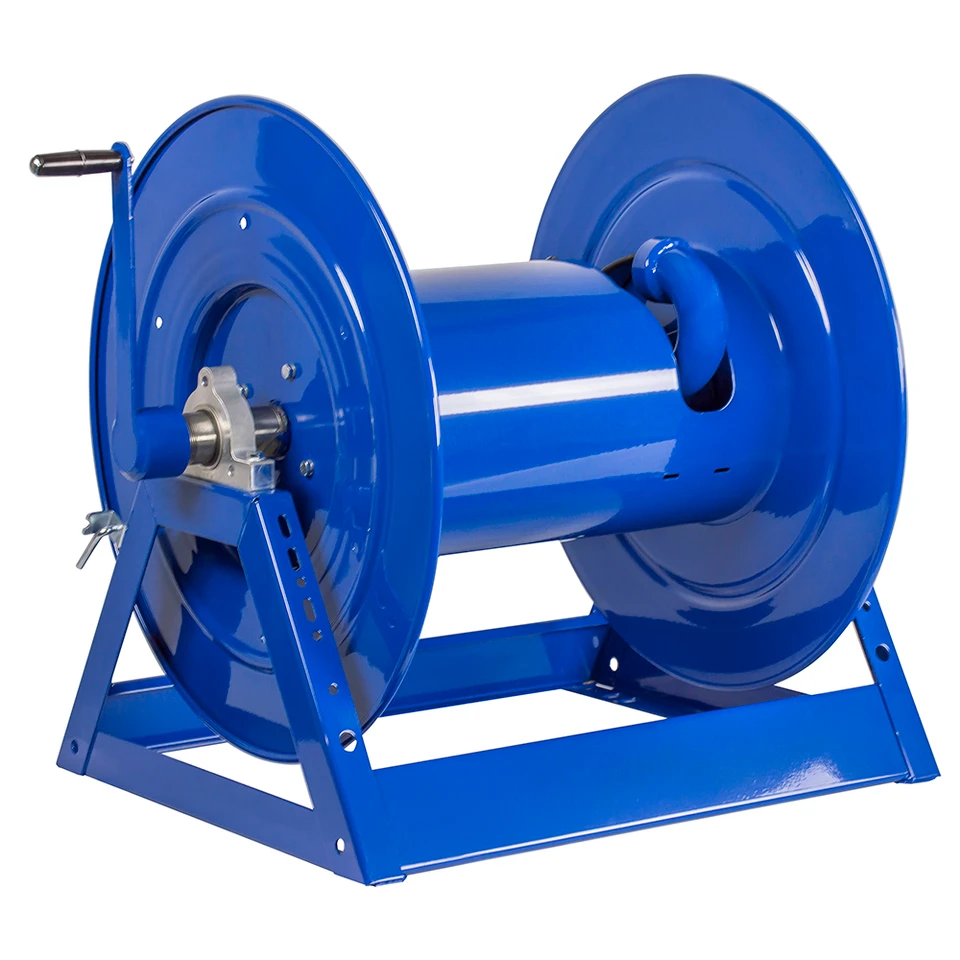

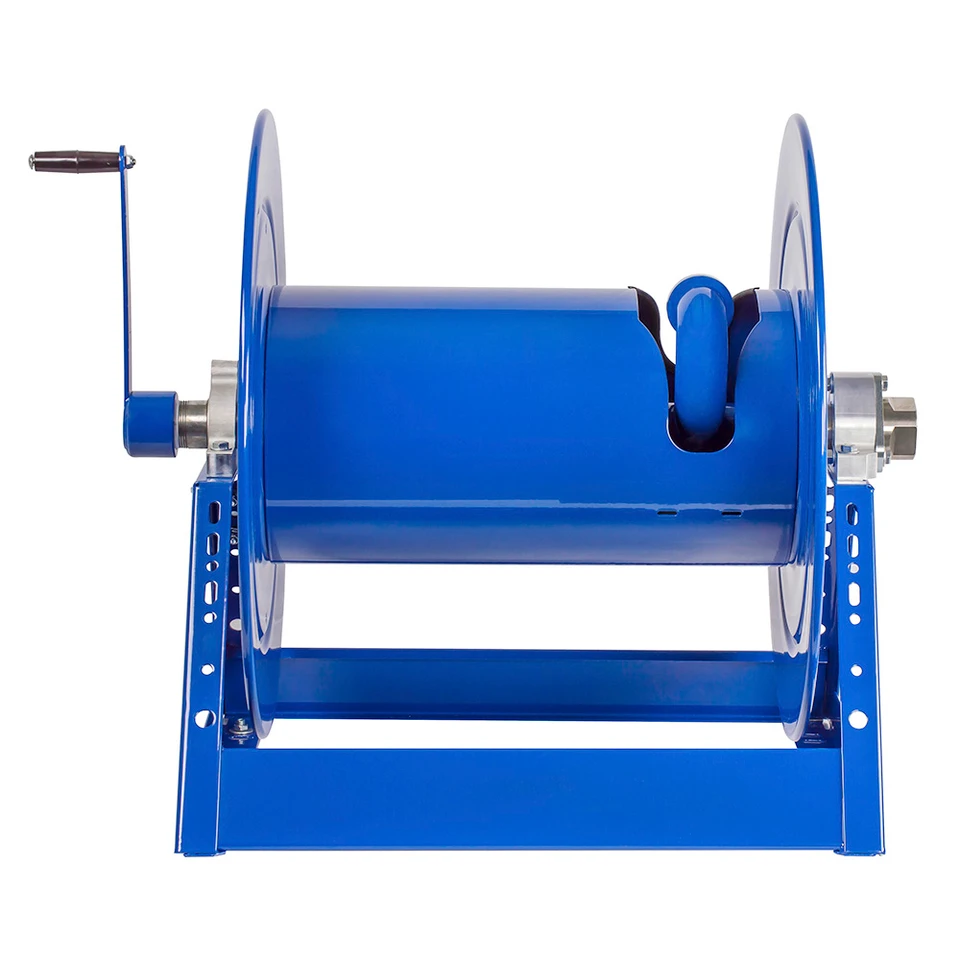

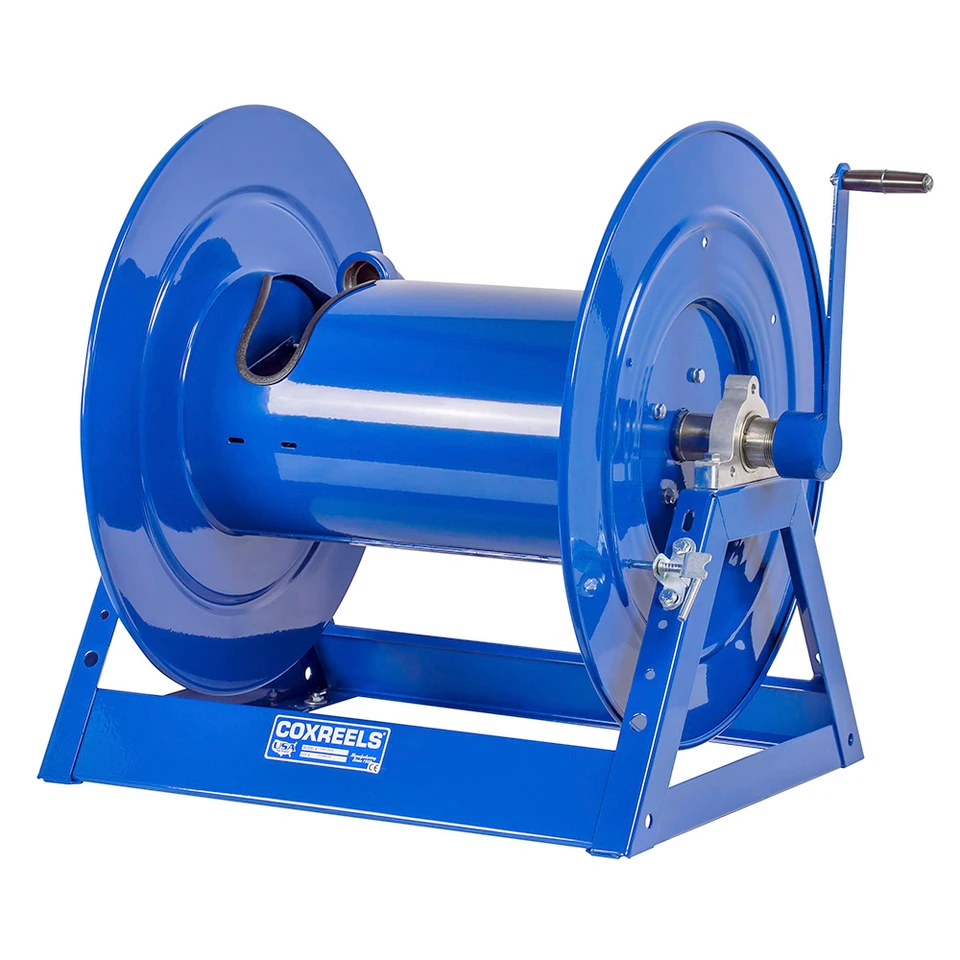

When a fluid-transfer setup requires longer runs of large-diameter hose, the Coxreels 1185-2024 Hand Crank Hose Reel provides storage capacity for 100 feet of 1 1/2-inch I.D. hose. The reel's 1,500 PSI maximum pressure rating supports compatible medium-pressure systems, while its full-flow swivel and large drum help maintain the volume needed for water, oil, lubrication, and other approved bulk-liquid applications.
Part of the 1185 Series, this reel uses a one-piece, all-welded steel "A" frame to carry the added weight of long, large-diameter hose. Coxreels' low-profile outlet riser and open drum slot create a flatter hose wrap that helps limit crimping during retrieval. A direct hand crank gives the operator manual control over winding, and the long-handled locking pin secures the drum during storage or transport.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1185 Series | Configuration: Less Hose | Hose I.D.: 1 1/2" | Hose O.D.: 2 1/16" | Hose Capacity: 100 ft | Max Pressure: 1,500 PSI | Ship Weight: 94 lbs | Overall Dimensions: 33.5" W x 26" H x 24" L | Mounting Pattern: 23.25" M x 16" N | Base Dimensions: 25.5" X x 22.25" Y
Features:
- 100-foot capacity accommodates long runs of 1 1/2-inch I.D. hose for increased-volume fluid delivery.
- External fluid path uses an in-line, full-flow NPT swivel inlet to support unrestricted flow through compatible systems.
- Nitrile swivel seals provide compatibility with approved fluids based on the hose and complete system requirements.
- Exclusive low-profile outlet riser and open drum slot promote a flat, smooth hose wrap with reduced crimping.
- Solid steel direct hand crank with a smooth round handle provides controlled manual hose retrieval.
- Long-handled locking pin secures the drum against unwanted rotation during transport or storage.
- One-piece, CNC robotically welded 12-gauge steel "A" frame supports the weight of large-diameter hose.
- Rolled edges, ribbed steel discs, permanently lubricated bearings, and a chip-resistant CPC powder-coat finish support reel strength, hose protection, and smooth rotation.
Made in USA:
Applications:
- Bulk liquid handling systems that require extended reach from a stationary reel location.
- High-volume water delivery in agricultural, utility, construction, and facility-service operations.
- Oil and lubrication transfer when the selected hose, nitrile seals, fittings, and fluid are mutually compatible.
- Truck, trailer, skid, and service-body installations where a manually operated reel is preferred over powered retraction.
- Industrial plants and maintenance facilities storing long lengths of 1 1/2-inch hose between transfer operations.
FAQs:
- Q: Is hose included with the Coxreels 1185-2024?
A: No. This model is supplied as a bare reel without hose. The buyer must select a compatible hose with the correct diameter, pressure rating, construction, and fluid compatibility. - Q: What hose size and length will the reel hold?
A: The standard capacity is 100 feet of hose measuring 1 1/2 inches I.D. and 2 1/16 inches O.D. Hose with a larger outside diameter may reduce the amount that fits on the drum. - Q: How is the hose retracted?
A: The operator winds the hose manually using the solid steel direct hand crank. This model does not use spring or motor-powered retraction. - Q: What keeps the drum from turning during transport?
A: A long-handled locking pin secures the reel against rotation. The pin should be properly engaged before moving a vehicle, cart, or skid-mounted installation. - Q: Can the reel be used with any liquid at 1,500 PSI?
A: No. The 1,500 PSI figure is the reel's maximum pressure rating, but fluid compatibility must also be confirmed for the nitrile swivel seals, hose, fittings, and other system components.
| LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
|
1185 SERIES IN-LINE SWIVEL
|
||||||||||
| 1185-1124 | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 |
| 1185-1524 | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 |
| 1185-2020 | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 |
| 1185-2024 | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 |
| 1185-2028 | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 |
| 1185-2528 | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 |
| 1185-3324 | 1-1/2" | 2-1/16" | 175 | 1-1/4" | 1-13/16" | 225 | 1-1/2" F NPT | 1,500 | 154 | 7 |
| 1185-3328 | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 1,500 | 169 | 8 |
|
1185 SERIES 90° SWIVEL
|
||||||||||
| 1185-1124-BUXX | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 3,000 | 76 | 1 |
| 1185-1524-BUXX | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 3,000 | 81 | 2 |
| 1185-2020-BUXX | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 3,000 | 70 | 3 |
| 1185-2024-BUXX | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 3,000 | 94 | 4 |
| 1185-2028-BUXX | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 3,000 | 109 | 5 |
| 1185-2528-BUXX | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 3,000 | 122 | 6 |
| 1185-3324-BUXX | 1-1/2" | 2-1/16" | 175 | 1-1/4" | 1-13/16" | 225 | 1-1/2" F NPT | 3,000 | 154 | 7 |
| 1185-3328-BUXX | 1-1/2" | 2-1/16" | 250 | 1-1/4" | 1-13/16" | 325 | 1-1/2" F NPT | 3,000 | 169 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
