Built for powered retrieval of large-diameter hose in a 100 ft capacity configuration where 24V DC power is available, the Coxreels 1185-2024-EF electric motor rewind hose reel provides 1-1/2" I.D. x 100 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is designed for increased-volume delivery applications where fleet service teams, plant maintenance crews, utility operators, and mobile service setups need a strong reel platform for heavier hose with DC-powered rewind.
This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fittings, and power requirements. The 24V DC motor rewind reduces manual hose retrieval effort for service vehicles, mobile equipment, and fixed installations with compatible DC power. Coxreels' all-welded steel 'A' frame supports heavier hose loads, while the low profile outlet riser and open drum slot help guide long hose runs into a flatter, smoother wrap during rewind.

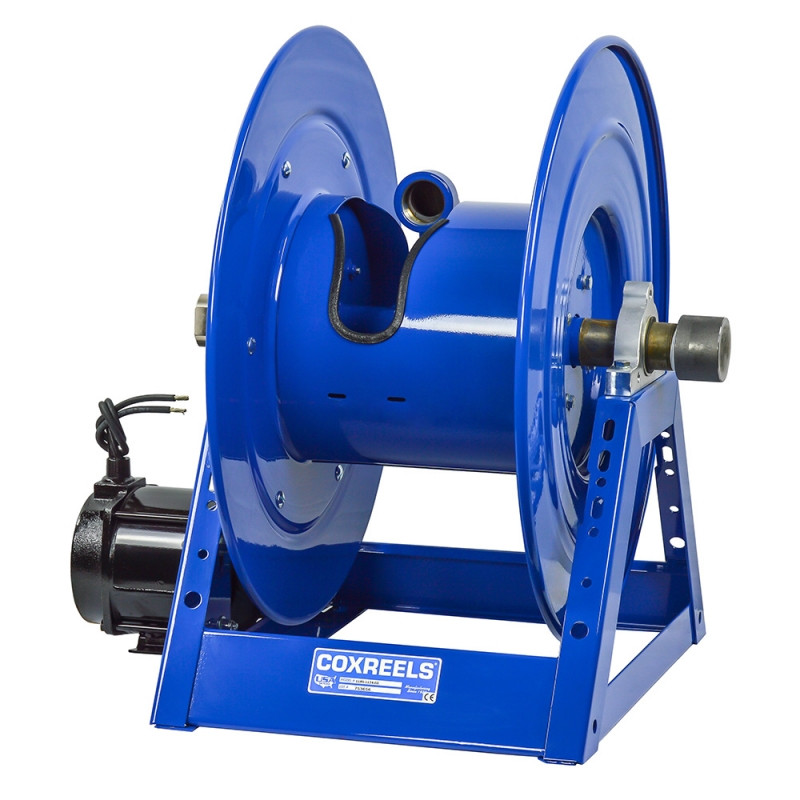

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 24V DC Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2024-EF | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 100 ft | Hose Included: No | Max Pressure: 1500 PSI
Features:
- Electric 24V DC motor rewind provides powered hose retrieval where manual crank operation is not preferred.
- 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
- 1-1/2" x 100 ft hose capacity provides extended reach while remaining shorter than the larger 125 ft configuration.
- All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
- Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
- External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
- Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Reliable chain and sprocket drive supports motor-driven rewind operation.
- Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
- CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.
Made in USA:
Applications:
- Industrial fluid transfer stations requiring 100 ft of large 1-1/2" hose capacity with powered 24V DC rewind.
- Fleet and heavy equipment service areas where long large-diameter hose runs need to be retrieved and stored neatly after maintenance or transfer work.
- Mobile service trucks and trailers where 24V DC rewind is preferred over air motor rewind or hand crank operation.
- Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
- Construction, utility, and field service operations that need a rugged 'A' frame reel platform with more reach than 70 ft or 75 ft models.
FAQs:
- Q: Does the Coxreels 1185-2024-EF include hose?
A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the applications pressure, temperature, fluid, and fitting requirements. - Q: What does electric 24V DC motor rewind mean?
A: It means the reel uses a 24V DC electric motor to rewind the hose. This is useful for service vehicles, mobile equipment, and installations where compatible 24V DC power is available at the reel location. - Q: What hose size will this reel hold?
A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 100 ft capacity. Hose outside diameter matters because a larger O.D. hose can reduce the amount of hose the reel can safely store. - Q: Can this reel be used at 1500 PSI?
A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing. - Q: Why choose the 1185-2024-EF instead of a 75 ft model?
A: The 1185-2024-EF is useful when the application needs additional reach but does not require the full 125 ft capacity. It keeps the same 1-1/2" hose I.D. and 1500 PSI reel rating while adding powered 24V DC rewind.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2024 | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-A | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-AB | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-C | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-E | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-EA | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-ED | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-EF | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
