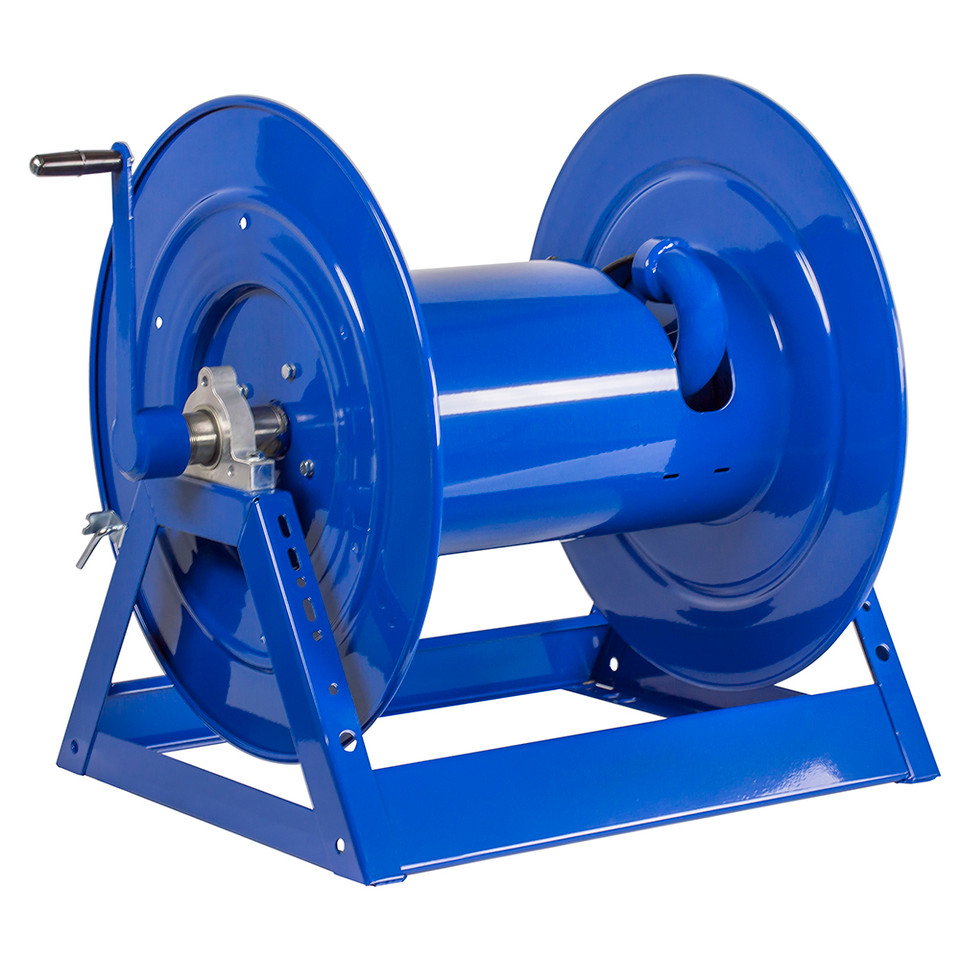

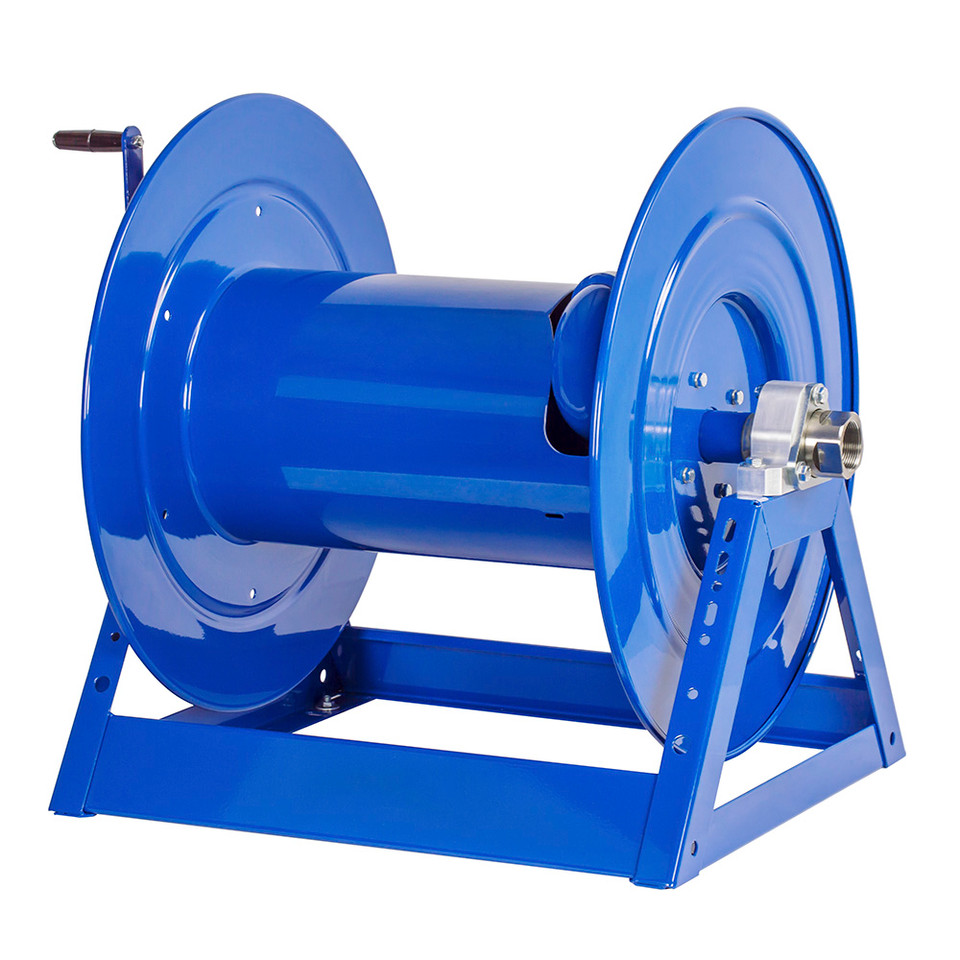

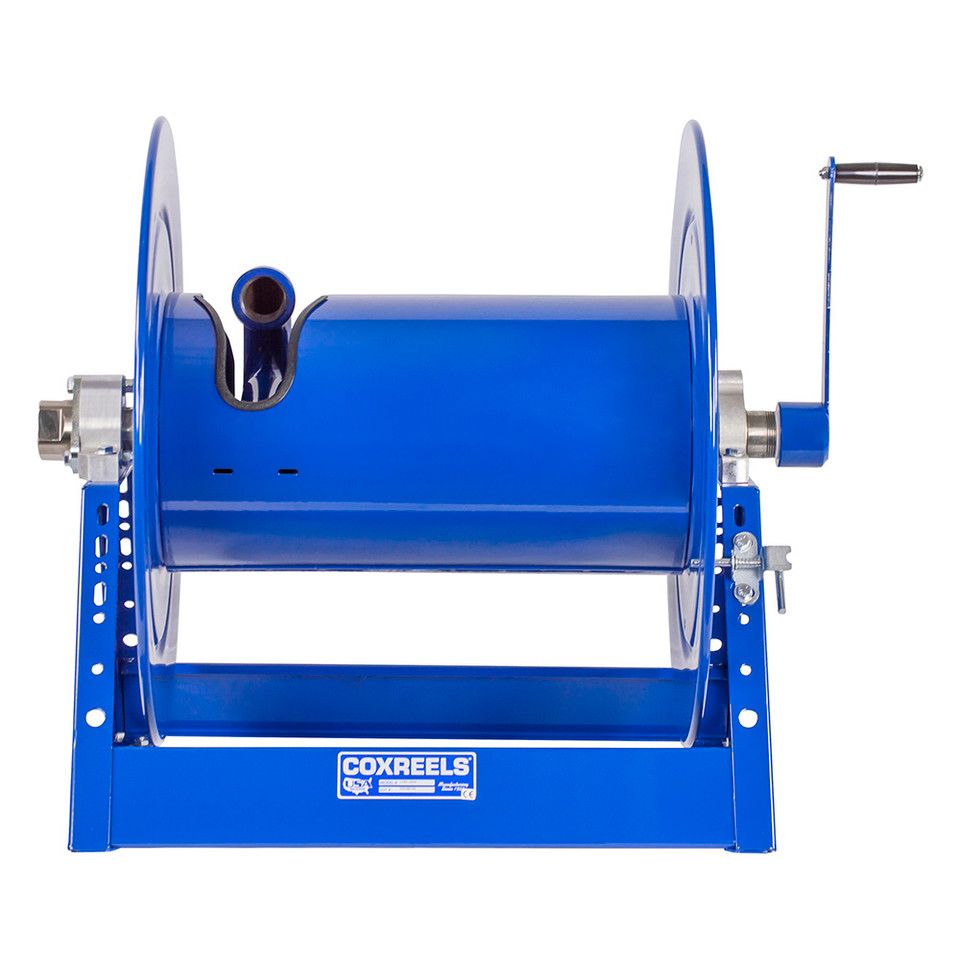

Built to manage long lengths of large-diameter hose, the Coxreels 1185-2024-C Beveled Gear Hand Crank Hose Reel provides controlled mechanical retrieval for increased-volume delivery applications. This 1185 Series model accommodates up to 100 ft of 1-1/2 in. I.D. hose, giving operators substantial hose reach while keeping the hose organized on a rigid reel structure. Its front bevel geared crank provides mechanical retraction from the front of the reel, making the rewind mechanism accessible in fixed and mobile installations.
The 1185-2024-C is rated for a 1,500 PSI maximum working pressure and incorporates an external fluid path with an in-line full-flow NPT swivel inlet. Coxreels' low-profile outlet riser and open drum slot promote a non-crimping, flat, smooth hose wrap. A one-piece, robotically welded 12-gauge steel A-frame base supports the additional weight of large-diameter hose, while lubricated horizontal surface-mount bearings assist reel rotation. A long-handled locking pin secures the reel against rotation during transportation or storage.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Beveled Gear Hand Crank Hose Reel | Series: 1185 Series | Model: 1185-2024-C | Configuration: Less Hose | Rewind Type: Front Bevel Geared Crank | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 100 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 33.5 in. W x 26 in. H x 24 in. L | Mounting Pattern: 23.25 in. M x 16 in. N | Base Dimensions: 25.5 in. X x 22.25 in. Y
Features:
- Front bevel geared crank provides mechanical hose retraction from the front of the reel.
- External fluid path incorporates an in-line full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Low-profile outlet riser and open drum slot provide a non-crimping, flat, smooth hose wrap.
- One-piece, CNC robotically welded 12-gauge steel A-frame base provides a rigid reel structure.
- Lubricated horizontal surface-mount bearings support easy reel rotation.
- Long-handled locking pin secures the reel against rotation during transportation or storage.
- CNC-spun ribbed discs with rolled edges provide strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery applications requiring storage of long, large-diameter hose.
- Mobile installations where the welded A-frame supports the additional weight of the hose assembly.
- Fixed hose-handling systems requiring controlled manual retrieval from a front-mounted crank.
- Hose storage and deployment within the reels' published capacity and working-pressure limits.
FAQs:
- Q: Does the Coxreels 1185-2024-C include hose?
A: No. Coxreels lists this model without hose. A compatible hose must be selected and installed separately. - Q: What hose size and length will this reel hold?
A: The manufacturer lists a capacity of 100 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: What does the C suffix identify?
A: The C suffix identifies the front bevel geared crank configuration used for mechanical hose retraction. - Q: What is the maximum working pressure?
A: Coxreels rates the 1185-2024-C for a maximum working pressure of 1,500 PSI. - Q: How is the reel secured during transportation or storage?
A: A long-handled locking pin secures the reel against rotation while it is being transported or stored.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2024 | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-A | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-AB | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-C | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-E | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-EA | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-ED | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-EB | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 1185 Series
- Hose Inside Diameter (in.)
- 1-1/2
- Hose Outside Diameter (in.)
- 2-1/16
- Hose Length (ft.)
- 100
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 1500
- Width (in.)
- 33.5
- Height (in.)
- 26
- Length (in.)
- 24
- Mounting Pattern (in.)
- 23.25M
- Mounting Pattern (in.)
- 16N
- Base (in.)
- 25.5X
- Base (in.)
- 22.25Y
