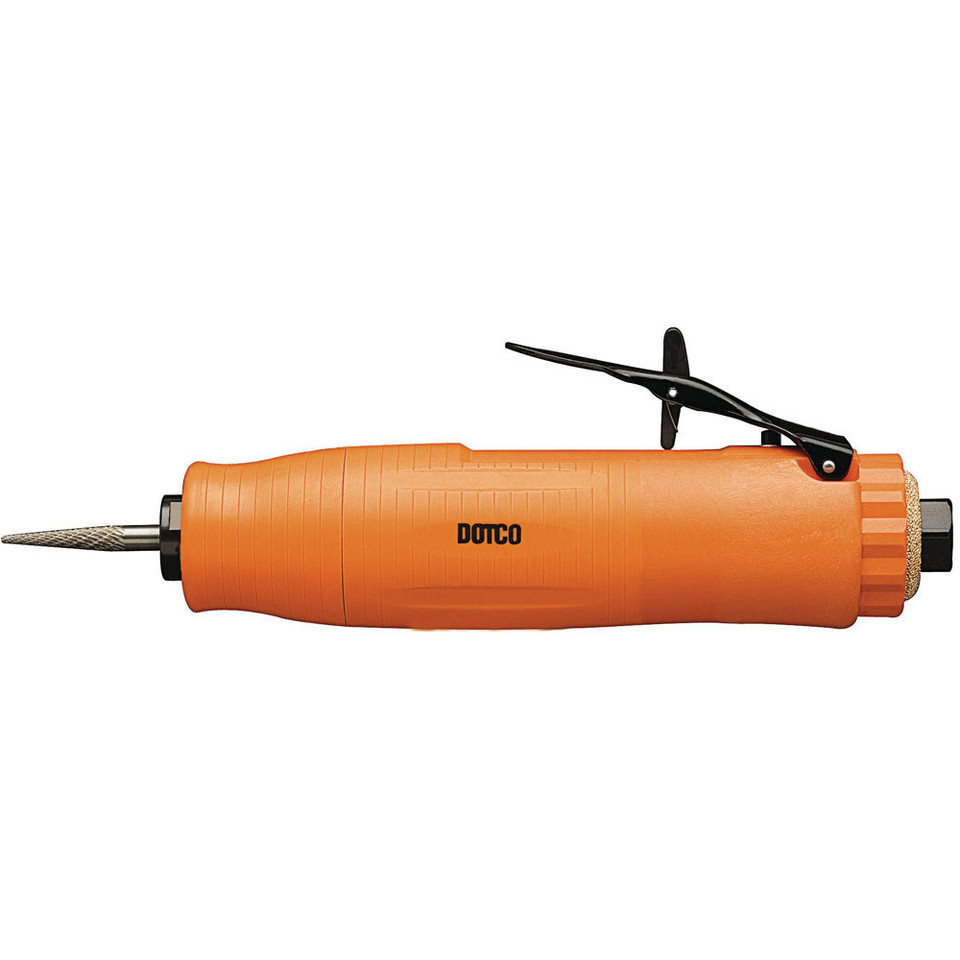

Dotco 12L2542-01 Inline Grinder | 12-25 Series | 0.9 HP | 12,000 RPM | 1/4" Collet | Composite Housing | Rear Exhaust

Built for slower-speed deburring, blending, and controlled finishing work, the Dotco 12L2542-01 inline grinder delivers 0.9 HP pneumatic output with a 12,000 RPM free speed. This lower-speed configuration is useful when the application calls for more accessory control, reduced surface aggressiveness, or compatibility with mounted points and burrs that are not intended for higher-speed grinders. It's 1/4" collet accepts common die grinder accessories used for shaping edges, removing burrs, cleaning castings, and preparing parts for assembly or refinishing.

Part of the Dotco 12-25 Series, this inline grinder uses a composite housing to help reduce handling weight during repetitive bench and production work. The rear exhaust directs spent air away from the grinding point, helping limit chip and dust blowback across the work surface. With the spindle aligned directly with the operator’s grip, the 12L2542-01 is well suited for straight-access grinding tasks in machining, fabrication, MRO repair, automotive work, and composite finishing environments.

Type: Inline Die Grinder | Brand: Dotco | Model: 12L2542-01 | Series: 12-25 Series | Power: 0.9 HP | Free Speed: 12,000 RPM | Collet Size: 1/4" | Housing: Composite | Exhaust: Rear

Features:

• 0.9 HP motor output supports controlled material removal with properly matched burrs, mounted points, and die grinder accessories.
• 12,000 RPM free speed provides a slower-speed option for applications where accessory control and surface finish are priorities.
• 1/4" collet accepts common industrial die grinder accessories for deburring, shaping, blending, and finishing work.
• Inline body style keeps the spindle aligned with the operator’s grip for straight access into parts, fixtures, pockets, and machined openings.
• Composite housing helps reduce tool weight during repetitive production, maintenance, and repair tasks.
• Rear exhaust routes air away from the work surface to help reduce chip and dust disturbance near the grinding point.
• 12-25 Series configuration provides a compact inline grinder platform for shops that need power without moving to a larger tool body.

Made in USA:

Applications:

• Machining and toolroom work — deburring drilled holes, milled edges, slots, and small machined details before inspection or assembly.
• Fabrication and welding shops — cleaning edges, blending small weld areas, shaping brackets, and preparing localized surfaces for finishing.
• Industrial maintenance and MRO — repairing worn parts, removing small defects, cleaning castings, and modifying replacement components during service work.
• Automotive and garage repair — gasket cleanup, port touch-up, bracket fitting, and general 1/4" die grinder tasks with compatible accessories.
• Composite and aerospace finishing — controlled trimming, detail grinding, and touch-up work where a lower-speed inline grinder improves handling.

FAQs:

• Q: Why choose the 12,000 RPM Dotco 12L2542-01 instead of a faster inline grinder?
  A: The 12,000 RPM speed is useful when the operator wants more control with compatible mounted points, burrs, or finishing accessories. Faster grinders can remove material more aggressively, but the accessory type, material, and finish requirement should determine the correct speed.
• Q: What accessories fit this grinder?
  A: This model uses a 1/4" collet for compatible die grinder accessories. Always confirm the accessory shank size and maximum operating speed before mounting it on the tool.
• Q: What does rear exhaust do?
  A: Rear exhaust sends spent air toward the back of the grinder instead of forward across the workpiece. This helps keep chips, dust, and grinding debris from being blown directly over the contact area.
• Q: Can this grinder be used with abrasive wheels?
  A: It may be used only with accessories that are compatible with the tool, collet, guarding requirements, and RPM rating. Never mount saw blades or non-reinforced grinding wheels on this tool.
• Q: Is this a good choice for general shop deburring?
  A: Yes, when the job calls for a 1/4" inline die grinder and the accessory is properly matched to 12,000 RPM operation. It is especially useful for controlled burr removal, edge cleanup, and small-area finishing.
