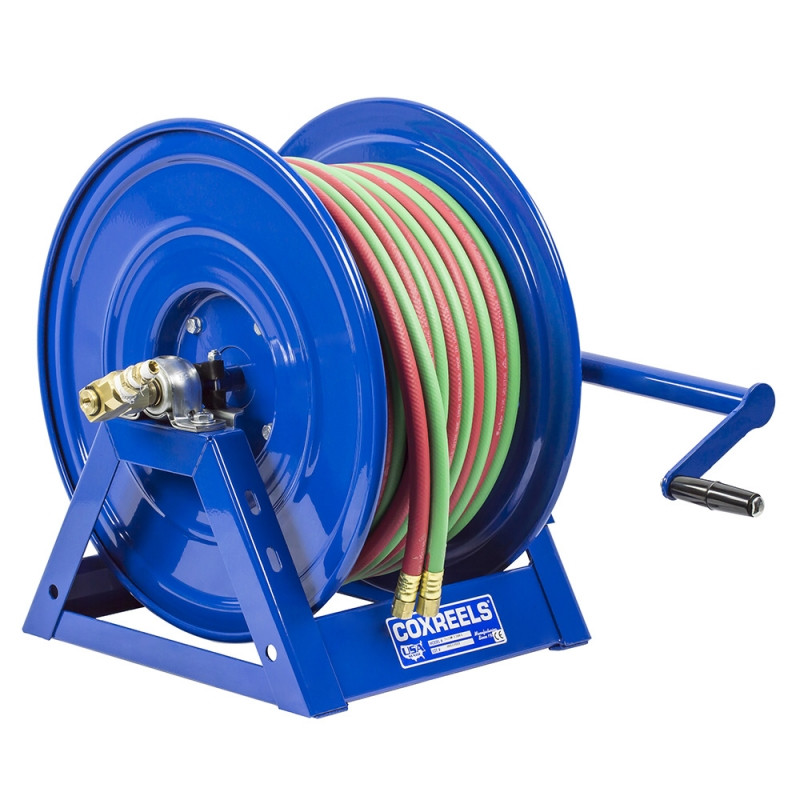

Coxreels 1275WT-3-250-C Dual Hose Hand Crank Welding Reel | 1275W Series | 3/8" Hose Diameter | 250' Hose Length | 200 Max PSI

Built for organizing long twin-line welding hose runs in fabrication shops, fleet service bays, and mobile repair setups, the Coxreels 1275WT-3-250-C is a 1275W Series dual hose hand crank welding reel with capacity for 3/8" I.D. hose up to 250 ft. Its 200 PSI maximum pressure rating gives buyers a clear operating limit for compatible welding gas service, while the front bevel geared crank provides controlled mechanical rewind without relying on a spring or powered motor.

The 1275W Series is built to manage bulky twin-line welding hose with two external fluid paths, machined brass swivel inlets, and VITON® swivel seals. Low-profile outlet risers and an open drum slot help the hose wrap flatter on the drum, reducing the twisting and bunching that can happen with long welding hose lengths. The 28.88" W x 18.63" H x 17.63" L overall footprint should be checked against the intended floor, bench, truck, or fixed-station mounting location before ordering.

Type: Dual Hose Hand Crank Welding Reel | Series: 1275W Series | Model: 1275WT-3-250-C | Hose Included: Yes | Rewind Type: Front Hand Crank Bevel Geared Crank | Hose I.D.: 3/8" | Hose Capacity: 250 ft | Max Pressure: 200 PSI | Service: Welding Gas | Swivel Inlets: Dual 3/8" NPT | Swivel Seal: VITON

Features:

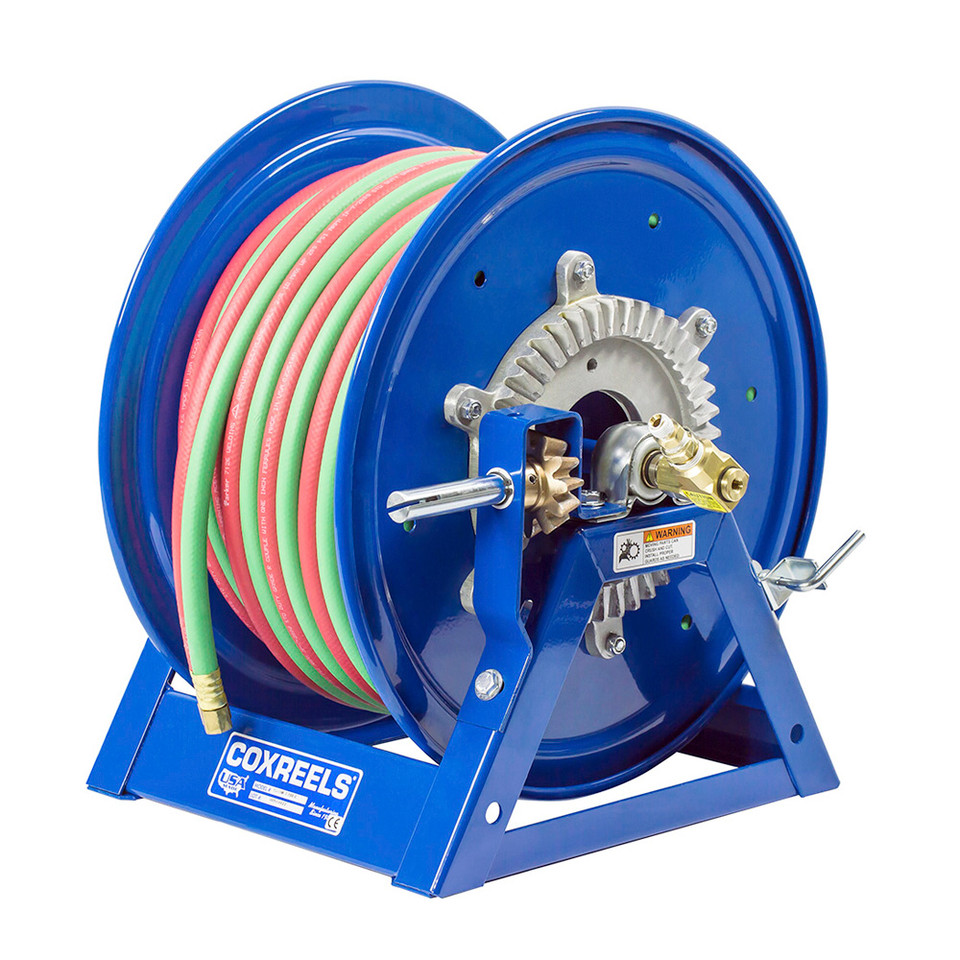

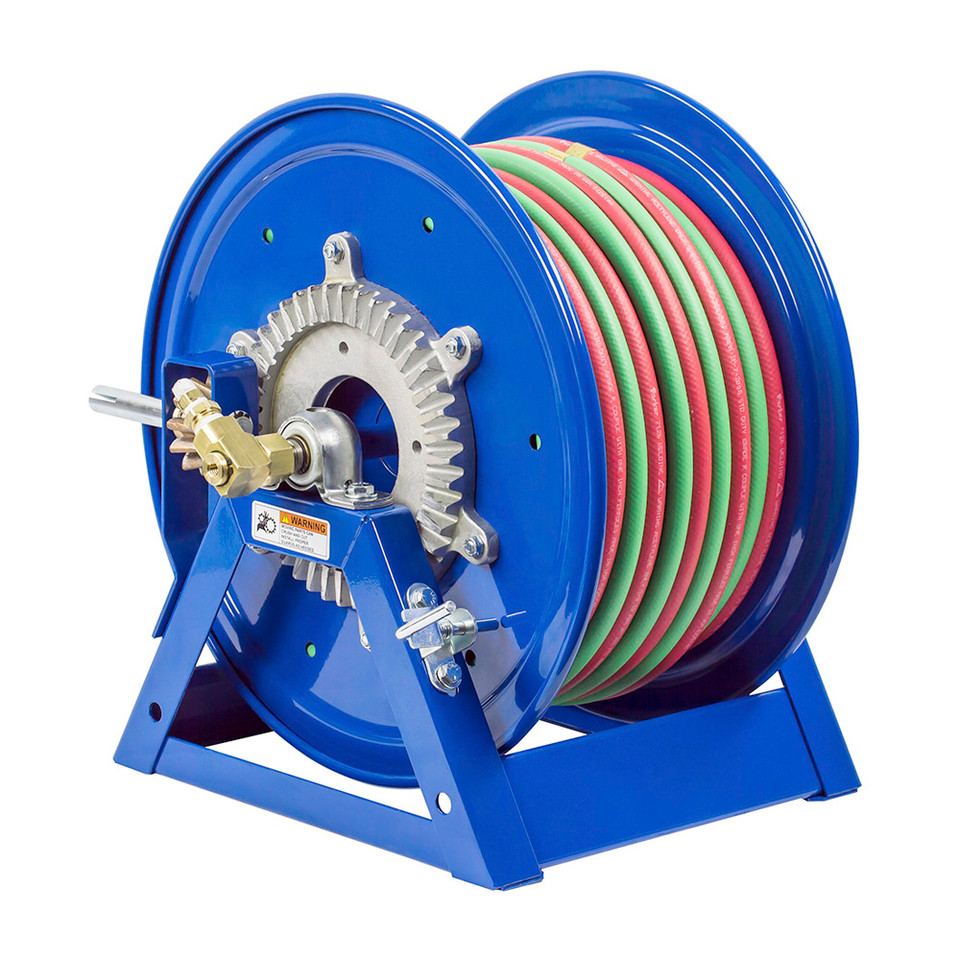

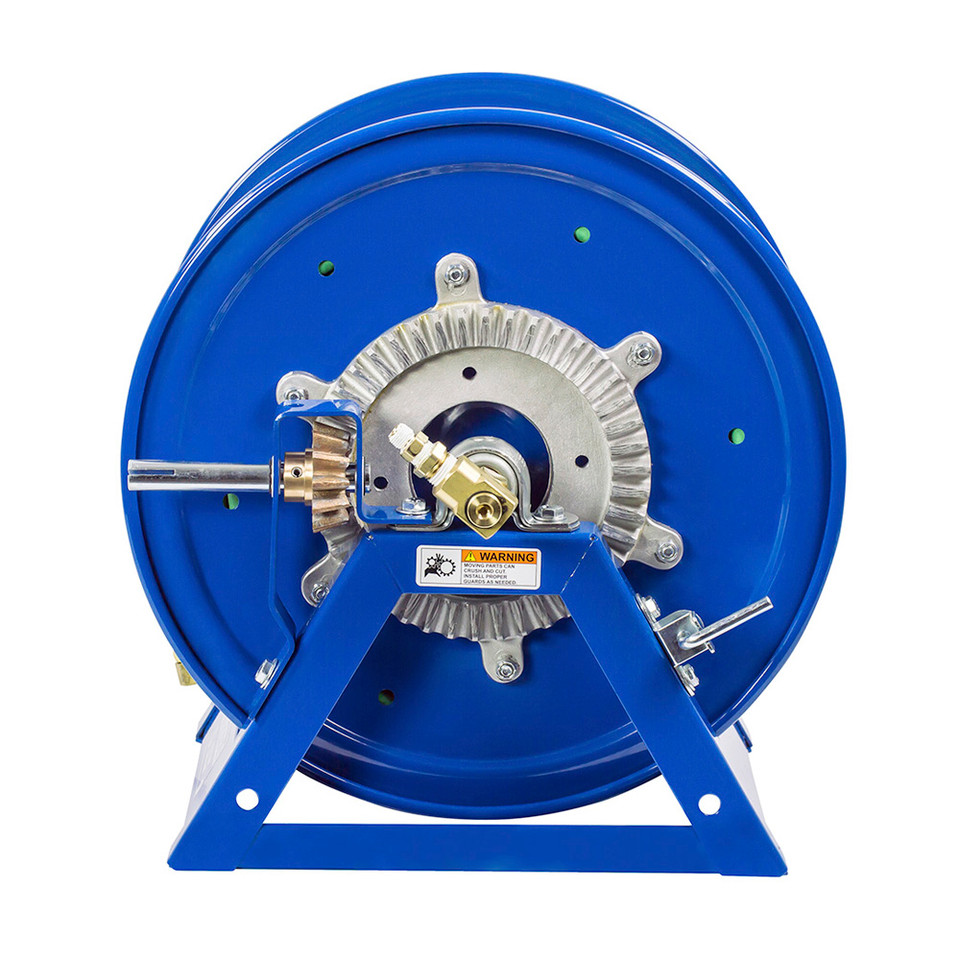

• Front bevel geared crank provides controlled manual rewind for long twin-line welding hose setups.

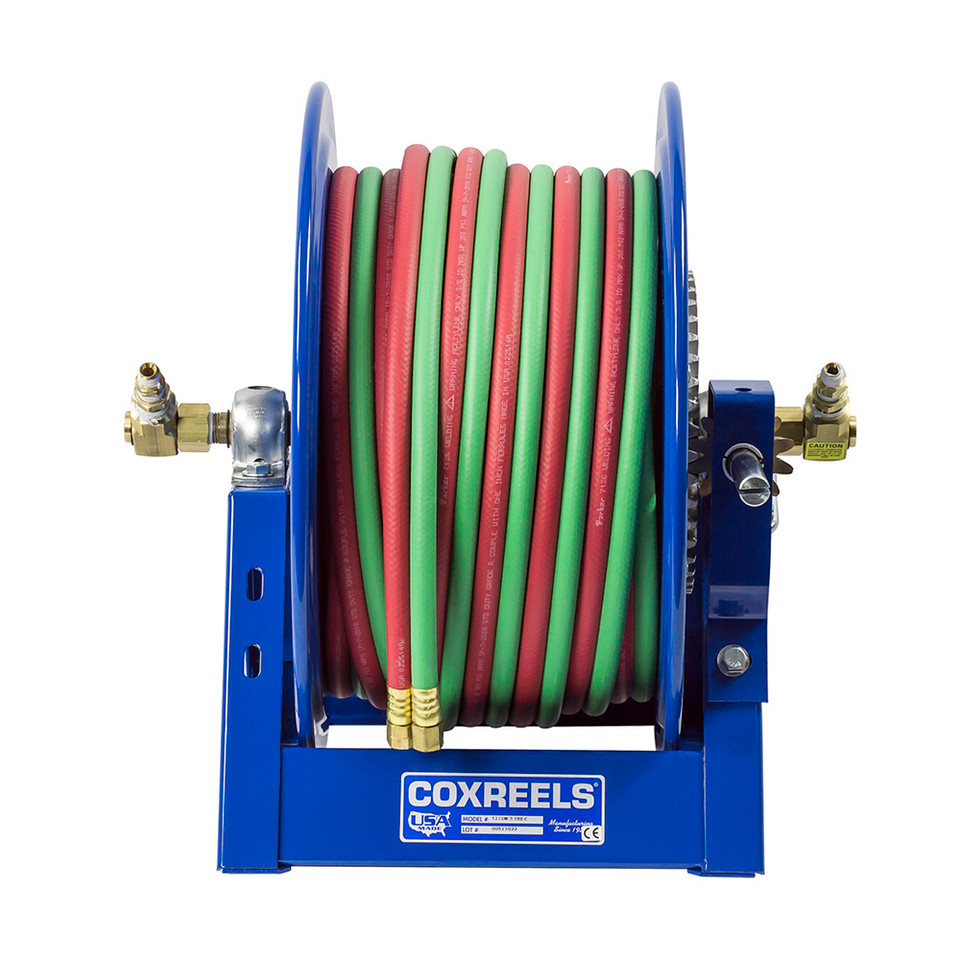

• Two external fluid paths with machined solid brass 90° full-flow 3/8" NPT swivel inlets, one on each side of the reel.
• VITON swivel seals support welding gas reel service where seal compatibility matters.
• Exclusive low profile outlet risers and open drum slot design help promote a flat, smooth hose wrap.
• All-welded steel 'A' frame construction provides a rigid base for shop, vehicle, or fixed-station mounting.
• Permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly during payout and rewind.
• CNC spun and ribbed discs with rolled edges add strength and help reduce sharp-edge exposure during handling.
• CPC powder coat finish helps resist chipping and rust in welding, maintenance, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops storing long twin-line hose runs near cutting tables, welding stations, and repair benches.
• Fleet maintenance facilities supporting oxy-acetylene or compatible welding gas hose service around vehicle bays.
• Mobile welding and service trucks where manual crank rewind keeps hose controlled after field repairs.
• Industrial MRO departments routing welding hose from a fixed reel location to maintenance work areas.
• Farm, vocational, and garage workshops that need a high-capacity reel platform for compatible welding hose supplied separately.

FAQs:

• Q: Does the Coxreels 1275WT-3-250-C include hose?
  A: Yes. This configuration is supplied with a hose. The 250 ft figure refers to hose capacity for compatible 3/8" I.D. welding hose.
• Q: What does the hand crank bevel gear do?
  A: The bevel geared crank gives the user mechanical control over rewind. It is useful for long welding hose runs where controlled manual retrieval is preferred over spring rewind.
• Q: Can this reel be used above 200 PSI?
  A: No. The reel should not be operated above its 200 PSI maximum pressure rating. The hose installed on the reel must also be rated for the intended service and pressure.
• Q: What hose should be used with this reel?
  A: Use compatible 3/8" I.D. welding hose that matches the gas service, pressure requirements, and fittings for the application. Confirm hose compatibility before installation, especially when using T-Grade or oxy-acetylene welding hose.
• Q: What should be checked before mounting this reel?
  A: Confirm the available space for the 28.88" width, 18.63" height, 17.63" length, and 23.38" x 15.28" base footprint. The mounting surface and hardware should be suitable for the reel weight and expected hose pull forces.
