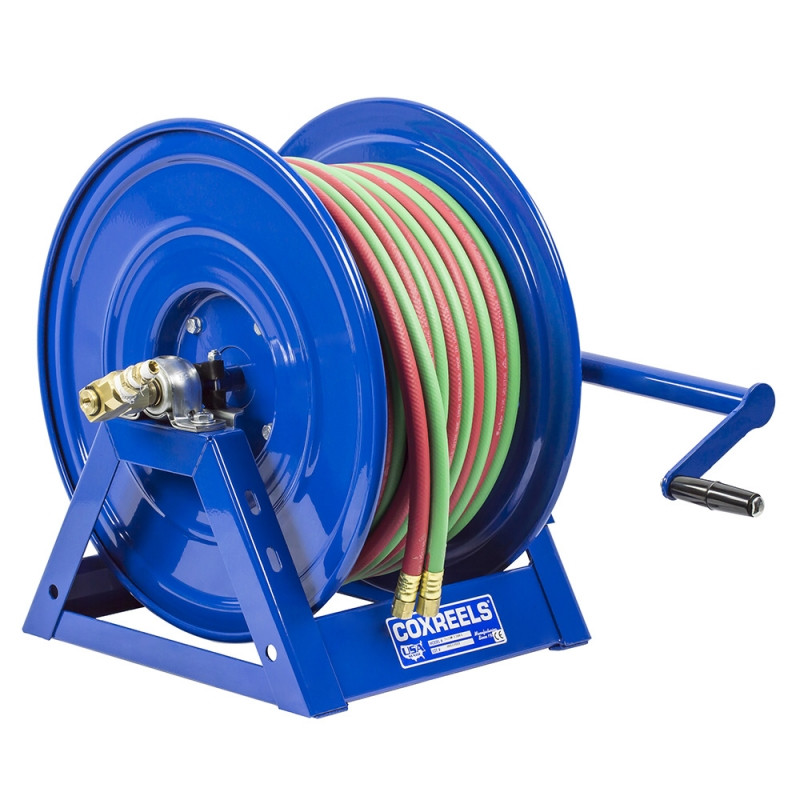

Coxreels 1275WT-3-150-C Dual Hose Hand Crank Welding Reel | 1275W Series | 3/8" Hose Diameter | 150' Hose Length | 200 Max PSI

Built for welding gas hose management in fabrication shops, repair bays, and field service areas, the Coxreels 1275WT-3-150-C Dual Hose Hand Crank Welding Reel provides organized storage for bulky twin-line welding hose while keeping the work area cleaner and easier to move through. This 1275W Series reel is configured for 3/8" hose I.D. with a 150 ft hose capacity and a 200 PSI maximum pressure rating, making it a practical fit for long-reach oxy-fuel welding, cutting, brazing, and heating setups where hose control matters as much as hose length.

The hand crank rewind gives the user manual control over hose retrieval, while the direct bevel gear drive helps bring long hose runs back onto the drum with less effort than a simple free-spinning crank. Dual brass swivel inlets, one on each side of the reel, support two separate welding gas paths, and the low profile outlet riser with open drum slot helps guide hose into a flatter, smoother wrap during rewind.

Type: Dual Hose Hand Crank Welding Reel | Series: 1275W Series | Model: 1275WT-3-150-C | Hose I.D.: 3/8" | Hose Capacity: 150 ft | Max Pressure: 200 PSI | Hose Included: Yes | Application: Welding Gas | Rewind: Hand Crank

Features:

• Dual external fluid paths with machined solid brass 90° full-flow 3/8" NPT swivel inlets, one on each side of the reel, help maintain separate gas flow paths for welding hose setups.
• VITON swivel seals support welding gas service and allow seal maintenance without removing the reel from its mounting location.
• Exclusive low profile outlet risers and open drum slot design help create a non-crimping, flat, smooth hose wrap during rewind.
• Solid steel direct hand crank with smooth round handle gives the operator controlled manual retraction of long twin-line hose runs.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation and help reduce routine bearing maintenance.
• CNC spun and ribbed discs with rolled edges add strength while helping protect the hose during winding and unwinding.
• One-piece CNC robotically welded 12-gauge steel 'A' frame base provides a rigid mounting structure with the mounting pattern located in the steel base for installation and detachment.
• CPC powder coat finish helps resist chips and rust, while the adjustable tension brake helps prevent free wheeling during hose payout.

Applications:

• Welding and fabrication shops managing twin-line hose for oxy-fuel cutting, heating, brazing, and general welding gas workstations.
• Fleet and truck repair bays keep long welding hose runs organized around service pits, frame repair areas, and mobile equipment work zones.
• Industrial maintenance and MRO staging welding gas hose near plant repair areas where the hose must be stored off the floor between jobs.
• Construction and field service trailers providing manual hose storage where electrical or spring rewind retraction is not preferred.
• Farm, ranch, and equipment repair shops organizing long gas hose runs used for cutting, heating, and general metal repair work.

FAQs:

• Q: Does the Coxreels 1275WT-3-150-C include hose?
  A: Yes, Manufacturer model data lists this SKU with hose included. The 150 ft figure refers to the reel's hose capacity for compatible 3/8" welding hose.
• Q: What does 'dual hose' mean on this welding reel?
  A: Dual hose means the reel is built for two hose paths, commonly used with twin-line welding gas hose. The reel uses two external fluid paths with a brass swivel inlet on each side.
• Q: Can this reel be used for oxy-acetylene welding hose?
  A: Yes, when the hose selected is compatible with the gas service, hose size, fittings, and 200 PSI pressure rating. Always match the hose type and fittings to the gas system requirements before installation.
• Q: Why use a hand crank reel instead of a spring rewind reel?
  A: A hand crank reel gives the operator direct control when winding long, bulky hose. That can be helpful for welding hose because controlled rewind reduces hose whipping and makes it easier to guide the hose evenly onto the drum.
• Q: What mounting details should be checked before ordering?
  A: Confirm available space for the 22.88" overall width, 18.63" height, and 17.63" length, plus the 17.38" x 15.38" base footprint. Also verify hose routing so the inlet and outlet positions match the workstation layout.
