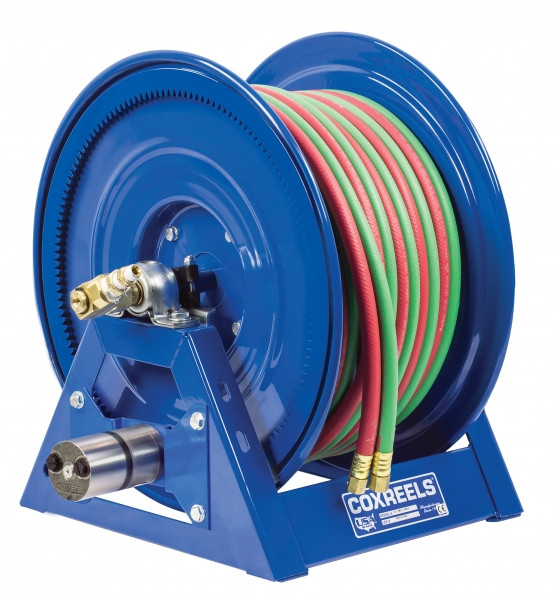

Coxreels 1275W-3-250-H Dual Hose Hydraulic Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 250' Hose Length | 200 Max PSI

Built for welding trucks, fabrication bays, and maintenance areas that need powered hose retrieval, the Coxreels 1275W-3-250-H is a dual hose hydraulic motor welding reel from the 1275W Series. This model provides 250 ft of 3/8" I.D. hose capacity for bulky twin line welding hose and is rated for 200 PSI welding gas service. The hydraulic motor rewind configuration is useful on service vehicles and equipment skids where hydraulic power is already available and manual crank rewind is not preferred.

The 1275W-3-250-H uses Coxreels' direct gear drive on motorized models, meaning the reel is driven without a chain for smooth powered rotation. Dual brass swivel inlets, one on each side of the reel, provide two external fluid paths for oxygen-acetylene or compatible welding hose configurations, while the low profile outlet risers and open drum slot help the twin line hose wrap flat across the drum. Its welded steel 'A' frame base and pillow block bearings support fixed installation on shop floors, service bodies, trailers, and wall-mounted welding stations.

Type: Dual Hose Hydraulic Motor Welding Reel | Series: 1275W Series | Model: 1275W-3-250-H | Rewind: Hydraulic Motor Rewind | Application: Welding Gas | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 250 ft | Max Pressure: 200 PSI | Swivel Inlets: Two 90° Full-Flow 3/8" NPT Brass Swivel Inlets | Swivel Seal: VITON | Overall Dimensions: 29.88" W x 19.13" H x 17.63" L | Base: 23.38" x 16" | Ship Weight: 132 lbs

Features:

• Hydraulic motor rewind supports powered retrieval of long twin line welding hose where hydraulic power is available.
• Reliable direct gear drive on motor driven models eliminates chain drive components for quiet, smooth reel rotation.
• Two external fluid paths with machined solid brass 90° full-flow 3/8" NPT swivel inlets, one on each side of the reel.
• VITON swivel seals support welding gas reel service and simplify seal maintenance.
• All welded steel 'A' frame construction provides a sturdy one-piece base for fixed or mobile reel installation.
• Exclusive low profile outlet risers and open drum slot design help produce a flat, smooth, non-crimping hose wrap.
• Permanently lubricated self-aligning pillow block bearings support smooth rotation with reduced routine bearing maintenance.
• CNC spun ribbed discs with rolled edges add strength, help protect the hose, and improve user safety during handling.

Made in USA:

2 Year Warranty

Applications:

• Welding and service trucks - powered rewind for long twin line hose runs used on mobile repair, fabrication, and torch service vehicles.
• Fabrication shops - organized storage for welding gas hose at cutting, heating, brazing, and general torch stations.
• Industrial maintenance and MRO - controlled hose handling for repair crews working around machinery, fixtures, and plant service areas.
• Construction and field service - hose management on trailers, skids, and mobile equipment where hydraulic power is already part of the setup.
• Fleet and equipment repair - keeping torch hose off the floor while maintaining reach for heating seized parts, cutting brackets, and repair work.

FAQs:

• Q: Does the Coxreels 1275W-3-250-H include hose?
  A: No. The manufacturer model table identifies this configuration as less hose. It provides 250 ft of 3/8" I.D. hose capacity, but compatible twin line welding hose must be supplied separately.
• Q: What does the 'H' suffix mean on this reel?
  A: The 'H' suffix identifies the hydraulic motor rewind configuration. This version is suited to trucks, skids, or workstations where hydraulic power is available for powered hose retrieval.
• Q: What type of hose is this reel built to manage?
  A: The 1275W Series is built for bulky twin line welding hose used in welding gas applications. Confirm hose material, fittings, pressure rating, and gas compatibility before installation.
• Q: Why choose hydraulic motor rewind instead of hand crank rewind?
  A: Hydraulic motor rewind reduces the manual effort required to retrieve long hose lengths. It is especially useful on mobile service equipment or shop installations where repeated rewinding of 250 ft hose runs would be time-consuming by hand.
• Q: What should be verified before ordering?
  A: Confirm the reel's 3/8" I.D. hose capacity, 250 ft length capacity, 200 PSI pressure rating, hydraulic rewind requirement, and 29.88" W x 19.13" H x 17.63" L overall dimensions against your welding gas system and mounting location.
