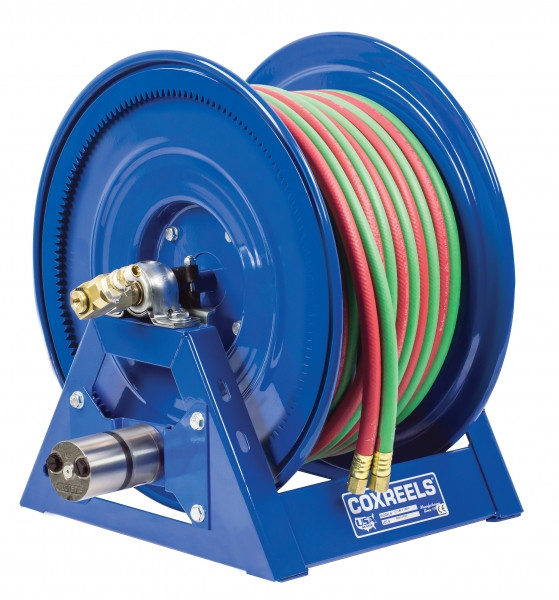

Coxreels 1275W-3-250-C Dual Hose Hand Crank Welding Reel | 1275W Series | 3/8" Hose Diameter | 250' Hose Length | 200 Max PSI

Built for managing long oxygen-acetylene welding hose runs in fabrication shops, service trucks, and maintenance areas, the Coxreels 1275W-3-250-C is a dual hose hand crank welding reel from the 1275W Series. This model is supplied with 250 ft of 3/8" I.D. oxy-acetylene welding hose, giving welders and service crews extended reach while keeping bulky twin line hose organized, elevated, and easier to rewind after use. Its 200 PSI pressure rating supports standard welding gas hose handling, while the bevel geared hand crank (a crank mechanism that uses gears to make manual rewind more controlled) helps retrieve long hose lengths without relying on spring rewind or electrical power.

The 1275W-3-250-C uses all welded steel 'A' frame construction, low profile outlet risers, and an open drum slot layout to promote smooth, flat hose wrap during rewind. Dual brass swivel inlets, one on each side of the reel, help maintain full-flow performance while the hose is pulled out or wound back in. For buyers comparing welding hose reels, the key fit points are hose size, hose length, pressure rating, rewind style, and available mounting space.

Type: Dual Hose Hand Crank Welding Reel | Series: 1275W Series | Model: 1275W-3-250-C | Rewind: Front Hand Crank, Bevel Geared Crank | Gas Service: Oxygen-Acetylene | Hose Included: Yes | Hose I.D.: 3/8" | Hose Length: 250 ft | Hose Fittings: 9/16"-18 UNF Welding Hose Fittings | Max Pressure: 200 PSI | Swivel Inlets: Two 90° Full-Flow 3/8" NPT Brass Swivel Inlets | Swivel Seal: VITON | Overall Dimensions: 28-7/8" W x 18-5/8" H x 17-5/8" L | Base: 23-3/8" x 15-3/8" | Approx. Ship Weight: 126 lbs

Features:

• Built to manage long lengths of bulky twin line welding hose in welding, fabrication, and service environments.
• Bevel geared hand crank rewind gives the user controlled manual hose retrieval without requiring a spring motor or electrical connection.
• Dual brass swivel inlets, one on each side of the reel, help maintain full-flow gas routing during hose payout and rewind.
• VITON swivel seals support the welding reel's oxygen-acetylene service configuration.
• All welded steel 'A' frame construction provides a stable reel structure for shop, truck, and facility mounting.
• Exclusive low profile outlet risers and open drum slot design help the twin line hose wrap flat and smooth across the drum.
• Permanently lubricated self-aligning pillow block bearings support smooth reel rotation during repeated use.
• Rolled edges, ribbed discs, and Coxreels proprietary CPC powder coat process add strength, surface protection, and safer hose handling.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication bays - organizing oxygen-acetylene twin line hose for cutting, heating, brazing, and general torch work.
• Welding and service trucks - storing long welding hose runs on mobile rigs where hose control and manual rewind are important.
• Maintenance, repair, and operations - keeping gas hose accessible for plant repair work, field maintenance, and equipment service areas.
• Automotive and fleet maintenance - supporting torch setups used for heating seized hardware, cutting brackets, and general repair tasks.
• Construction, railroad, pipeline, and marine work - managing extended hose lengths where welding and cutting operations move across larger work zones.

FAQs:

• Q: Does the Coxreels 1275W-3-250-C include hose?
  A: Yes. This model is listed as a hose-included 1275W Series reel with 250 ft of 3/8" I.D. oxygen-acetylene welding hose.
• Q: What does the 'C' suffix mean on this Coxreels welding reel?
  A: The 'C' suffix identifies the front hand crank bevel geared crank configuration. It is the manual rewind version, not the air motor or hydraulic rewind option.
• Q: Is this reel for oxygen-acetylene or other fuel gases?
  A: The 1275W-3-250-C is the oxygen-acetylene version with 9/16"-18 UNF welding hose fittings. Coxreels lists separate 1275WT models for T Grade other-fuel hose configurations.
• Q: Why choose a bevel geared hand crank reel instead of a spring rewind reel?
  A: A bevel geared hand crank reel gives the user controlled manual rewind for long, bulky twin line welding hose. This is useful when hose length, hose weight, or jobsite layout makes a spring rewind reel less practical.
• Q: What should be checked before ordering this reel?
  A: Confirm that 3/8" I.D. hose, 250 ft hose length, 200 PSI pressure rating, oxygen-acetylene service, and the 28-7/8" W x 18-5/8" H x 17-5/8" L overall dimensions match your welding setup and available mounting space.
