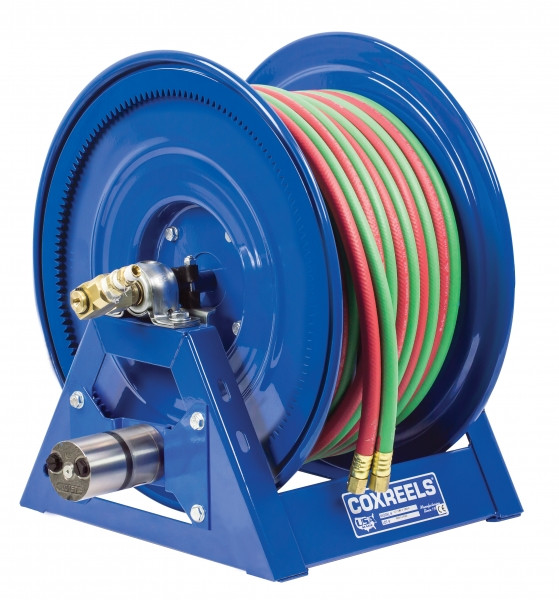

Coxreels 1275W-3-250-A Dual Hose Air Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 250' Hose Length | 200 Max PSI

Built for welding shops, fabrication bays, field service trucks, and plant maintenance teams that need extended hose reach with powered retrieval, the Coxreels 1275W-3-250-A Dual Hose Air Motor Welding Reel manages long runs of bulky twin line oxy-acetylene welding hose without hand cranking. This 1275W Series reel is configured with an air-powered rewind motor, 3/8" hose I.D., 250 ft hose length, and 200 PSI maximum pressure, giving crews the capacity to work across larger bays, outdoor repair areas, and mobile welding setups while keeping hose stored neatly between jobs.

The 1275W Series combines dual brass swivel inlets, VITON swivel seals, and an all-welded steel 'A' frame to support welding hose handling in daily shop and field use. Its low profile outlet risers and open drum slot help the twin hose lay flatter during rewind, while permanently lubricated self-aligning pillow block bearings support smooth drum rotation under the extra hose load of a 250 ft configuration.

Type: Dual Hose Air Motor Welding Reel | Series: 1275W Series | Model: 1275W-3-250-A | SKU: 1275W-3-250-A | Gas Service: Oxy-Acetylene | Hose I.D.: 3/8" | Hose Length: 250 ft | Max Pressure: 200 PSI | Rewind Type: Air - 4 Vane Aluminum Body Air Motor | Hose Fittings: 9/16"-18 UNF welding hose fittings | Swivel Inlets: Two 90° full-flow 3/8" NPT brass swivel inlets | Swivel Seals: VITON | Approx. Reel Weight: 126 lbs before air motor add-on | Air Motor Add-On Weight: 8 lbs | Size Index: 6

Features:

• Air-powered rewind motor helps retrieve the full 250 ft hose length with less manual effort than a hand crank reel.
• Two machined-from-solid brass 90° full-flow 3/8" NPT swivel inlets provide one connection on each side of the reel.
• VITON swivel seals support the oxy-acetylene welding gas service specified for this 1275W Series model.
• All-welded steel 'A' frame construction provides the reel structure needed for long twin line welding hose storage.
• Exclusive low profile outlet risers and open drum slot design help promote flat, smooth hose wraps during rewind.
• Permanently lubricated self-aligning pillow block bearings support smooth reel rotation with minimal bearing maintenance.
• Rolled edges and ribbed discs add strength to the reel sides while helping reduce sharp exposed edges around the drum.
• Durable proprietary CPC powder coat process helps protect the reel finish in shop, truck, and field environments.

Made in USA:

2 Year Warranty

Applications:

• Large welding shops and fabrication bays where 250 ft of twin line hose gives operators reach across fixtures, tables, and work zones.
• Welding and service trucks that need powered rewind to help control long hose runs after mobile cutting, heating, and repair work.
• Manufacturing plants and MRO departments using oxy-acetylene equipment for maintenance, repair, and general metalworking support.
• Automotive and fleet maintenance facilities where longer hose reach helps crews work around lifts, service bays, trucks, and equipment.
• Construction, railroad, pipeline, marine, and offshore work areas where extended hose capacity supports mobile welding and repair tasks.

FAQs:

• Q: Does the Coxreels 1275W-3-250-A include hose?
  A: Yes. The catalog lists this model as a hose-equipped oxy-acetylene welding reel with 3/8" I.D. hose and a 250 ft hose length.
• Q: What does the 'A' suffix mean on this Coxreels model?
  A: The 'A' suffix identifies the air motor rewind option. Coxreels describes this option as an air - 4 vane aluminum body air motor.
• Q: Is this reel for oxy-acetylene welding service?
  A: Yes. The 1275W-3-250-A is listed under oxygen-acetylene service and uses 9/16"-18 UNF welding hose fittings. For other fuel gases, review Coxreels 1275WT Series models with T Grade welding hose.
• Q: Why choose the 250 ft model instead of the 150 ft version?
  A: The 250 ft model provides more reach for larger shops, outdoor repair areas, service trucks, and mobile welding setups. The added hose length also increases reel size and weight, so available mounting space should be checked before ordering.
• Q: What should be verified before installation?
  A: Confirm the size index 6 reel dimensions, mounting footprint, hose routing, air motor clearance, and available air supply for the rewind motor. The reel should be mounted where the hose can pull out and rewind without sharp bends or interference.
