Built for dual hydraulic hose storage in rescue systems, service vehicles, and high-pressure tool setups, the Coxreels 1275HPL-A-8 is a 1275HP Series rim rewind hose reel with 1/4" hose I.D. capacity, 135 ft hose length, and a 10,000 PSI maximum pressure rating. The dual hydraulic layout uses two high-pressure swivel inlets and low-profile outlet risers to help route paired hydraulic lines cleanly across the drum, reducing hose crossing and supporting a flatter wrap during rewind.
The 1275HPL-A-8 is supplied less hose, making it a practical choice when the buyer needs to install a specific hydraulic hose brand, length, fitting configuration, or replacement hose assembly. Its welded steel "A" frame, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and CPC powder coat finish support reliable reel operation in hydraulic maintenance, mobile equipment, utility, fleet, and emergency-response environments where hose control and pressure rating are critical.

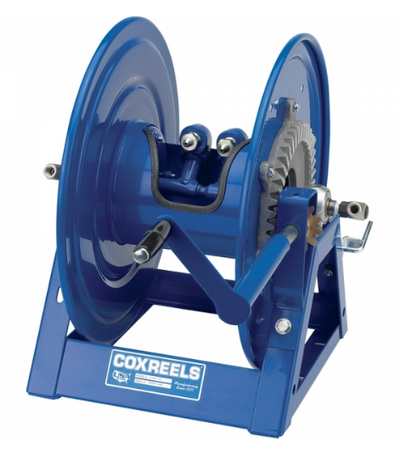

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Reel | Series: 1275HP Series | Model: 1275HPL-A-8 | Rewind Type: Rim Rewind / Hand Crank | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Hose Included: No | Swivel Inlets: Two 1/4" high pressure 90° full-flow melanized steel swivel inlets | Outlet Risers: M14 x 1.5 female | Swivel Seals: VITON | Ship Weight: 37 lbs | Overall Dimensions (W x H x L): 17.5" x 18.63" x 17.63" | Mounting Pattern (M x N): 11.44" x 10" | Base (X x Y): 13.38" x 15.38"
Features:
- Dual hydraulic reel configuration supports paired hydraulic hose runs for emergency rescue systems and other high-pressure hydraulic tools.
- Two high pressure 90° full-flow melanized steel 1/4" swivel inlets help maintain fluid routing while allowing the reel drum to rotate during rewind and pay-out.
- VITON swivel seals support compatibility with hydraulic service where the seal material must tolerate demanding fluid and pressure conditions.
- Two low profile M14 x 1.5 female outlet risers and open drum slot design help promote a non-crimping, flat, smooth hose wrap.
- One-piece, all CNC robotically welded 12-gauge steel "A" frame base provides a rigid mounting structure without relying on a bolted frame assembly.
- CNC-spun ribbed discs with rolled edges add strength while helping protect the hose path during use and rewind.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with reduced bearing maintenance.
- CPC powder coat finish helps resist chips and rust in shop, vehicle, and equipment-service environments.
Made in USA:
Applications:
- Emergency rescue hydraulic systems where paired high-pressure hose lines must be stored, deployed, and rewound together.
- Utility and fleet service trucks carrying hydraulic tools, rescue equipment, or specialty maintenance hose assemblies.
- Industrial maintenance shops using high-pressure hydraulic tools that require organized hose storage near service bays or work cells.
- Mobile equipment service operations supporting hydraulic cylinders, presses, jacks, and portable power units.
- Fire, safety, and municipal equipment builds where reel mounting space, hose capacity, and pressure rating must be planned before installation.
FAQs:
- Q: What does less hose mean on the 1275HPL-A-8?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hydraulic hose separately, matched to the reel capacity, pressure rating, fittings, and application requirements. - Q: Is the 1275HPL-A-8 for one hose or two hoses?
A: This is a dual hydraulic hose reel. It is built with two high-pressure swivel inlets and two outlet risers so paired hydraulic hose lines can be managed on the same reel. - Q: Can this reel be used for 10,000 PSI hydraulic service?
A: Yes, the reel is rated for up to 10,000 PSI. The installed hose, fittings, and connected hydraulic tools must also be rated for the same working pressure and fluid service. - Q: What is the difference between rim rewind and geared crank models?
A: A rim rewind reel is manually rotated from the reel rim, while a geared crank model uses a crank mechanism to rewind the hose. This SKU is listed as the 1275HPL-A-8 rim rewind / hand crank configuration; confirm the exact rewind style against your internal item setup before publishing. - Q: What should be checked before installing this reel?
A: Verify the mounting footprint, overall reel dimensions, hose O.D., hose bend radius, fitting style, pressure rating, and available clearance for rewind and hose pay-out.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-A-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-A-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-A-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-A-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-A-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-A-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-A-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-A-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
