Built to handle long lengths of large-diameter hose for increased-volume delivery, the Coxreels 1185-2024-EB Electric DC Motor Rewind Hose Reel provides powered retrieval for up to 100 ft of 1-1/2 in. I.D. hose. Its 24V DC motor configuration drives the drum through a reliable chain-and-sprocket system, reducing the manual effort required to retrieve a large hose assembly. The motorized rewind format is suited to fixed and mobile installations where controlled hose storage is required.
This 1185 Series model carries a 1,500 PSI maximum working pressure and uses an external fluid path with an in-line full-flow NPT swivel inlet. Coxreels' exclusive low-profile outlet riser and open drum design produce a non-crimping, flat, smooth hose wrap. The one-piece, robotically welded 12-gauge steel A-frame supports the additional weight of large-diameter hose, while lubricated horizontal surface-mount bearings promote easy reel rotation.

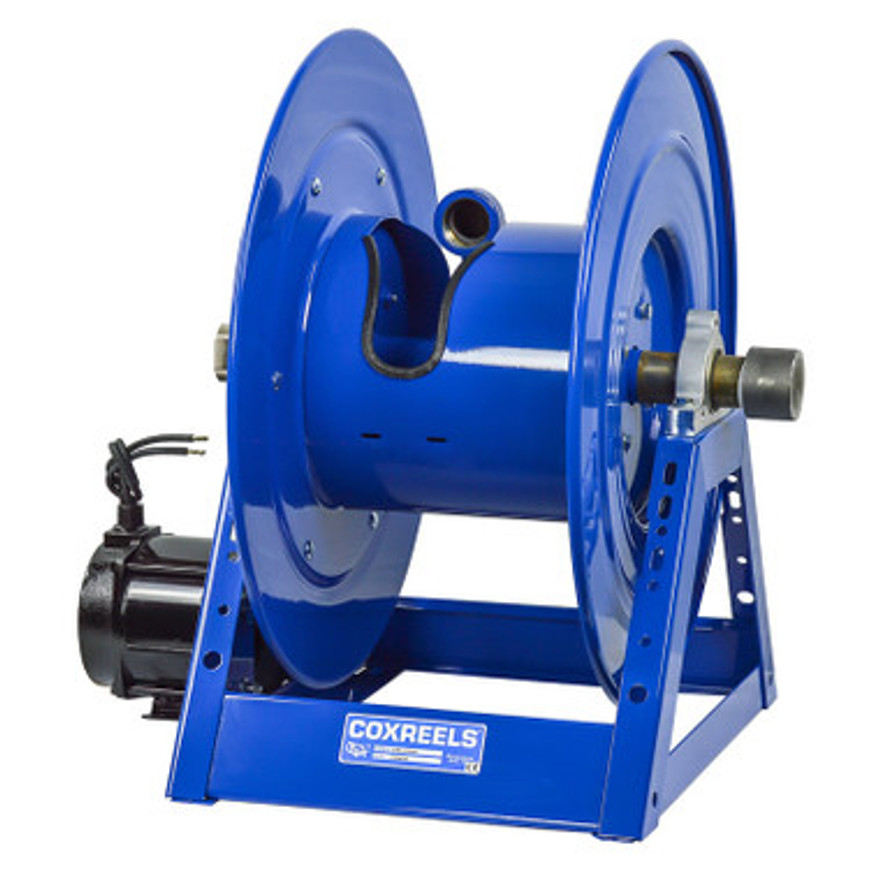

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric DC Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2024-EB | Configuration: Less Hose | Motor Voltage: 24V DC | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 100 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 34.63 in. W x 26 in. H x 24 in. L | Mounting Pattern: 23.25 in. M x 16 in. N | Base Dimensions: 25.5 in. X x 22.25 in. Y
Features:
- 24V DC electric motor configuration provides powered hose retrieval.
- Reliable chain-and-sprocket drive transfers motor power to the reel drum.
- External fluid path incorporates an in-line full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Exclusive low-profile outlet riser and open drum design provide a non-crimping, flat, smooth hose wrap.
- One-piece, CNC robotically welded 12-gauge steel A-frame base strengthens the reel structure.
- Lubricated horizontal surface-mount bearings support easy reel rotation.
- Adjustable tension brake helps prevent free-wheeling during operation.
- CNC-spun ribbed discs with rolled edges provide strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery systems using compatible large-diameter hose.
- Mobile applications requiring powered retrieval of long hose assemblies.
- Fixed hose-handling installations equipped with a compatible 24V DC electrical supply.
- Applications operating within the reels' published hose-capacity and working-pressure limits.
FAQs:
- Q: Does the Coxreels 1185-2024-EB include hose?
A: No. Coxreels lists the hose field as "No," meaning this reel is supplied without hose. A compatible hose must be purchased and installed separately. - Q: What hose size and length will this reel hold?
A: The manufacturer lists a capacity of 100 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: What power supply does the rewind motor use?
A: The EB configuration uses a 24V DC electric motor rewind system. - Q: What is the maximum working pressure?
A: Coxreels rates the 1185-2024-EB for a maximum working pressure of 1,500 PSI. - Q: How does the reel help prevent hose crimping?
A: The low-profile outlet riser and open drum design guide the hose into a flat, smooth wrap during powered retrieval.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2024 | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-A | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-AB | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-C | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-E | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-EA | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-ED | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
| 1185-2024-EB | 1-1/2" | 2-1/16" | 100 | 1-1/4" | 1-13/16" | 125 | 1-1/2" F NPT | 1,500 | 94 | 4 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
