Coxreels 1185-2024-AB Air Motor Rewind Hose Reel | 1185 Series | 1-1/2" Hose Diameter | 100' Hose Length | 1500 Max PSI | Less Hose

Built to manage long lengths of large-diameter hose for increased-volume delivery, the Coxreels 1185-2024-AB Air Motor Rewind Hose Reel provides powered retrieval for up to 100 ft of 1-1/2 in. I.D. hose. Its air-motor configuration drives the drum through a chain-and-sprocket system, reducing the manual effort required to retrieve a large hose assembly. The reel's capacity and powered rewind arrangement support fixed and mobile installations where organized hose deployment and storage are required.

This 1185 Series model is rated for a 1,500 PSI maximum working pressure. Coxreels' low-profile outlet riser and open drum design promote a non-crimping, flat, smooth hose wrap, while the all-welded steel A-frame supports the additional weight of large-diameter hose. Lubricated horizontal surface-mount bearings assist reel rotation, and an adjustable tension brake helps prevent free-wheeling during operation.

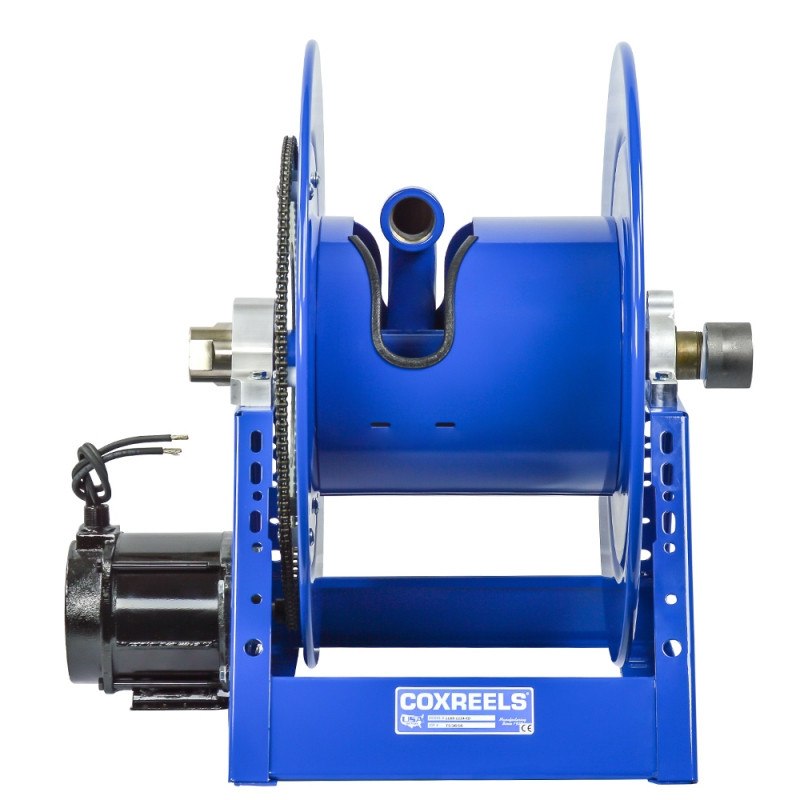

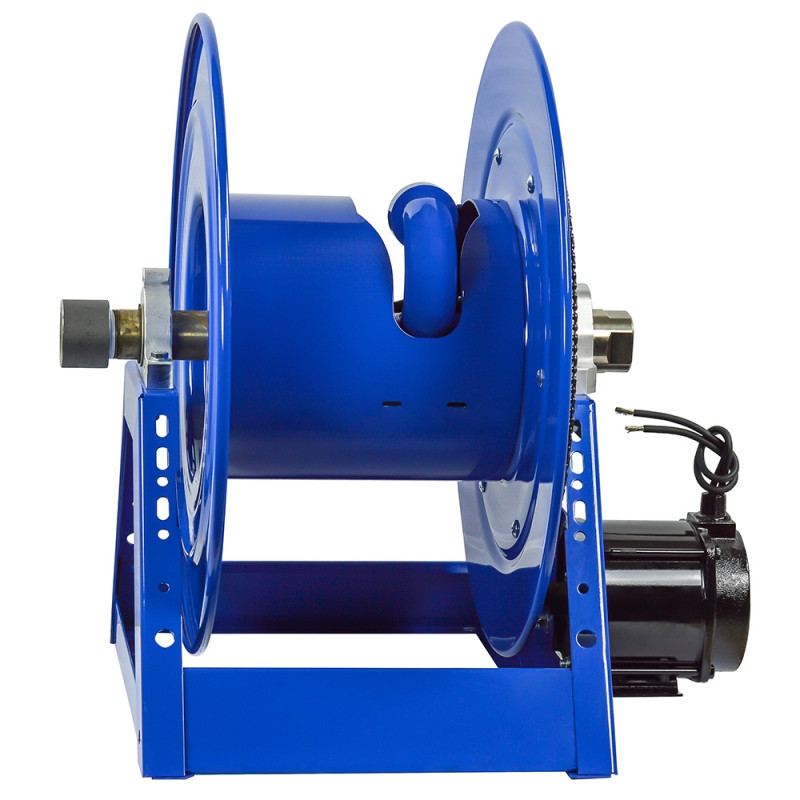

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Air Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2024-AB | Configuration: Less Hose | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 100 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 31.88 in. W x 26 in. H x 24 in. L | Mounting Pattern: 23.25 in. M x 16 in. N | Base Dimensions: 25.5 in. X x 22.25 in. Y

Features:

• Air motor configuration provides powered retrieval of large-diameter hose.
• Reliable chain-and-sprocket drive transfers motor power to the reel drum.
• External fluid path incorporates an in-line, full-flow NPT swivel inlet.
• NITRILE seals are used in the swivel assembly.
• Low-profile outlet riser and open drum design provide a non-crimping, flat, smooth hose wrap.
• All-welded steel A-frame construction strengthens the reel structure.
• Lubricated horizontal surface-mount bearings support easy reel rotation.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Rolled edges and ribbed discs provide strength, hose protection, and operator safety.
• Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.

Made in USA:

2 Year Warranty

Applications:

• Increased-volume delivery systems using compatible large-diameter hose.
• Mobile applications requiring powered retrieval of long hose assemblies.
• Stationary hose-handling installations operating within the reels' published capacity and pressure rating.
• Installations where an all-welded A-frame supports the additional weight of 100 ft of 1-1/2 in. hose.

FAQs:

• Q: Does the Coxreels 1185-2024-AB include hose?
  A: No. Coxreels lists this model without hose. A compatible hose must be selected and installed separately.
• Q: What hose size and length will this reel hold?
  A: The manufacturer lists a capacity of 100 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D.
• Q: How is the hose rewound?
  A: The AB model uses an air-motor rewind configuration with a chain-and-sprocket drive.
• Q: What is the maximum working pressure?
  A: Coxreels rates the 1185-2024-AB for a maximum working pressure of 1,500 PSI.
• Q: How does the reel help prevent hose crimping?
  A: Its low-profile outlet riser and open drum design guide the hose into a flat, smooth wrap during retrieval.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
