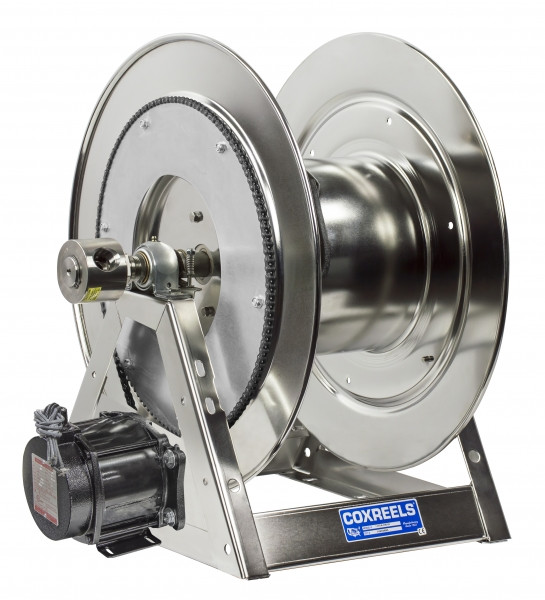

Coxreels 1175-6-200-ED-SP stainless steel electric 12V DC explosion-proof 1/2HP motor rewind hose reel offers automated hose management for up to 200' of 1" hose in hazardous and corrosive environments. Its 12V DC 1/2HP explosion-proof motor ensures smooth, safe, and reliable retraction, reducing manual effort. Rated for 3,000 PSI, the 1175-SS Series supports air, water, and oil service, making it ideal for chemical, food processing, marine, and washdown applications that require corrosion-resistant, explosion-proof hose handling over long distances.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Electric 12V DC Explosion Proof 1/2HP Motor Rewind Hose Reel | Series: 1175-SS Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 12V DC
Features:
- 12V DC 1/2HP explosion-proof motor provides safe and automated hose rewind
- Stainless steel construction resists corrosion in washdown, marine, and chemical environments
- Swivel mounting allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design conserves workspace while accommodating full hose length
- Mounting hardware included for secure installation
Made in USA:
Applications:
- Food processing & chemical facilities requiring corrosion-resistant, explosion-proof hose management
- Marine & washdown environments needing durable, automated hose handling
- Industrial maintenance departments managing long lengths of air, water, or oil hose
- Heavy-duty operations needing 200' hose capacity for extended reach applications
FAQs:
- Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: Is the DC motor suitable for hazardous environments?
A: Yes, the 12V DC 1/2HP motor is certified explosion-proof for use in flammable or combustible atmospheres. - Q: Can this reel handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1" hose diameter for air, water, or oil applications. - Q: Can it be mounted horizontally or vertically?
A: Yes, the swivel mount allows flexible installation on walls, ceilings, or benches. - Q: Is outdoor use allowed?
A: Stainless steel construction allows use in wet or corrosive environments, but protection from extreme weather is recommended.
| LESS HOSE | SIZE INDEX | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
|
SS1175 SERIES- Hand Crank & Motor Driven
|
||||||||||
| 1175-6-200-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-A-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-E-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-EA-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-EB-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-ED-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-EJ-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-H-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
