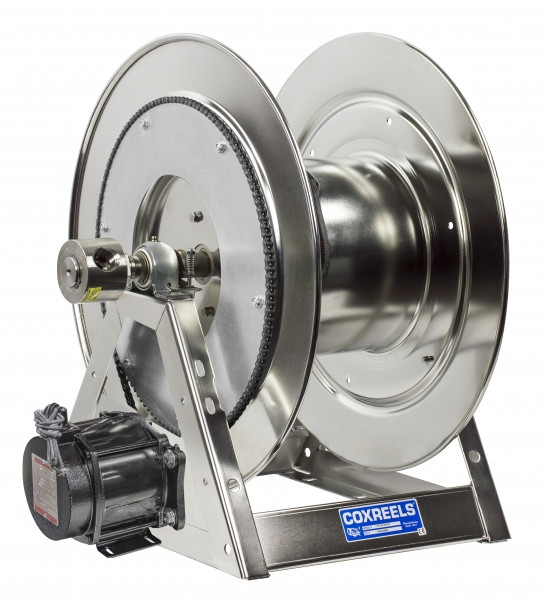

Coxreels 1175-6-200-A-SP stainless steel compressed air #4 Gast motor rewind hose reel provides automated hose management for up to 200' of 1" hose in corrosive or washdown environments. The compressed air-powered #4 Gast motor delivers smooth, controlled hose retraction, reducing manual effort while extending hose life. Rated for 3,000 PSI, the 1175-SS Series supports air, water, and oil service, making it ideal for industrial maintenance, chemical, marine, and food processing applications requiring corrosion-resistant, durable hose handling.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Compressed Air #4 Gast Motor Rewind Hose Reel | Series: 1175-SS Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil
Features:
- Compressed air #4 Gast motor provides smooth, automated hose rewind for minimal manual effort
- Stainless steel construction resists corrosion in washdown, marine, and chemical environments
- Swivel mounting allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design conserves workspace while accommodating full hose length
- Mounting hardware included for secure installation
Made in USA:
Applications:
- Food processing & chemical facilities requiring corrosion-resistant hose management
- Marine & washdown environments needing durable, automated hose handling
- Industrial maintenance departments managing long lengths of air, water, or oil hose
- Heavy-duty operations needing 200' hose capacity for extended reach applications
FAQs:
- Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: How is hose rewind powered?
A: The #4 Gast compressed air motor provides controlled automated retraction for heavy-duty industrial use. - Q: Can this reel handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1" hose diameter for air, water, or oil applications. - Q: Can it be mounted horizontally or vertically?
A: Yes, the swivel mount allows flexible installation on walls, ceilings, or benches. - Q: Is outdoor use allowed?
A: Stainless steel construction allows use in wet or corrosive environments, but protection from extreme weather is recommended.
| LESS HOSE | SIZE INDEX | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
|
SS1175 SERIES- Hand Crank & Motor Driven
|
||||||||||
| 1175-6-200-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-A-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-E-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-EA-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-EB-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-ED-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-EJ-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
| 1175-6-200-H-SP | 1" | 1 7/16" | 200 | 3/4" | 1 1/4" | 300 | 1" F NPT | 3,000 | 83 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motorized Hose Reel
- Series
- 1175-SS Series
- Hose Inside Diameter (in.)
- 1
- Hose Outside Diameter (in.)
- 1-7/16
- Hose Length (ft.)
- 200
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
