Coxreels 1125WCL-6-EA 115V Explosion Proof Electric Motor Rewind Welding Cable Reel | 1125WCL Series | Up to 2 AWG x 300' Capacity | 450 Amps | Less Cable

Built for welding cable management in fabrication shops, service trucks, maintenance bays, and grounding lead setups, the Coxreels 1125WCL-6-EA is a 115V explosion proof electric motor rewind welding cable reel from the 1125WCL Series. This reel is rated for 450 amps through a drum-located slip ring assembly, allowing electrical current to pass through the reel while keeping cable storage organized and protected. With capacity for up to 2 AWG x 300 ft welding cable, it helps reduce loose cable on the floor, speeds up rewind after use, and supports cleaner lead management around welding stations.

The 1125WCL-6-EA uses a 1/2 HP electric motor rewind configuration with a direct gear drive for controlled powered retrieval. Its narrow drum layout places electrical components inside the drum, helping conserve mounting width where space is limited. This model is supplied less cable, making it suitable for shops that already stock preferred welding cable or need to match cable size and length to a specific amperage, workstation, or grounding lead requirement.

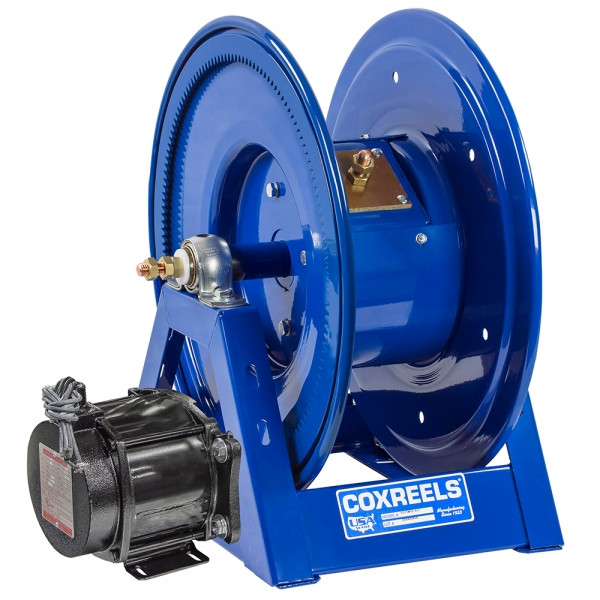

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any welding cable. Please note this before ordering.

Type: Motorized Welding Cable Reel | Series: 1125WCL Series | Model: 1125WCL-6-EA | Rewind: Electric Motor Rewind | Motor: 115V Explosion Proof, 1/2 HP | Configuration: Less Cable | Cable Capacity: Up to 2 AWG x 300 ft | Gauge Capacity: #2, #1, #1/0, #2/0 | Amp Rating: 450 AMPS | Ship Weight: 64 lbs | Overall Dimensions: 19.88" W x 19.13" H x 17.5" L | Mounting Pattern: 9.44" M x 10" N | Base: 11.38" X x 16" Y

Features:

• Drum-located slip ring assembly provides access through a removable panel for simple routine maintenance without removing the reel from its mount.
• 450 AMP rated slip ring supports welding current transfer for electrode and grounding lead applications.
• 115V explosion proof electric motor rewind helps retrieve welding cable without manual cranking in compatible work environments.
• Narrow-width reel layout places electrical components inside the drum to save installation space where mounting clearance is limited.
• Reliable direct gear drive provides smooth motor-driven rotation without a chain.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• One-piece CNC robotically welded 12 gauge steel A frame base provides a stable mounting structure for shop, bench, wall, or vehicle installations.
• CNC spun and ribbed discs with rolled edges add strength while helping protect the welding cable during payout and rewind.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops: Managing long electrode or grounding leads around welding bays, fixtures, and work tables.
• Industrial maintenance and MRO: Keeping welding cable organized for repair work on machinery, frames, brackets, and plant equipment.
• Service trucks and mobile welding rigs: Storing cable securely during transport and rewinding it after field repair work.
• Fleet and equipment repair: Supporting cable payout for welding repairs on trailers, heavy equipment, structural components, and shop-built assemblies.
• Workstation cable organization: Reducing floor clutter and helping protect expensive welding cable from dragging, tangling, and repeated handling damage.

FAQs:

• Q: Does the Coxreels 1125WCL-6-EA include welding cable?
  A: No. This model is supplied less cable, which means the reel is provided without welding cable installed. Select compatible welding cable separately based on the gauge, length, and amperage requirements of your welding setup.
• Q: What does the 450 AMP rating refer to?
  A: The 450 AMP rating refers to the reel's slip ring assembly, which carries electrical current through the reel. The cable, welding machine, connectors, duty cycle, and installation must also be properly matched to the application.
• Q: What cable sizes fit this reel?
  A: This reel is listed for #2, #1, #1/0, and #2/0 welding cable, with maximum capacities varying by cable size. It can hold up to 300 ft of #2 AWG cable, or shorter lengths as cable diameter increases.
• Q: What is the benefit of an electric motor rewind reel?
  A: Electric motor rewind reduces manual effort when retrieving long, heavy welding cable. This is especially useful on service trucks, larger fabrication areas, and workstations where cable is pulled out and rewound repeatedly.
• Q: Can this reel be used for both electrode and grounding leads?
  A: Yes, the 1125WCL Series is built for electrode and grounding lead applications. Coxreels also notes that a stacking bracket is available to help create an organized lead and ground combination when the installation requires two reels.
