Coxreels 1125WCL-6-A Air Motor Rewind Welding Cable Reel | 1125WCL Series | Up to 2 AWG x 300' Capacity | 450 Amps | Less Cable

Built for welding and grounding cable management in fabrication shops, service trucks, and industrial work areas, the Coxreels 1125WCL-6-A is an 1125WCL Series air motor rewind welding cable reel with capacity for up to 2 AWG x 300 ft welding cable and a 450 amp slip ring rating. The air motor rewind system helps retrieve long cable runs without hand cranking, which is especially useful when heavy welding leads must be pulled back across shop floors, vehicle bays, or mobile service layouts.

The 1125WCL Series is built for electrode and grounding lead applications, with all electrical components located inside the drum for a narrower reel profile. A drum-located slip ring assembly (the rotating electrical connection that transfers current while the drum turns) allows the reel to carry welding current through the reel, while the direct gear drive provides powered rewind without a chain drive. This less-cable configuration lets the installer match cable gauge and length to the welder, amperage requirement, and work area layout.

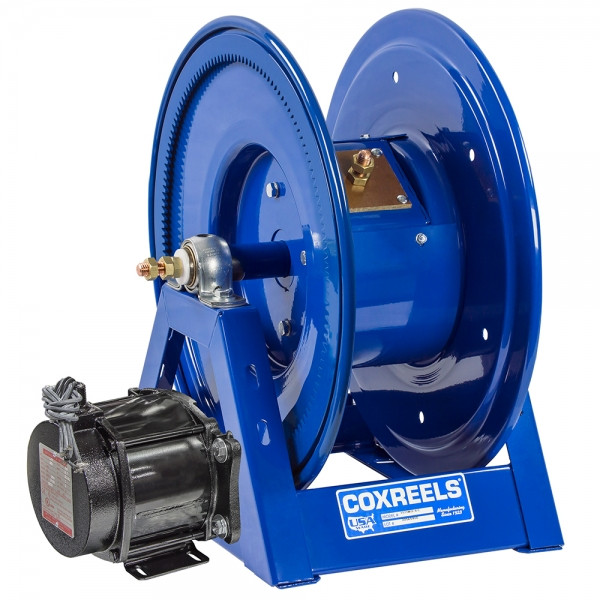

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cable. Please note this before ordering.

Type: Air Motor Rewind Welding Cable Reel | Series: 1125WCL Series | Model: 1125WCL-6-A | Configuration: Less Cable | Cable Gauge Capacity: #2, #1, #1/0, #2/0 AWG | Maximum Cable Capacity: Up to 2 AWG x 300 ft | Amperage: 450 AMP | Rewind Type: Air Motor Rewind | Ship Weight: 46 lbs | Overall Dimensions: 17.25" W x 18.5" H x 17.5" L | Mounting Pattern: 9.44" M x 10" N | Base: 11.38" X x 16" Y

Features:

• Air motor rewind retrieves welding cable without manual cranking, reducing effort when managing long cable runs.
• Drum-located slip ring assembly includes an easy-access removable panel for routine maintenance without removing the reel from its mount.
• 450 AMP rated slip ring carries welding current through the reel for electrode and grounding lead applications.
• Direct gear drive provides smooth powered rotation without a chain drive.
• Narrow-width reel layout places electrical components inside the drum for installation in restricted spaces.
• One-piece CNC robotically welded 12 gauge steel A-frame base provides a rigid mounting structure.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect welding cable during rewind.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops - managing long electrode or grounding leads around welding booths, fixtures, and fabrication tables.
• Mobile welding and service trucks - keeping welding cable organized on truck beds, trailers, and field service rigs.
• Industrial maintenance and MRO - storing welding leads near repair bays, machinery service areas, and plant maintenance stations.
• Automotive, fleet, and equipment repair - routing cable for frame repair, equipment welding, and general service work.
• Construction, mining, and rail support - controlling welding cable on jobsites where long leads are frequently extended and retrieved.

FAQs:

• Q: Does the Coxreels 1125WCL-6-A include welding cable?
  A: No. This model is supplied less cable, so welding cable must be purchased separately. Choose cable gauge and length based on the welding machine, amperage requirement, and voltage drop considerations.
• Q: What does the 450 AMP rating mean?
  A: The reel uses a 450 AMP rated slip ring, which is the rotating electrical connection inside the drum. Always confirm the welding process, duty cycle, cable gauge, and total lead length before installation.
• Q: What cable sizes can this reel hold?
  A: The 1125WCL-6-A supports the 1125WCL-6 capacity range: up to 300 ft of #2 AWG, 250 ft of #1 AWG, 200 ft of #1/0 AWG, or 150 ft of #2/0 AWG cable.
• Q: Why choose air motor rewind instead of hand crank?
  A: Air motor rewind reduces the manual effort required to retrieve long, heavy welding leads. It is useful when the reel is installed on a service truck, production floor, or work area where cable is extended and retrieved frequently.
• Q: Can this reel be used for both lead and ground cable?
  A: Yes, the 1125WCL Series is used for electrode and grounding lead applications. A stacking bracket is available from Coxreels when a lead and ground combination needs to be organized in one setup.
