When welding cable has to move cleanly between the reel and the work area, the Coxreels 1125WCL-12-ED gives fabrication crews, maintenance teams, and mobile welding operators a powered storage solution for long grounding or electrode leads. This 1125WCL Series welding cable reel is supplied less cable and is rated for 450 amps, with capacity for up to 2 AWG x 600 ft, 1 AWG x 500 ft, 1/0 AWG x 400 ft, or 2/0 AWG x 300 ft. The 12V DC, 1/2 HP explosion-proof reversible motor supports powered rewind in mobile or low-voltage DC installations where hand-crank retrieval is not the preferred setup.
The 1125WCL-12-ED keeps electrical components inside the drum, creating a narrow reel profile that helps conserve space on service trucks, welding skids, shop walls, and equipment bays. A drum-located slip ring assembly carries current through the reel and is rated at 450 amps, while the direct gear drive on motorized models provides smooth rewind without a chain drive. Because this model is sold without cable, buyers can match cable gauge and length to their welding process, amperage requirements, and jobsite layout.

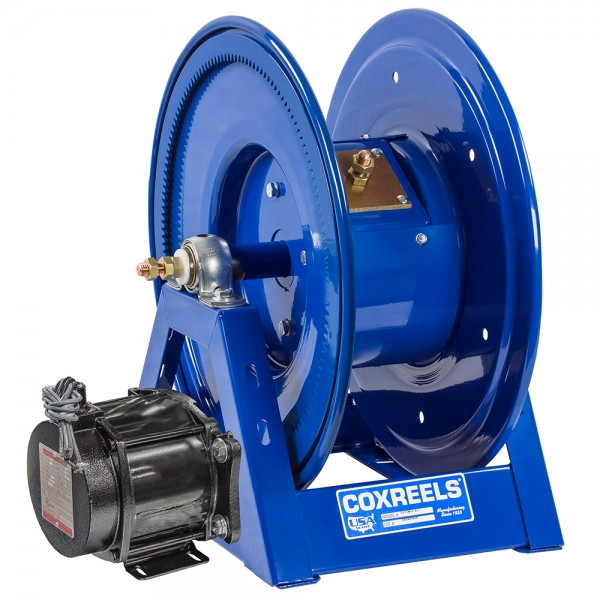

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any welding cable. Please note this before ordering.
Type: Motor Rewind Welding Cable Reel | Series: 1125WCL Series | Configuration: Less Cable | Motor: 12V DC, 1/2 HP Explosion-Proof Reversible | Cable Capacity: 2 AWG x 600 ft, 1 AWG x 500 ft, 1/0 AWG x 400 ft, 2/0 AWG x 300 ft | Amperage Rating: 450 Amps | Ship Weight: 71 lbs | Overall Dimensions: 25.88" W x 19.13" H x 17.5" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y
Features:
- 12V DC, 1/2 HP explosion-proof reversible motor supports powered cable rewind for mobile welding rigs and DC-powered installations.
- Drum-located slip ring assembly allows routine maintenance access through a removable panel without removing the reel from its mount.
- 450 amp rated slip ring carries electrical current through the reel for welding cable applications.
- Designed for electrode and grounding lead use in welding, repair, and fabrication environments.
- Narrow-width reel layout helps fit the reel into restricted mounting areas where standard-width cable reels may take up too much space.
- Permanently lubricated, self-aligning pillow block bearings support smooth rotation during cable pay-out and rewind.
- Long-handled locking pin secures the drum from rotation during storage or transport.
- Direct gear drive on motorized models provides dependable rewind operation without chain-drive components.
Made in USA:
Applications:
- Welding service trucks where 12V DC powered rewind helps manage long cable runs in mobile repair work.
- Fabrication shops using grounding or electrode leads that need controlled storage between welding stations and workpieces.
- Manufacturing plants and industrial MRO areas supporting equipment repair, weld prep, and plant maintenance tasks.
- Pipeline, construction, railroad, and mining service crews that frequently deploy and retrieve welding cable in field environments.
- Marine, shipbuilding, and offshore repair locations where organized cable storage helps reduce floor clutter around work zones.
FAQs:
- Q: Does this Coxreels 1125WCL-12-ED reel come with welding cable installed?
A: No. This is a less cable model, which means the reel is supplied without welding cable. Select compatible welding cable separately based on the gauge, length, and amperage requirements of your welding system. - Q: What is the difference between the 1125WCL-12-ED and the 1125WCL-12-EB?
A: The key difference is the motor voltage. The 1125WCL-12-ED uses a 12V DC, 1/2 HP explosion-proof reversible motor, while the 1125WCL-12-EB uses a 24V DC, 1/2 HP explosion-proof reversible motor. - Q: What cable capacity does this model support?
A: This reel is listed for up to 2 AWG x 600 ft, 1 AWG x 500 ft, 1/0 AWG x 400 ft, or 2/0 AWG x 300 ft. Actual fit can depend on the cable's outside diameter, so verify cable dimensions before installation. - Q: What does the 450 amp rating mean?
A: The 450 amp rating refers to the current-carrying capacity of the reel's slip ring assembly. The welding cable, connectors, and power source should also be selected to match the intended amperage and duty requirements. - Q: Is this reel suited for a mobile welding rig?
A: Yes, the 12V DC motor configuration makes this model a strong fit for welding and service truck applications, provided the vehicle or auxiliary system can supply the required DC power and the reel has adequate mounting space.
| LESS CABLE | SIZE INDEX | |||||
|---|---|---|---|---|---|---|
| SKU | CABLE TYPE & CAPACITY | APRX. LBS. |
||||
| #2 | #1 | #1/0 | #2/0 | |||
| 1125WCL-12-EA | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-EB | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-ED | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-A | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-C | 600' | 500' | 400' | 300' | 45 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
