Coxreels 1125WCL-12-EB 24V DC Electric Motor Rewind Welding Cable Reel | 1125WCL Series | Up to 2 AWG x 600' Capacity | 450 Amps | Less Cable

When welding cable needs to be managed on service trucks, fabrication floors, or fixed welding stations, the Coxreels 1125WCL-12-EB provides motorized rewind control for long electrode or grounding lead runs. This 1125WCL Series welding cable reel is supplied less cable and is rated for 450 amps, with capacity for up to 2 AWG x 600 ft, 1 AWG x 500 ft, 1/0 AWG x 400 ft, or 2/0 AWG x 300 ft. The 24V DC, 1/2 HP explosion-proof reversible motor helps retrieve cable without hand cranking, while the direct gear drive eliminates chain-driven rewind components for smoother, quieter operation.

Built with Coxreels' narrow-width welding reel layout, the 1125WCL-12-EB keeps electrical components located inside the drum to help save mounting space and support cleaner cable storage. A drum-located slip ring assembly carries electrical current through the reel and is rated at 450 amps, making this model a practical choice for shops and mobile welding setups that need organized cable handling without purchasing pre-installed cable.

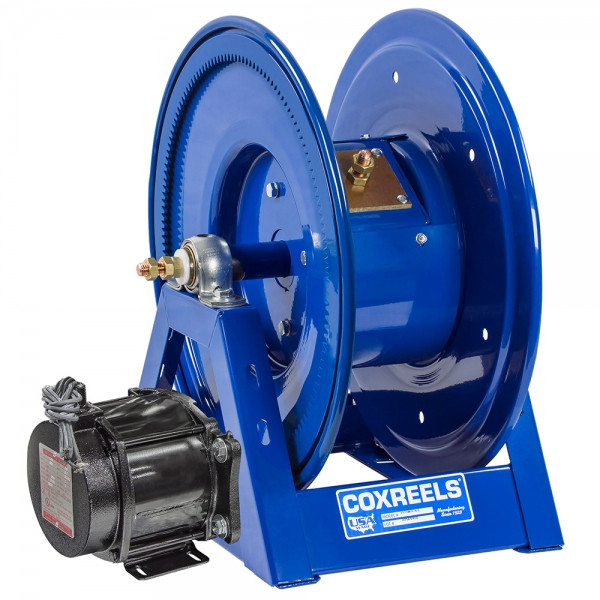

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any welding cable. Please note this before ordering.

Type: Motor Rewind Welding Cable Reel | Series: 1125WCL Series | Configuration: Less Cable | Motor: 24V DC, 1/2 HP Explosion-Proof Reversible | Cable Capacity: 2 AWG x 600 ft, 1 AWG x 500 ft, 1/0 AWG x 400 ft, 2/0 AWG x 300 ft | Amperage Rating: 450 Amps | Ship Weight: 71 lbs | Overall Dimensions: 25.88" W x 19.13" H x 17.5" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y

Features:

• 24V DC, 1/2 HP explosion-proof reversible motor supports powered cable rewind where manual cranking is not preferred.
• Drum-located slip ring assembly provides simple routine maintenance access and carries electrical current through a 450 amp rated slip ring.
• Designed for electrode and grounding lead applications in welding and fabrication environments.
• Narrow-width reel design helps conserve installation space on service trucks, welding skids, shop walls, and equipment bays.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with less routine bearing service.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Direct gear drive on motor-driven models provides smooth rotation without a chain drive.
• CPC powder coat finish helps resist chips and rust in everyday shop and field conditions.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication bays where long grounding or electrode leads need organized storage between jobs.
• Welding and service trucks that require a powered rewind reel to help manage cable in mobile repair environments.
• Industrial maintenance and MRO departments supporting plant welding, repair stations, and equipment service areas.
• Pipeline, construction, railroad, and mining maintenance operations where welding cable is frequently deployed and retrieved.
• Marine, shipbuilding, and offshore repair settings where controlled cable storage helps reduce clutter around work zones.

FAQs:

• Q: Does the 1125WCL-12-EB include welding cable?
  A: No. This model is supplied less cable, meaning the reel is sold without welding cable installed. Select compatible cable separately based on the gauge and length required for your welding setup.
• Q: What cable sizes and lengths fit this reel?
  A: This model is listed for up to 2 AWG x 600 ft, 1 AWG x 500 ft, 1/0 AWG x 400 ft, or 2/0 AWG x 300 ft. Cable capacity changes by cable diameter, so confirm the exact cable outside diameter before final installation.
• Q: What does the 450 amp rating refer to?
  A: The 450 amp rating refers to the reel's electrical current carrying capacity through the slip ring assembly. Match the reel, cable, and welding system requirements before use.
• Q: What does the EB motor suffix mean?
  A: For Coxreels motor options, EB indicates a 24V DC, 1/2 HP explosion-proof reversible motor. This provides powered rewind using a 24V DC motor configuration instead of a hand crank.
• Q: Can this reel be used on a welding service truck?
  A: Yes, the 1125WCL Series is commonly used for welding and service truck cable management. Confirm available mounting space, power supply, cable size, and total cable length before ordering.
